F40FEHD (2011)
STEERING 2

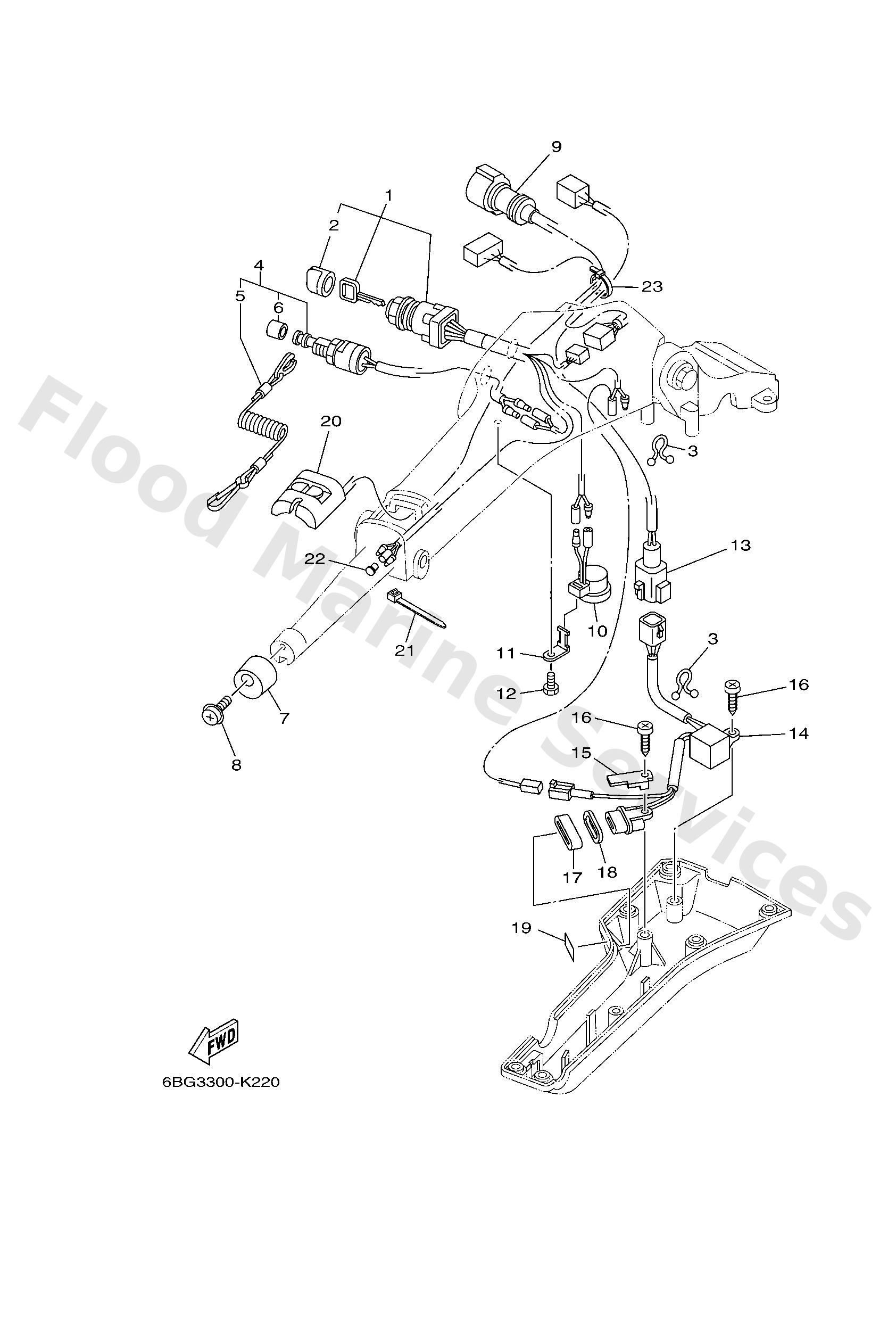

Diagram: STEERING 2
Parts List
Reference
Description
Price
1
6X48251010
Main switch assembly
Loading…
↗
2
6768257700
Cap, key
Loading…
↗
3
9046408M07
Clamp
Loading…
↗
4
69W8257500
Engine stop switch assembly
Loading…
↗
5
6828255600
Lanyard, stop switch
Loading…
↗
6
6898257Y00
Cap
Loading…
↗
7
6X44272800
Cap
Loading…
↗
8
9798006216
Screw, with washer(6h2)
Loading…
↗
9
6X48258610
Ext., wire harness (l:950mm)
Loading…
↗
10
6X48338300
Buzzer
Loading…
↗
11
6X48338600
Stay, buzzer
Loading…
↗
12
9709506014
Bolt(gj3)
Loading…
↗
13
6X48365320
Wire, lead (l: 700mm)
Loading…
↗
14
6C58430100
Pilot light assembly 1
Loading…
↗
15
6X44411400
Stopper
Loading…
↗
16
9778060620
Screw, tapping(6k8)
Loading…
↗
17
6X44272700
Grommet
Loading…
↗
18
6H48358900
Gasket
Loading…
↗
19
6X48541500
Mark, signal lamp
Loading…
↗
20
6X48186000
Switch assembly
Loading…
↗
21
9046513M97
Clamp
Loading…
↗
22
7038211900
Cover, lead wire
Loading…
↗
23
9046513M36
Clamp(6h4)
Loading…
↗
