FL115AET (2004)
STEERING 2

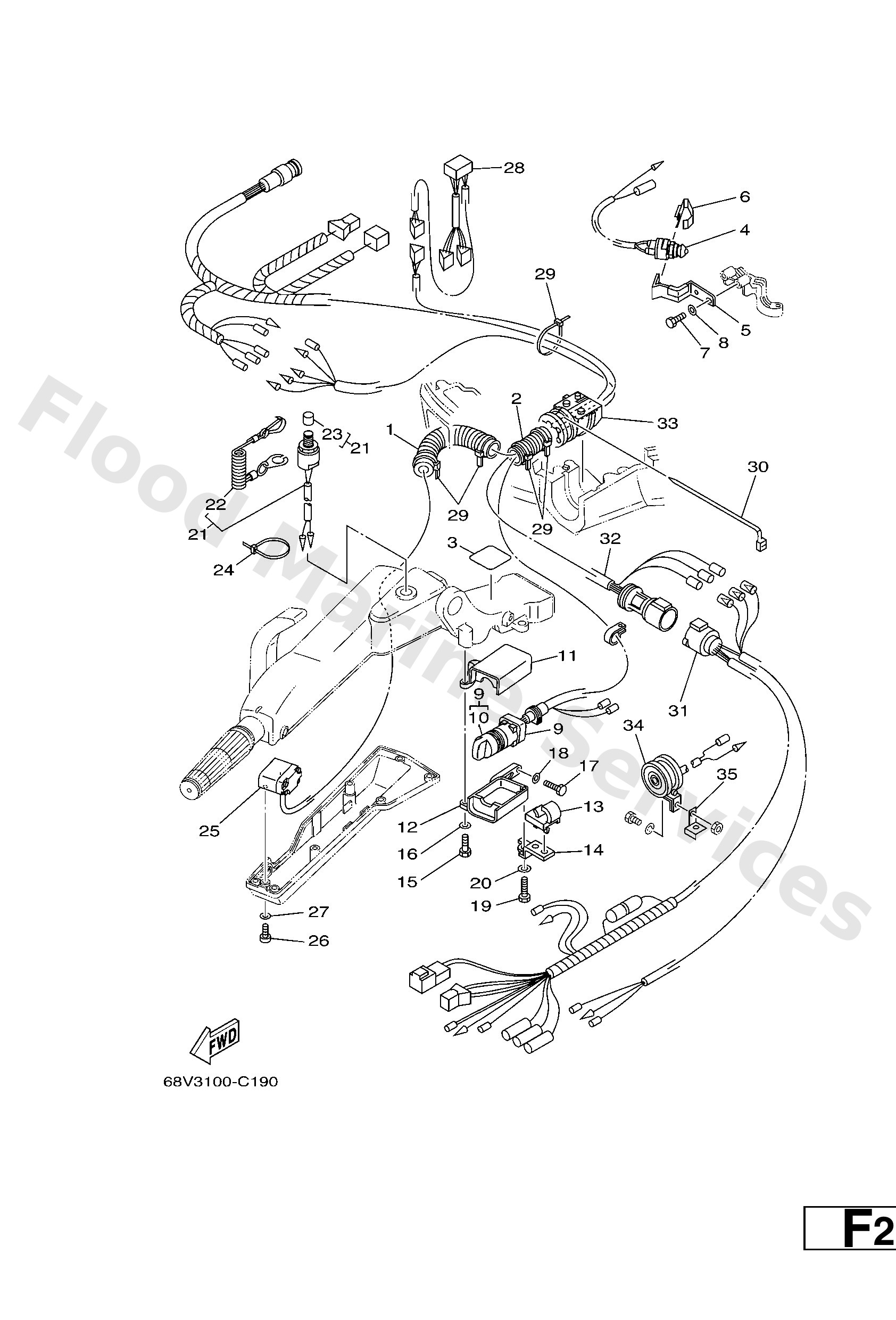

Diagram: STEERING 2
Parts List
Reference
Description
Price
1
9044624M79
AP
Hose (L230)
Loading…
↗
2
6K38355700
AP
Tube
Loading…
↗
3
67G4273500
AP
-
Loading…
↗
4
6888254011
AP
Neutral switch assembly
Loading…
↗
5
67G8255401
AP
Stay, Neutral Switch
Loading…
↗
6
62Y8255500
AP
Damper, Main Switch 1
Loading…
↗
7
9709506014
AP
Bolt(gj3)
Loading…
↗
8
9299506600
AP
Washer, plain (646)
Loading…
↗
9
67G8251050
AP
Main Switch assembly
Loading…
↗
10
6768257700
Cap, key
Loading…
↗
11
63D8252E014D
AP
Cover, main switch 1
Loading…
↗
12
63D8252F014D
AP
Cover, main switch 2
Loading…
↗
13
63D2436700
AP
Clamp, fuel pipe 2
Loading…
↗
14
63D2436400
AP
Stay
Loading…
↗
15
9709506025
AP
Bolt
Loading…
↗
17
9709506020
AP
Bolt(7u8)
Loading…
↗
19
9709506030
AP
Bolt(jf7)
Loading…
↗
21
69W8257500
AP
Engine stop switch assembly
Loading…
↗
22
6828255600
Lanyard, stop switch
Loading…
↗
23
6898257Y00
Cap
Loading…
↗
24
9046513M11
AP
Clamp (6e5)
Loading…
↗
25
67G8256300
AP
Trim & tilt switch assembly
Loading…
↗
26
9788506016
AP
Screw, pan head(6b0)
Loading…
↗
28
63D8372800
AP
Connector assembly
Loading…
↗
29
9046513M24
AP
Band, switch cord
Loading…
↗
30
9046513M30
AP
Clamp
Loading…
↗
31
6H58355312
AP
Wire, lead
Loading…
↗
32
63D8258601
AP
Extension, wire harness
Loading…
↗
33
67G4272501
AP
Grommet
Loading…
↗
34
6888338311
AP
Buzzer
Loading…
↗
35
6H58338600
AP
Stay, Buzzer
Loading…
↗
