FT50CED (2003)
STEERING 2

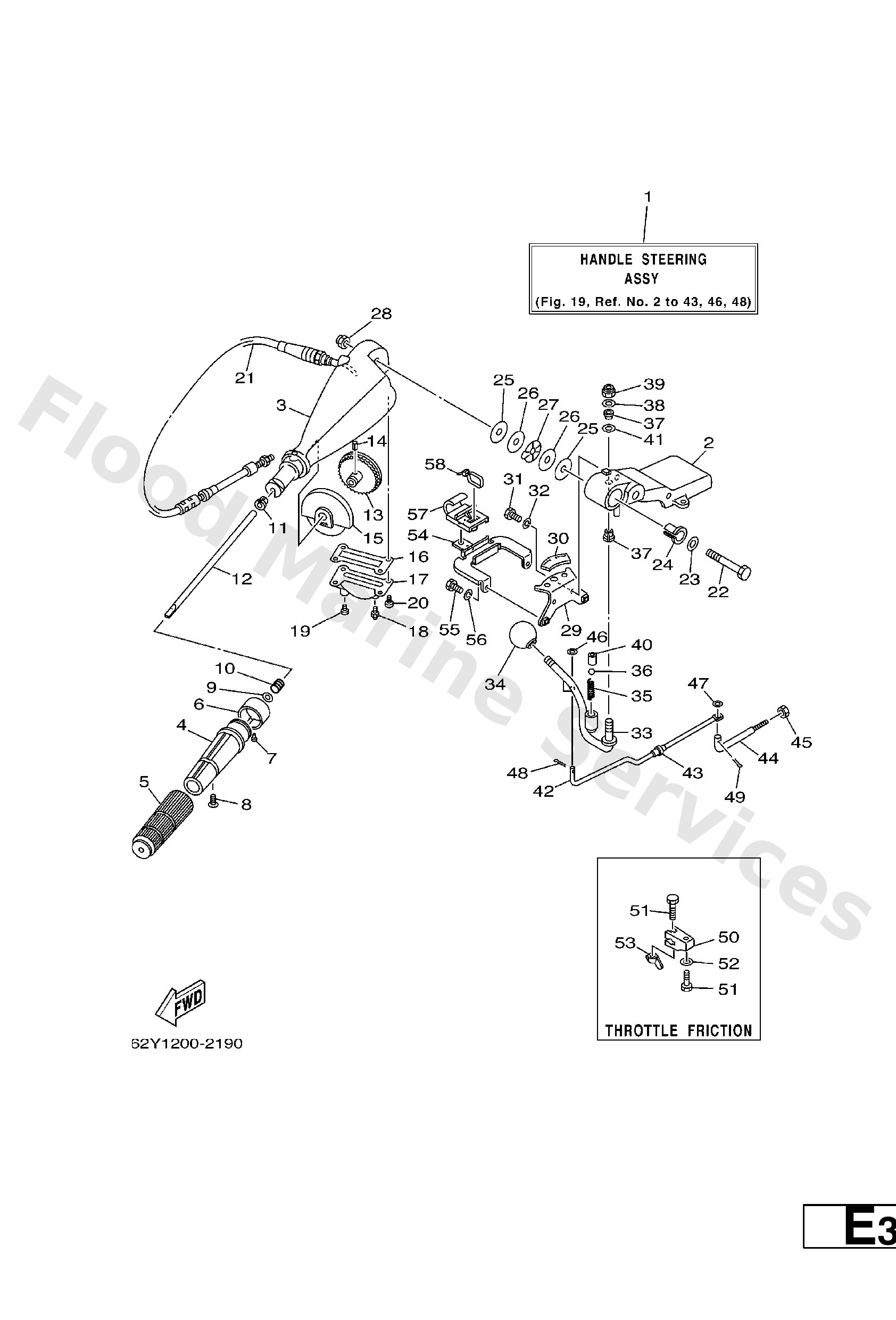

Diagram: STEERING 2
Parts List
Reference
Description
Price
4
664−42119−00
Grip, steering handle
Loading…
↗
5
6F6−42177−A0
Rubber, handle
Loading…
↗
6
6K5−42137−00
Indicator, throttle
Loading…
↗
7
90269−02M09
Rivet(6l5)
Loading…
↗
8
90149−05M13
Screw, countersunk
Loading…
↗
9
92903−10600
Washer, plate
Loading…
↗
10
90501−23215
Spring (655)
Loading…
↗
11
90386−08032
Bushing (650)
Loading…
↗
12
692−42115−00
Shaft, steering handle
Loading…
↗
13
663−42138−00
Lever, throttle
Loading…
↗
14
90254−03003
Pin, spring
Loading…
↗
15
692−42135−00
Housing, throttle lever
Loading…
↗
16
663−42133−01
Gasket
Loading…
↗
18
93700−06M03
Nipple, grease(6a1)
Loading…
↗
19
97885−06008
Screw, pan head(6a3)
Loading…
↗
20
97885−05012
Screw,pan head (646)
Loading…
↗
21
692−26301−03
Throttle cable assembly
Loading…
↗
22
90101−12M06
Bolt
Loading…
↗
23
92990−12200
Ybs66-12 washer,plain
Loading…
↗
24
90386−12089
Bushing(663)
Loading…
↗
25
90202−12092
Washer, plate(663)
Loading…
↗
26
90201−12537
Washer, plate(663)
Loading…
↗
27
90206−12054
Washer, wave(663)
Loading…
↗
28
90185−12058
Nut, nylon(663)
Loading…
↗
29
64J−44113−00
Cam Plate, Handle
Loading…
↗
30
6K5−44191−00
Indicator,shift
Loading…
↗
31
97013−06016
Bolt, hexagon deep recess
Loading…
↗
32
92903−06100
Washer(6a1)
Loading…
↗
33
692−44159−01
Handle, gear shift 2
Loading…
↗
34
663−44173−00
Lever, shift control
Loading…
↗
35
90501−16M17
Spring (697)
Loading…
↗
36
93515−32M01
Ball (697)
Loading…
↗
37
90386−10009
Bushing 6484418600
Loading…
↗
38
90201−10120
Washer, plate
Loading…
↗
39
90185−10051
Nut, self-locking
Loading…
↗
40
90387−12M30
Coller (697)
Loading…
↗
41
90201−12M34
Washer (692)
Loading…
↗
42
64J−42191−00
19 −
Loading…
↗
43
90386−06088
Bushing(663)
Loading…
↗
44
64J−42192−00
19 −
Loading…
↗
45
700−48339−00
Nut,cable end
Loading…
↗
46
92990−06600
Washer, plain (646)
Loading…
↗
48
91490−25012
Pin, cotter
Loading…
↗
50
663−42126−01
Friction, steering handle
Loading…
↗
51
90101−06M27
Bolt
Loading…
↗
53
90175−06003
Nut, wing (f87)
Loading…
↗
54
64J−24364−00
Stay
Loading…
↗
57
63D−24367−00
Clamp, fuel pipe 2
Loading…
↗
58
90465−13M39
Clamp(6e8)
Loading…
↗
