40XMH (2025)
STEERING FRICTION

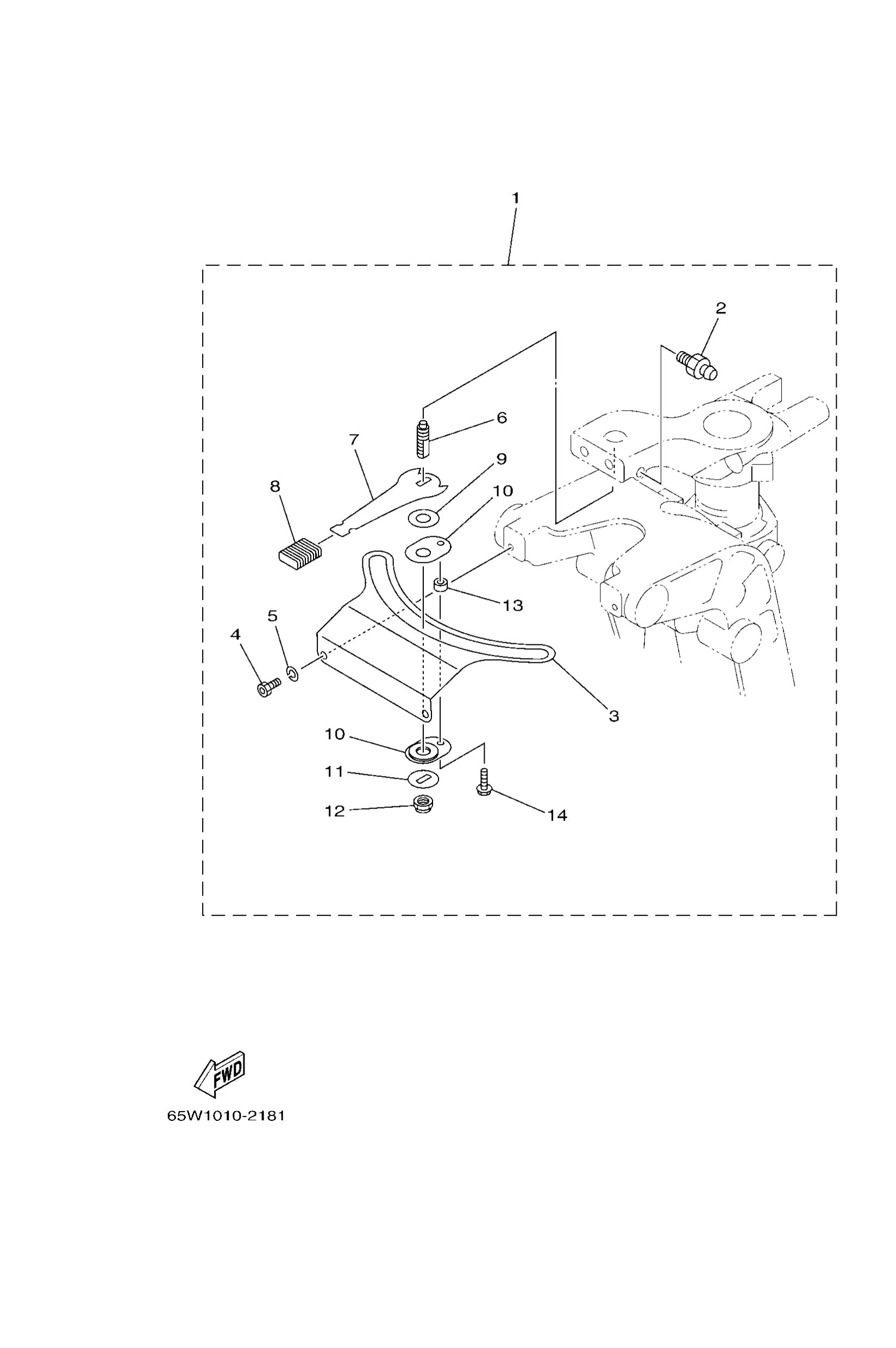

Diagram: STEERING FRICTION
Parts List
Reference
Description
Price
1
65W4250802
E40XMH
Steering Friction assembly
Loading…
↗
2
9370006004
Nipple, grease(6a1)
Loading…
↗
3
65W4252700
Plate, friction
Loading…
↗
4
9010906M88
Bolt(61a)
Loading…
↗
5
9299006100
Washer(6a1)
Loading…
↗
6
65W4256200
Shaft, steering lock
Loading…
↗
7
65W4256100
Knob, steering lock
Loading…
↗
8
6894363301
Cover, tilt lever
Loading…
↗
9
9020210M56
Washer, plate
Loading…
↗
10
65W4252800
Plate, friction
Loading…
↗
11
9020910M26
Washer
Loading…
↗
12
9018510M14
Nut, self-locking
Loading…
↗
13
9038705054
Collar
Loading…
↗
14
9010905M89
Bolt, with washer
Loading…
↗
