Yamaha Outboard Parts - STEERING FRICTION - E40XWH (2003) | Flood Marine

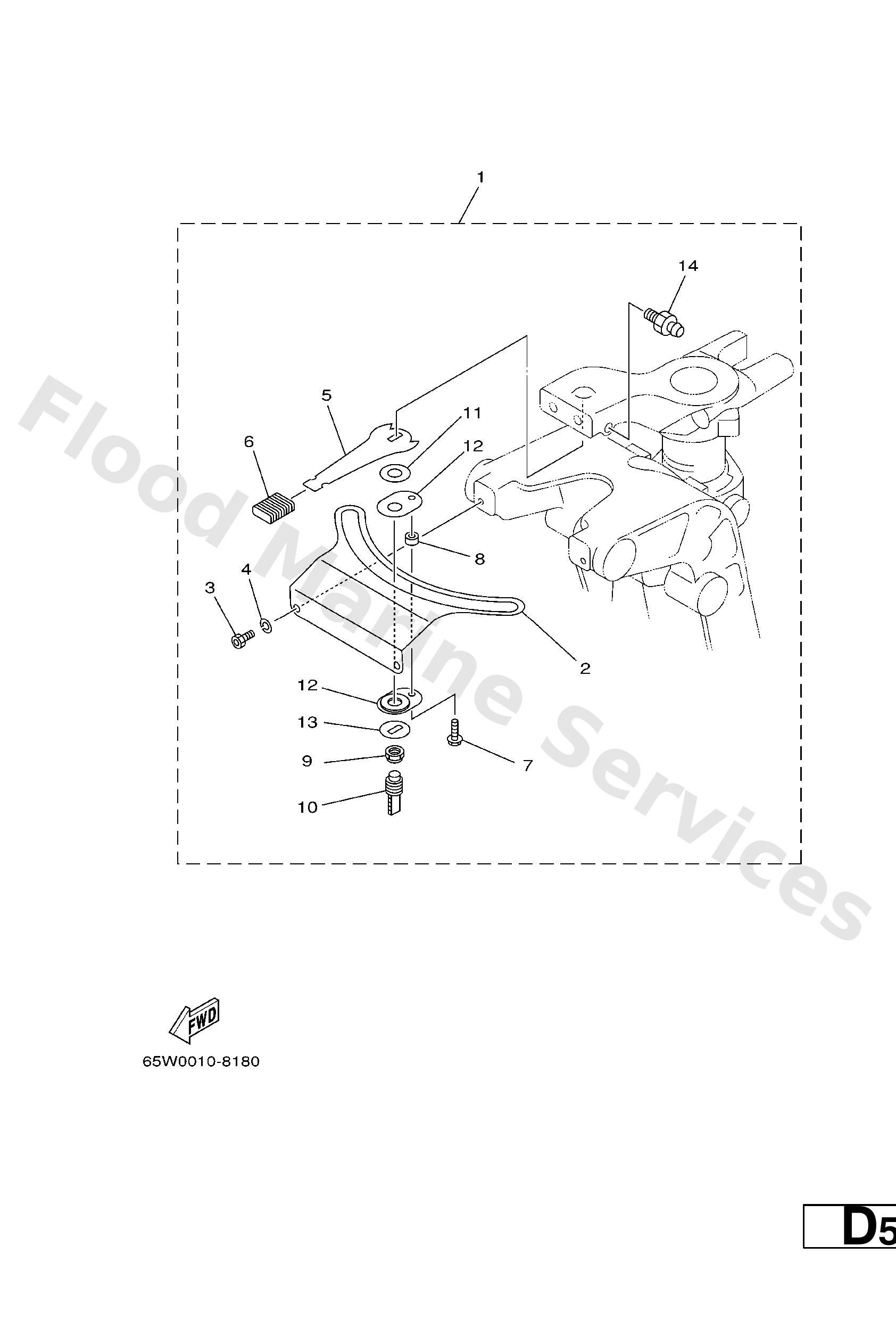

Diagram: STEERING FRICTION

Diagram

Parts List

Reference
Description
Price


1
65W−42508−00
Steering friction assembly
Loading…

↗
2
65W−42527−00
Plate, friction
Loading…

↗
3
90109−06M50
Bolt(61a)
Loading…

↗
4
92990−06100
Washer(6a1)
Loading…

↗
5
65W−42561−00
Knob, steering lock
Loading…

↗
6
689−43633−00
Cover, tilt lever
Loading…

↗
7
97595−05516
Bolt, with washer
Loading…

↗
8
90387−05M11
Collar
Loading…

↗
9
90185−10M14
Nut, self-locking
Loading…

↗
10
65W−42562−00
Shaft, steering lock
Loading…

↗
11
90202−10M56
Washer, plate
Loading…

↗
12
65W−42528−00
Plate, friction
Loading…

↗
13
90209−10M26
Washer
Loading…

↗
14
93700−06M03
Nipple, grease(6a1)
Loading…

↗
