F9.9JMH (2017)
STEERING FRICTION

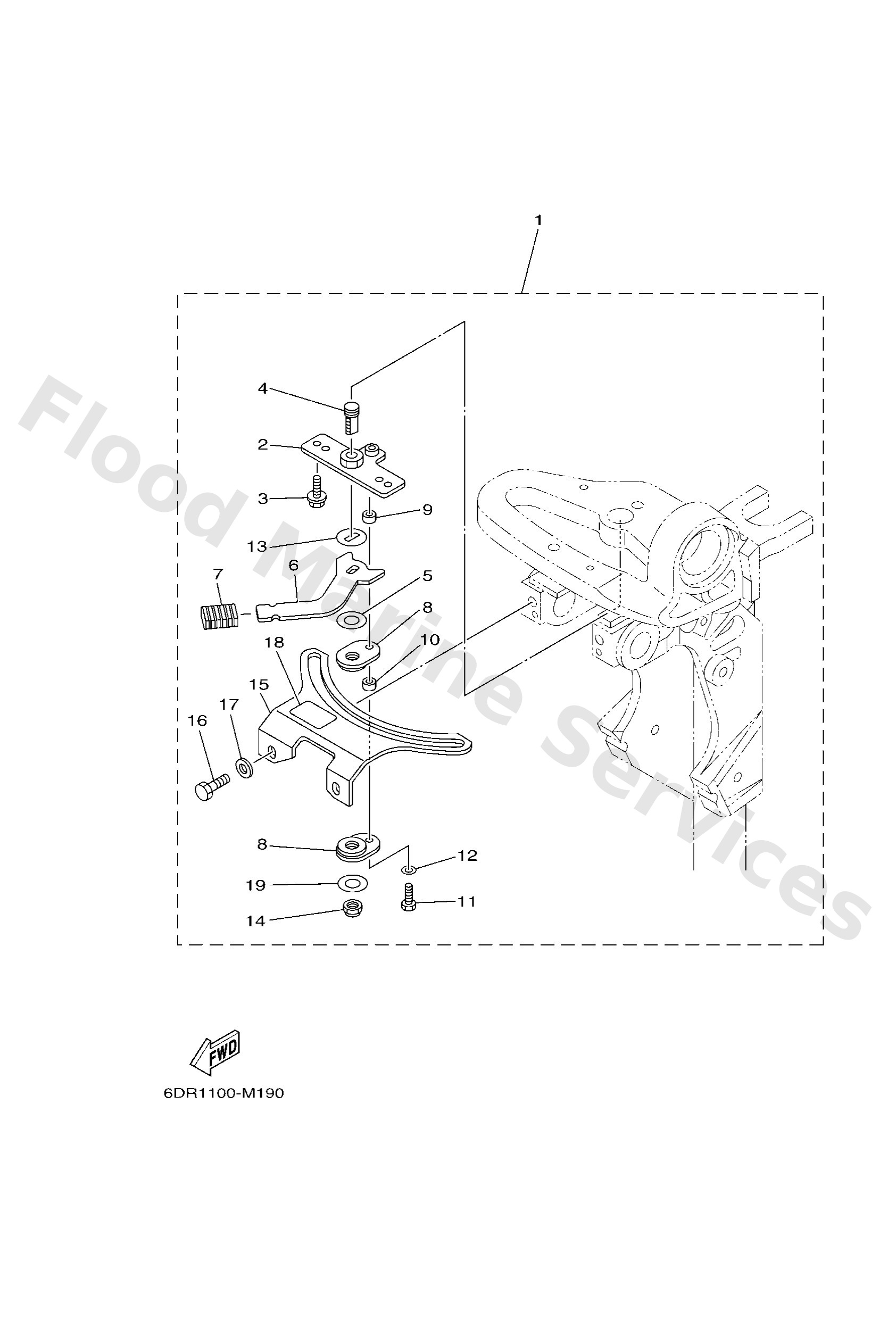

Diagram: STEERING FRICTION
Parts List
Reference
Description
Price
1
6AH4250801
Steering friction assembly
Loading…
↗
2
68T4252501
Plate, friction
Loading…
↗
3
9011905018
Bolt, with washer
Loading…
↗
4
67C4256200
Shaft, steering lock
Loading…
↗
5
9020210M56
Washer, plate
Loading…
↗
6
68T4256100
Knob, steering lock
Loading…
↗
7
6894363300
Cover, tilt lever
Loading…
↗
8
65W4252800
Plate, friction
Loading…
↗
9
9038705053
Collar
Loading…
↗
10
9038705054
Collar
Loading…
↗
11
9709505020
Bolt, hexagon
Loading…
↗
12
9299505600
Washer, plain (646)
Loading…
↗
13
9020910M26
Washer
Loading…
↗
14
9018510M14
Nut, self-locking
Loading…
↗
15
6AH4252700
Plate, friction
Loading…
↗
16
9010108022
Bolt, hexagon deep recess
Loading…
↗
17
9020108065
Washer, plate
Loading…
↗
18
68T4315500
Mark 1
Loading…
↗
19
90201106M5
Washer, plate(3gm)
Loading…
↗
