Yamaha Outboard Parts - STEERING FRICTION - FL115AET (2002) | Flood Marine

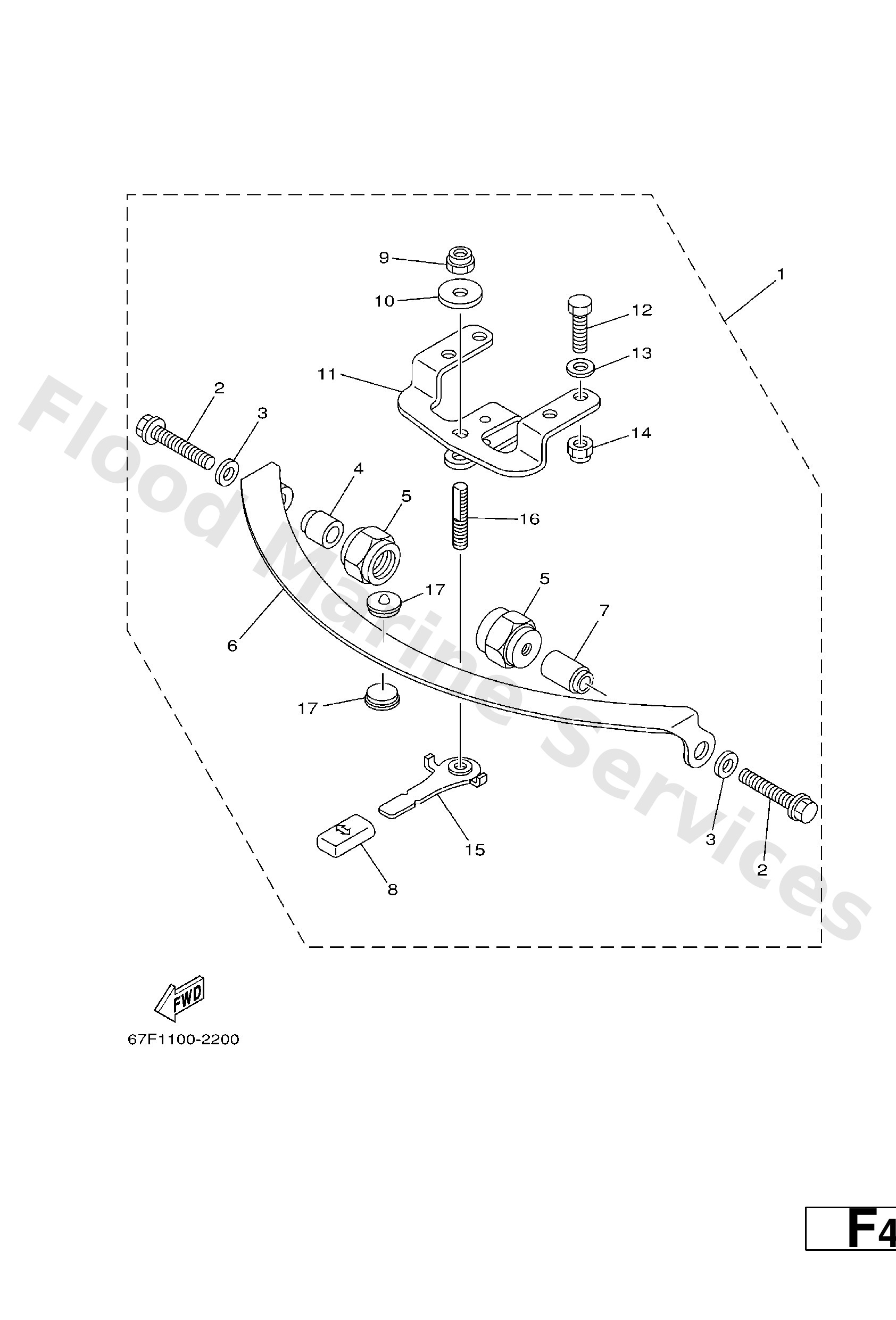

Diagram: STEERING FRICTION

Diagram

Parts List

Reference
Description
Price


1
67G−42508−00 AP
Steering friction assembly
Loading…

↗
2
90119−08M74
Bolt, with washer(61a)
Loading…

↗
3
90201−08M01
Washer, plate(6l2)
Loading…

↗
4
67G−42541−00
Pipe 1
Loading…

↗
5
67G−42546−00
Nut
Loading…

↗
6
63D−42527−00
Plate, friction
Loading…

↗
7
67G−42541−10
Pipe 1
Loading…

↗
8
682−43318−01
Cover
Loading…

↗
9
90185−10M14
Nut, self-locking
Loading…

↗
10
90201−10M76
Washer, plate (6e5)
Loading…

↗
11
67G−42526−00
20 −
Loading…

↗
12
97095−08025
Bolt (62g)
Loading…

↗
13
92995−08600
Washer, plain (663)
Loading…

↗
14
90185−08057
Nut, nylon (6j8)
Loading…

↗
15
67G−42561−00
Knob, steering lock
Loading…

↗
16
67G−42562−00
Shaft, steering lock
Loading…

↗
17
63D−42528−00
Plate, friction
Loading…

↗
