Yamaha Outboard Parts - STEERING FRICTION - FT9.9DMH (2003) | Flood Marine

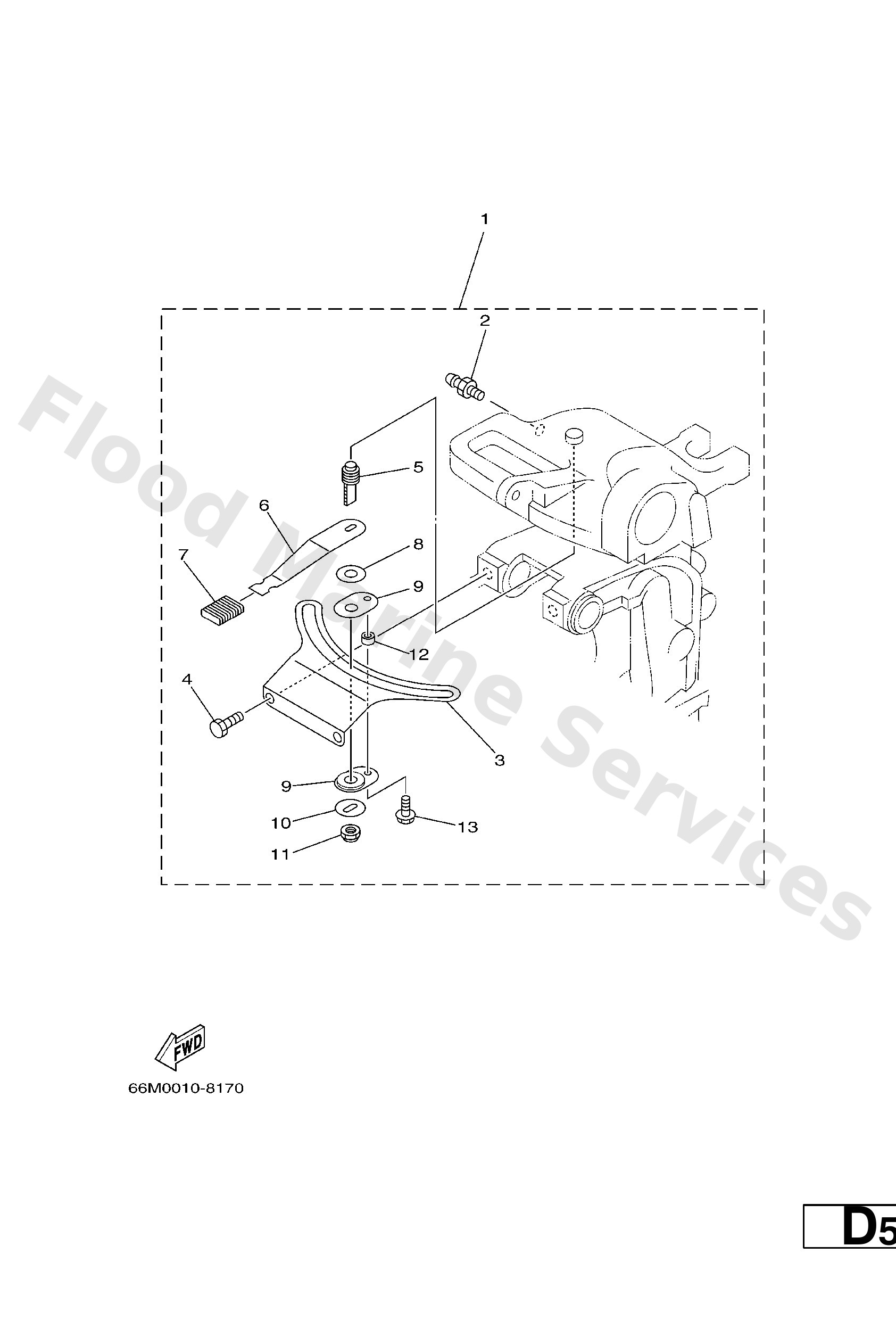

Diagram: STEERING FRICTION

Diagram

Parts List

Reference
Description
Price


1
66M−42508−01
Steering friction assembly
Loading…

↗
2
93700−06M03
Nipple, grease(6a1)
Loading…

↗
3
66M−42527−00
Plate, friction
Loading…

↗
4
90109−08M91
Bolt, hexagon deep recess
Loading…

↗
5
65W−42562−00
Shaft, steering lock
Loading…

↗
6
66M−42561−00
Knob, Steering Lock
Loading…

↗
7
689−43633−00
Cover, tilt lever
Loading…

↗
8
90202−10M56
Washer, plate
Loading…

↗
9
65W−42528−00
Plate, friction
Loading…

↗
10
90209−10M26
Washer
Loading…

↗
11
90185−10M14
Nut, self-locking
Loading…

↗
12
90387−05M11
Collar
Loading…

↗
13
90119−05M03
Bolt, With Washer
Loading…

↗
