FT9.9DMH (2004)
STEERING FRICTION

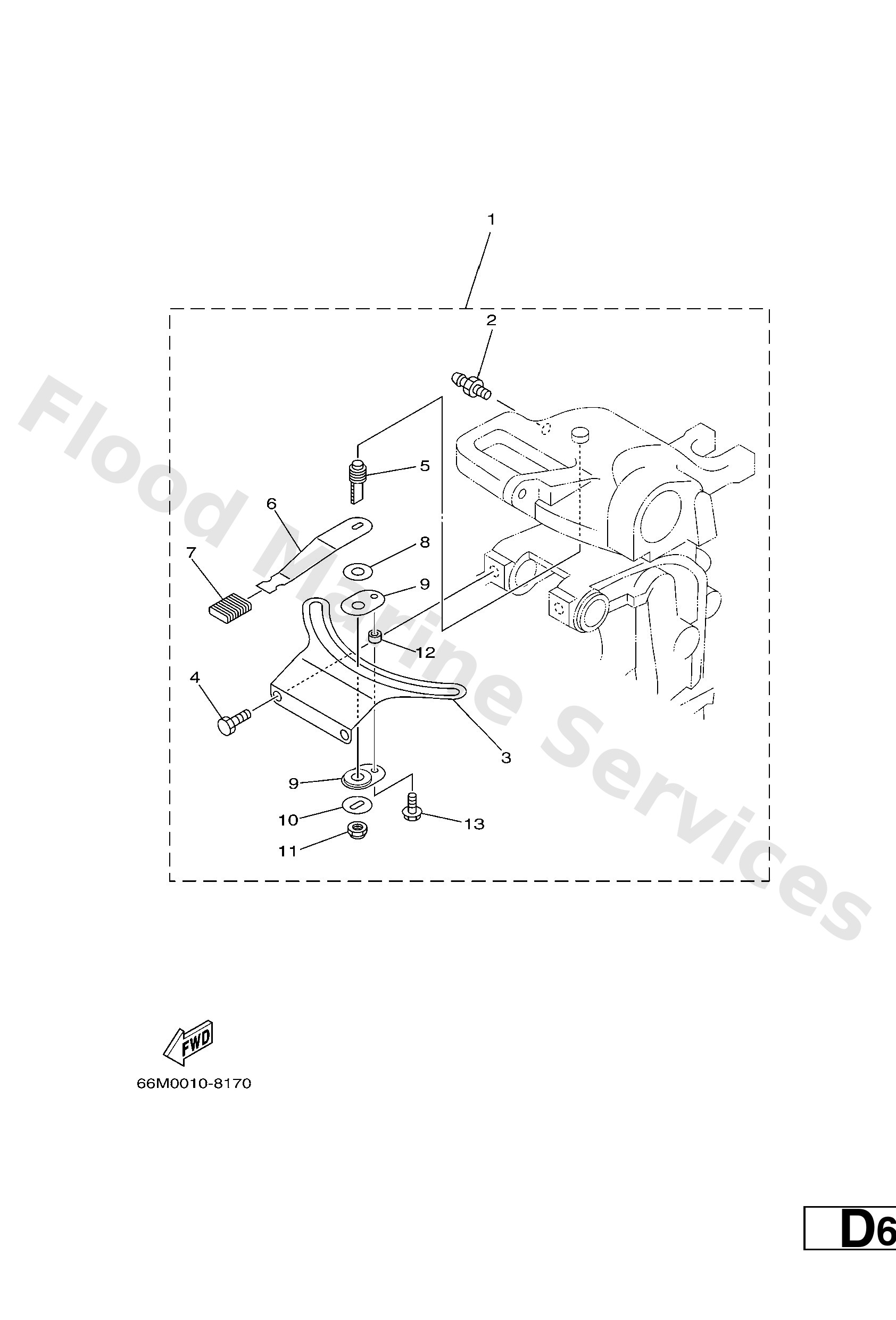

Diagram: STEERING FRICTION
Parts List
Reference
Description
Price
1
66M4250801
Steering friction assembly
Loading…
↗
2
9370006M03
Nipple, grease(6a1)
Loading…
↗
3
66M4252700
Plate, friction
Loading…
↗
4
9010908M91
Bolt, hexagon deep recess
Loading…
↗
5
65W4256200
Shaft, steering lock
Loading…
↗
6
66M4256100
Knob, Steering Lock
Loading…
↗
7
6894363300
Cover, tilt lever
Loading…
↗
8
9020210M56
Washer, plate
Loading…
↗
9
65W4252800
Plate, friction
Loading…
↗
10
9020910M26
Washer
Loading…
↗
11
9018510M14
Nut, self-locking
Loading…
↗
12
9038705M11
Collar
Loading…
↗
13
9011905M03
Bolt, With Washer
Loading…
↗
