Yamaha Outboard Parts - STEERING FRICTION 1 - FT50CED (2003) | Flood Marine

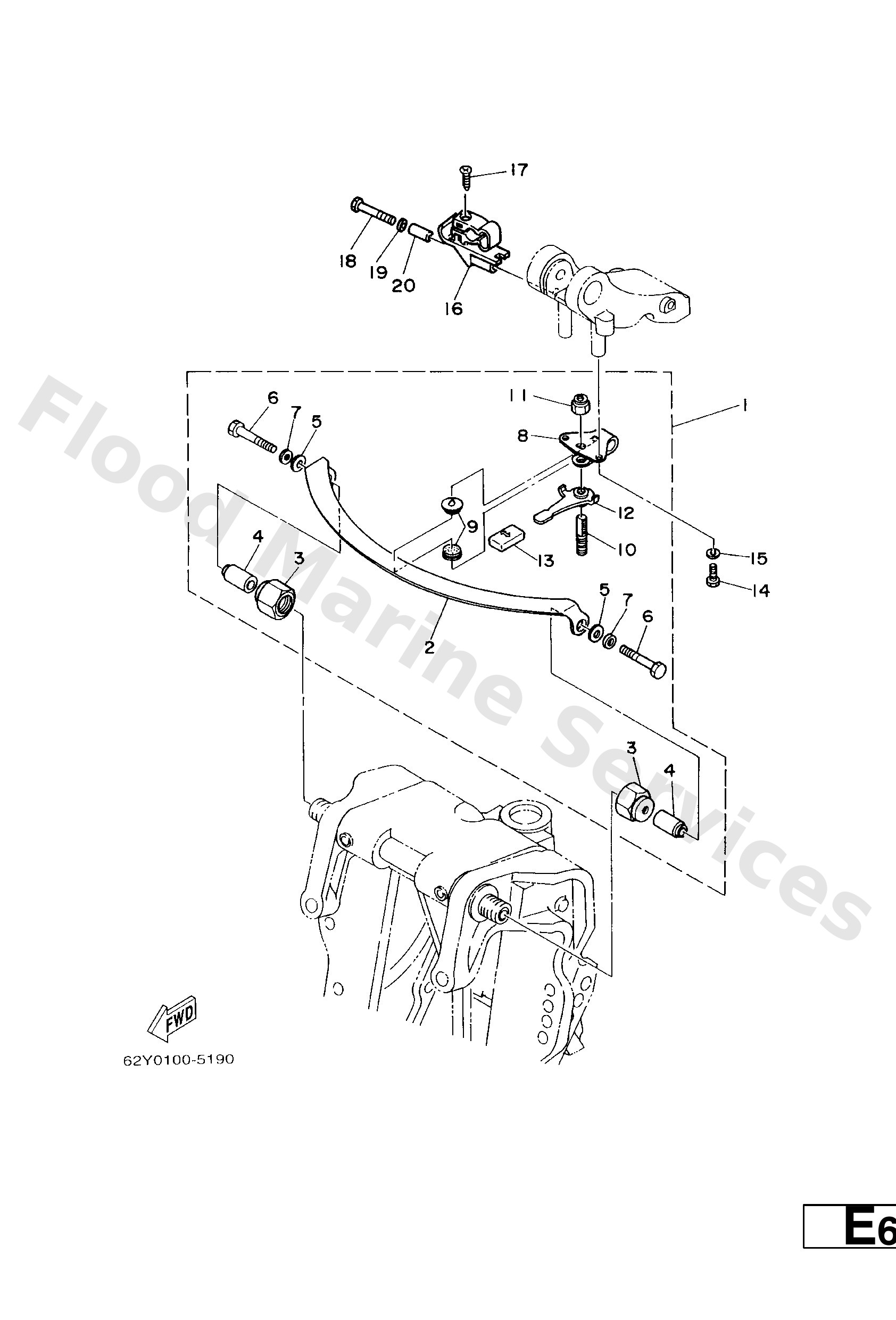

Diagram: STEERING FRICTION 1

Diagram

Parts List

Reference
Description
Price


1
63D−42508−00
Steering friction assembly
Loading…

↗
2
63D−42527−00
Plate, friction
Loading…

↗
3
63D−42546−00
Nut
Loading…

↗
4
63D−42541−00
Pipe 1
Loading…

↗
5
90201−08M01
Washer, plate(6l2)
Loading…

↗
6
97095−08050
Bolt (62k)
Loading…

↗
7
92995−08600
Washer, plain (663)
Loading…

↗
8
63D−42526−00
Plate, friction
Loading…

↗
9
63D−42528−00
Plate, friction
Loading…

↗
10
63D−42562−00
Steering bracket assembly
Loading…

↗
11
90185−10M01
Nut, self-locking(62x)
Loading…

↗
12
63D−42561−00
Knob, steering lock
Loading…

↗
13
682−43318−01
Cover
Loading…

↗
14
97095−06016
Bolt, hexagon deep recess
Loading…

↗
15
92995−06100
Washer(6a1)
Loading…

↗
16
62Y−82361−00
Clamp, cord
Loading…

↗
17
90161−06M03
Screw, tapping(6e7)
Loading…

↗
18
97095−06035
Bolt(j52)
Loading…

↗
19
92995−06600
Washer, plain (646)
Loading…

↗
20
90387−06M26
Collar(61n)
Loading…

↗
