Rigging - Steering (2024)
STEERING FRICTION 5

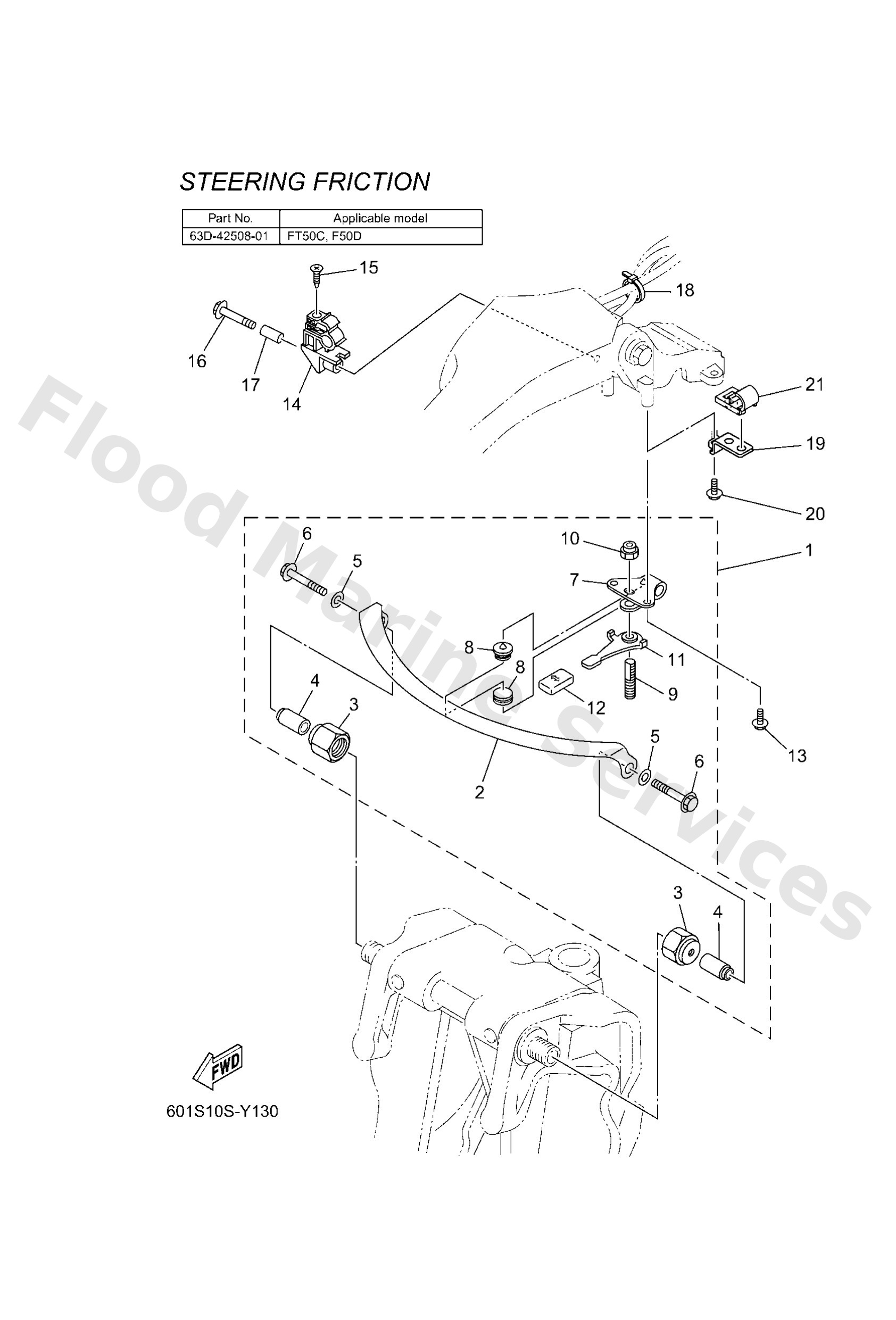

Diagram: STEERING FRICTION 5
Parts List
Reference
Description
Price
1
63D4250801
Steering friction assembly
Loading…
↗
2
63D4252700
Plate, friction
Loading…
↗
3
63D4254600
Nut
Loading…
↗
4
63D4254100
Pipe 1
Loading…
↗
5
9020108M01
Washer, plate(6l2)
Loading…
↗
6
97E9508550
Bolt, hexagon w/w deep recess
Loading…
↗
7
63D4252600
Plate, friction
Loading…
↗
8
63D4252800
Plate, friction
Loading…
↗
9
63D4256200
Steering bracket assembly
Loading…
↗
10
9018510M01
Nut, self-locking(62x)
Loading…
↗
11
63D4256100
Knob, steering lock
Loading…
↗
12
6824331801
Cover
Loading…
↗
13
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
14
63D8236100
Clamp, cord
Loading…
↗
15
9016106M00
Screw, tapping(6e7)
Loading…
↗
16
97E9506535
Bolt, hexagon w/w deep recess
Loading…
↗
17
9038706M26
Collar(61n)
Loading…
↗
18
9046513M36
Clamp(6h4)
Loading…
↗
19
63D2436410
Stay
Loading…
↗
21
63D2436700
Clamp, fuel pipe 2
Loading…
↗
