RIGGING - STEERING (2011)
STEERING FRICTION 9

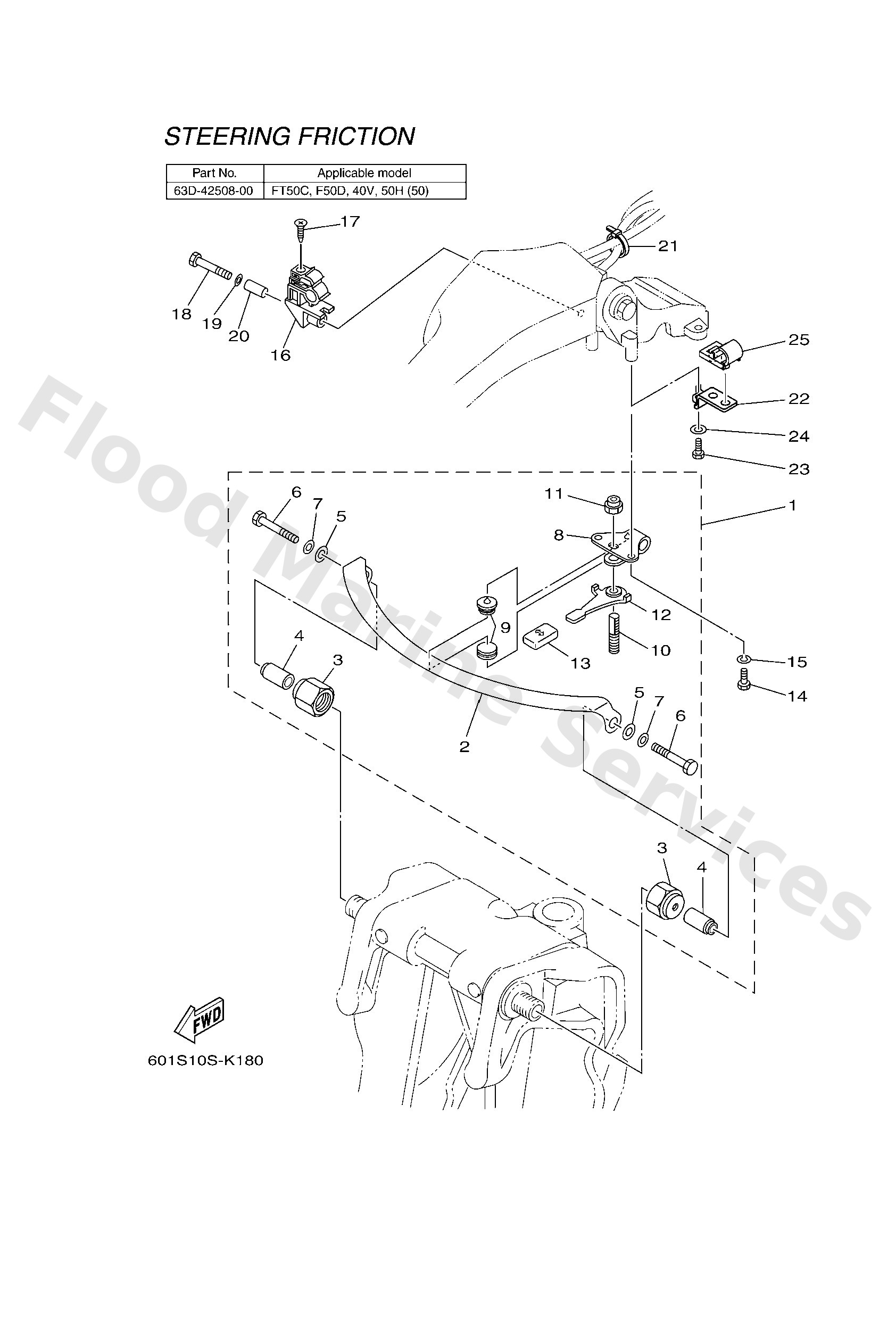

Diagram: STEERING FRICTION 9
Parts List
Reference
Description
Price
1
63D4250800
Steering friction assembly
Loading…
↗
2
63D4252700
Plate, friction
Loading…
↗
3
63D4254600
Nut
Loading…
↗
4
63D4254100
Pipe 1
Loading…
↗
5
9020108M01
Washer, plate(6l2)
Loading…
↗
6
9709508050
Bolt (62k)
Loading…
↗
7
9299008600
Washer, plain (663)
Loading…
↗
8
63D4252600
Plate, friction
Loading…
↗
9
63D4252800
Plate, friction
Loading…
↗
10
63D4256200
Steering bracket assembly
Loading…
↗
11
9018510M01
Nut, self-locking(62x)
Loading…
↗
12
63D4256100
Knob, steering lock
Loading…
↗
13
6824331801
Cover
Loading…
↗
14
9709506016
Bolt, hexagon deep recess
Loading…
↗
15
9299506100
Washer(6a1)
Loading…
↗
16
63D8236100
Clamp, cord
Loading…
↗
17
9016106M00
Screw, tapping(6e7)
Loading…
↗
18
9709506035
Bolt(j52)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9038706M26
Collar(61n)
Loading…
↗
21
9046513M36
Clamp(6h4)
Loading…
↗
22
63D2436410
Stay
Loading…
↗
25
63D2436700
Clamp, fuel pipe 2
Loading…
↗
