Yamaha Outboard Parts - STEERING GUIDE - 15FWC (2002) | Flood Marine

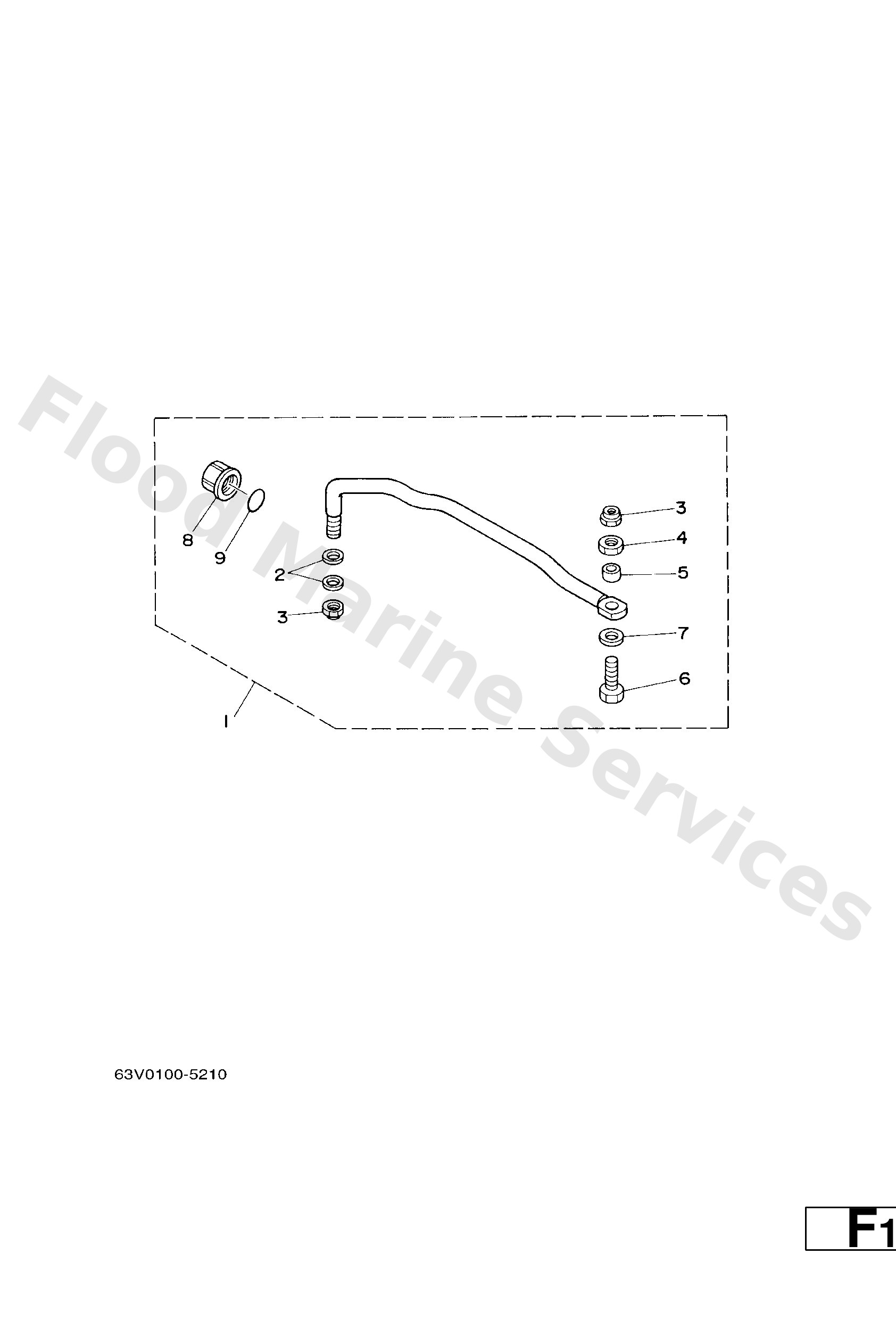

Diagram: STEERING GUIDE

Diagram

Parts List

Reference
Description
Price


1
63V--61350--00 AP
Steering guide attachment kit
Loading…

↗
2
90201--10M20
Washer, plate (663)
Loading…

↗
3
90185--09M01
Nut, nylon (663)
Loading…

↗
4
90170--09M03
Nut (689)
Loading…

↗
5
90387--10M42
Coller (688)
Loading…

↗
6
6E5--61355--00
Bolt
Loading…

↗
7
90201--10M63
Washer, plate
Loading…

↗
8
6E5--43145--01
Cap, clamp bracket
Loading…

↗
9
93210--16275
O-ring
Loading…

↗
