E40XMH (2002)
STEERING GUIDE

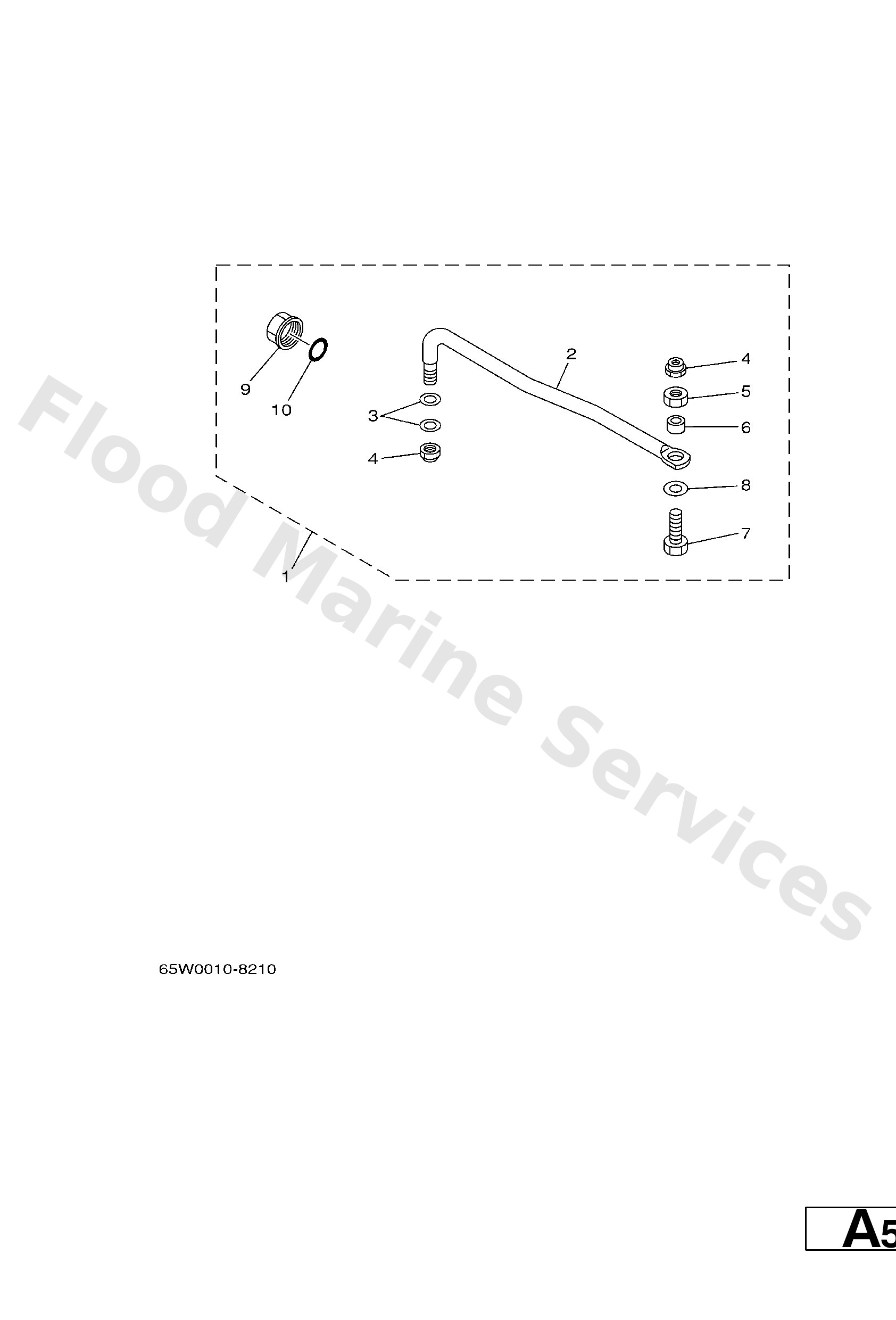

Diagram: STEERING GUIDE
Parts List
Reference
Description
Price
1
65W--61350--00
AP
Steering guide attachment kit
Loading…
↗
2
65W--61351--00
Rod, steering link
Loading…
↗
3
90201--10M20
Washer, plate (663)
Loading…
↗
4
90185--09M01
Nut, nylon (663)
Loading…
↗
5
90170--09M03
Nut (689)
Loading…
↗
6
90387--10M42
Coller (688)
Loading…
↗
7
90101--09M01
Bolt(62x)
Loading…
↗
8
90201--10M63
Washer, plate
Loading…
↗
9
6E5--43145--01
Cap, clamp bracket
Loading…
↗
10
93210--16275
O-ring
Loading…
↗
