F15AMH (2003)
STEERING GUIDE

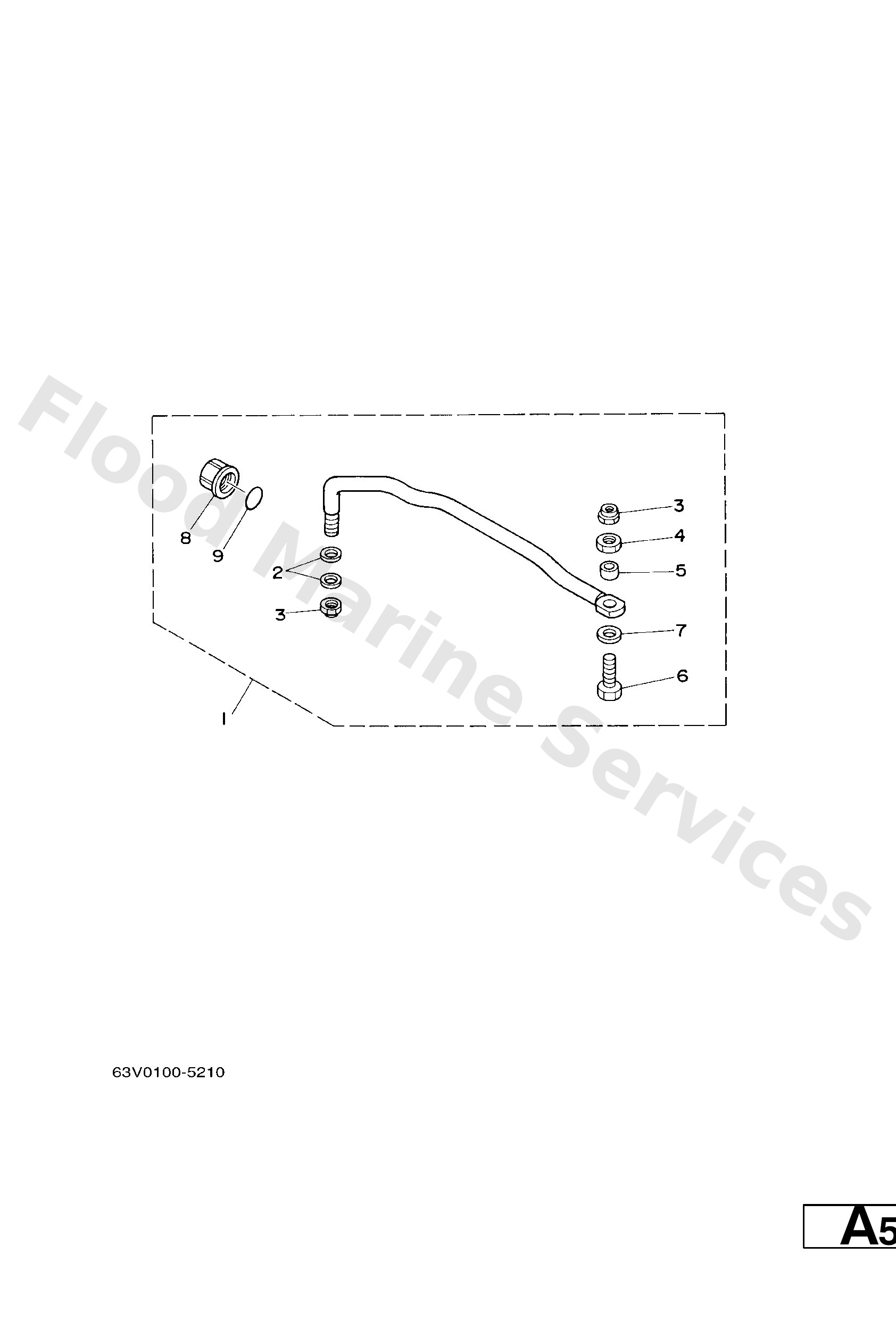

Diagram: STEERING GUIDE
Parts List
Reference
Description
Price
1
63V−61350−00
AP
Steering guide attachment kit
Loading…
↗
2
90201−10M20
Washer, plate (663)
Loading…
↗
3
90185−09M01
Nut, nylon (663)
Loading…
↗
4
90170−09M03
Nut (689)
Loading…
↗
5
90387−10M42
Coller (688)
Loading…
↗
6
6E5−61355−00
Bolt
Loading…
↗
7
90201−10M63
Washer, plate
Loading…
↗
8
6E5−43145−01
Cap, clamp bracket
Loading…
↗
9
93210−16275
O-ring
Loading…
↗
