F25AMH (2003)
STEERING GUIDE

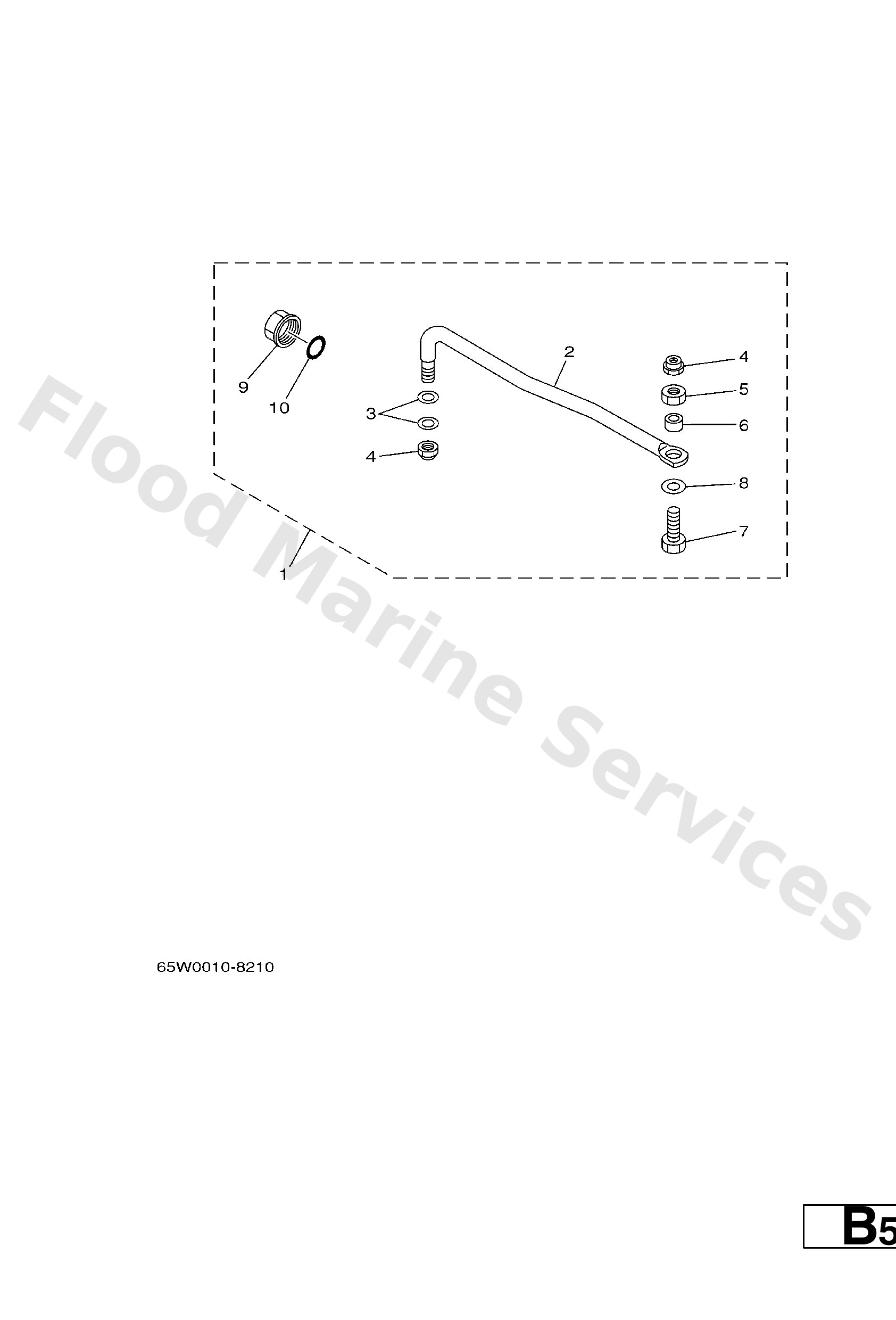

Diagram: STEERING GUIDE
Parts List
Reference
Description
Price
1
65W−61350−00
AP
Steering guide attachment kit
Loading…
↗
2
65W−61351−00
Rod, steering link
Loading…
↗
3
90201−10M20
Washer, plate (663)
Loading…
↗
4
90185−09M01
Nut, nylon (663)
Loading…
↗
5
90170−09M03
Nut (689)
Loading…
↗
6
90387−10M42
Coller (688)
Loading…
↗
7
90101−09M01
Bolt(62x)
Loading…
↗
8
90201−10M63
Washer, plate
Loading…
↗
9
6E5−43145−01
Cap, clamp bracket
Loading…
↗
10
93210−16275
O-ring
Loading…
↗
