FL115BET (2020)
STEERING GUIDE

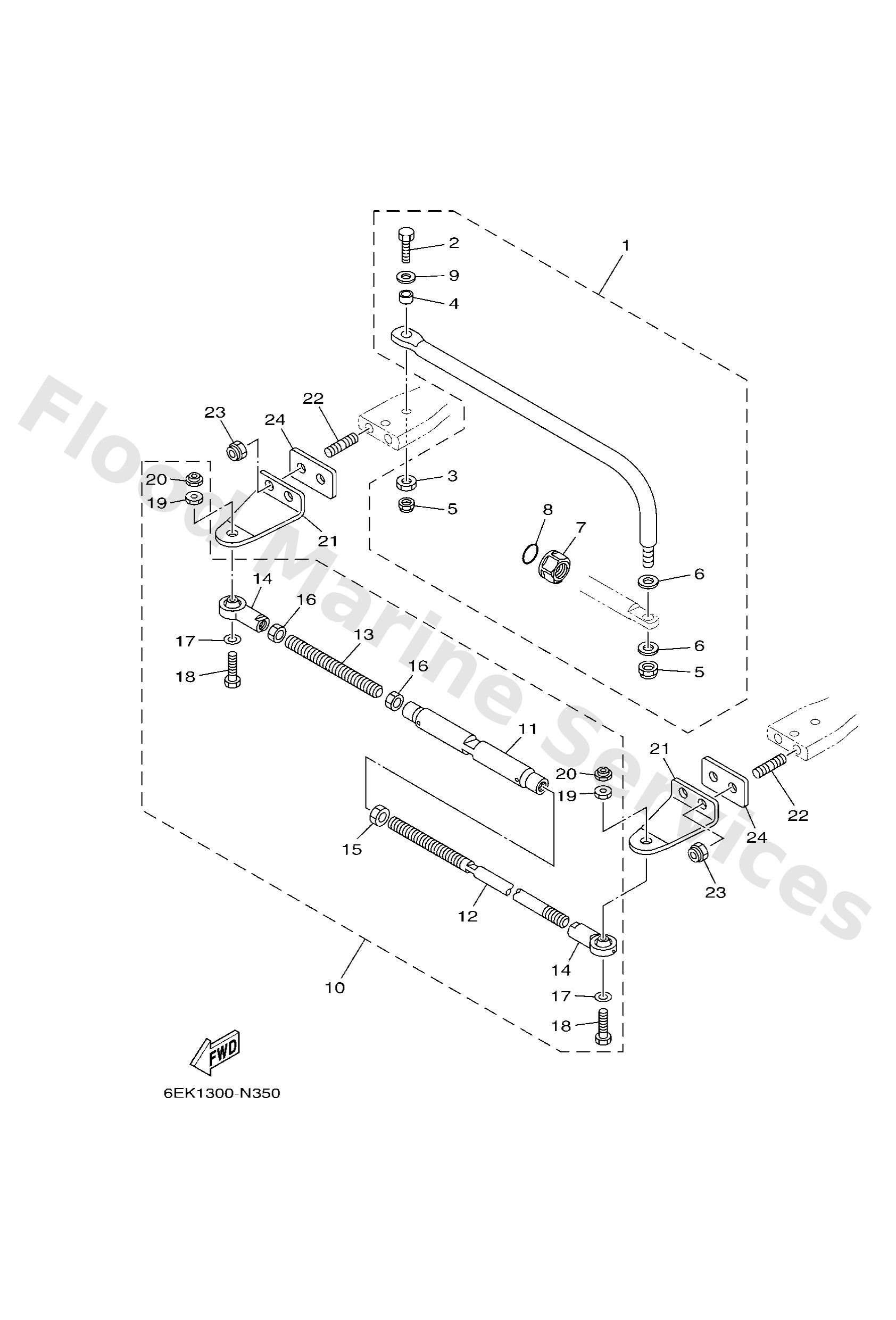

Diagram: STEERING GUIDE
Parts List
Reference
Description
Price
1
6EK6135000
AP
Steering guide attachment kit
Loading…
↗
2
6E56135500
Bolt
Loading…
↗
3
9017009M03
Nut (689)
Loading…
↗
4
9038710M42
Coller (688)
Loading…
↗
5
9018509M01
Nut, nylon (663)
Loading…
↗
6
9020110M20
Washer, plate (663)
Loading…
↗
7
6E54314501
Cap, clamp bracket
Loading…
↗
8
9321016275
O-ring
Loading…
↗
9
9020110081
Washer, plate
Loading…
↗
10
6E56130101
AP
Tie bar assembly (l:600-800mm)
Loading…
↗
11
6E56131300
Adjuster
Loading…
↗
12
6E56131111
Tie bar
Loading…
↗
13
6E56131500
Tie bar, 2
Loading…
↗
14
6E56130301
Steering axle comp.
Loading…
↗
15
9017014M06
Nut (6e5)
Loading…
↗
16
9538014700
Nut (6e5)
Loading…
↗
17
9020110M76
Washer, plate (6e5)
Loading…
↗
18
9010109M70
Bolt (6e5)
Loading…
↗
19
9017009M05
Nut, hexagon (6e5)
Loading…
↗
21
6884851102
AP
Hook, steering
Loading…
↗
22
9011610063
AP
Bolt, stud
Loading…
↗
23
9018510027
AP
Nut, self-locking
Loading…
↗
24
6EK4212100
AP
Bracket
Loading…
↗
