Yamaha Outboard Parts - STEERING GUIDE - FT60BET (2003) | Flood Marine

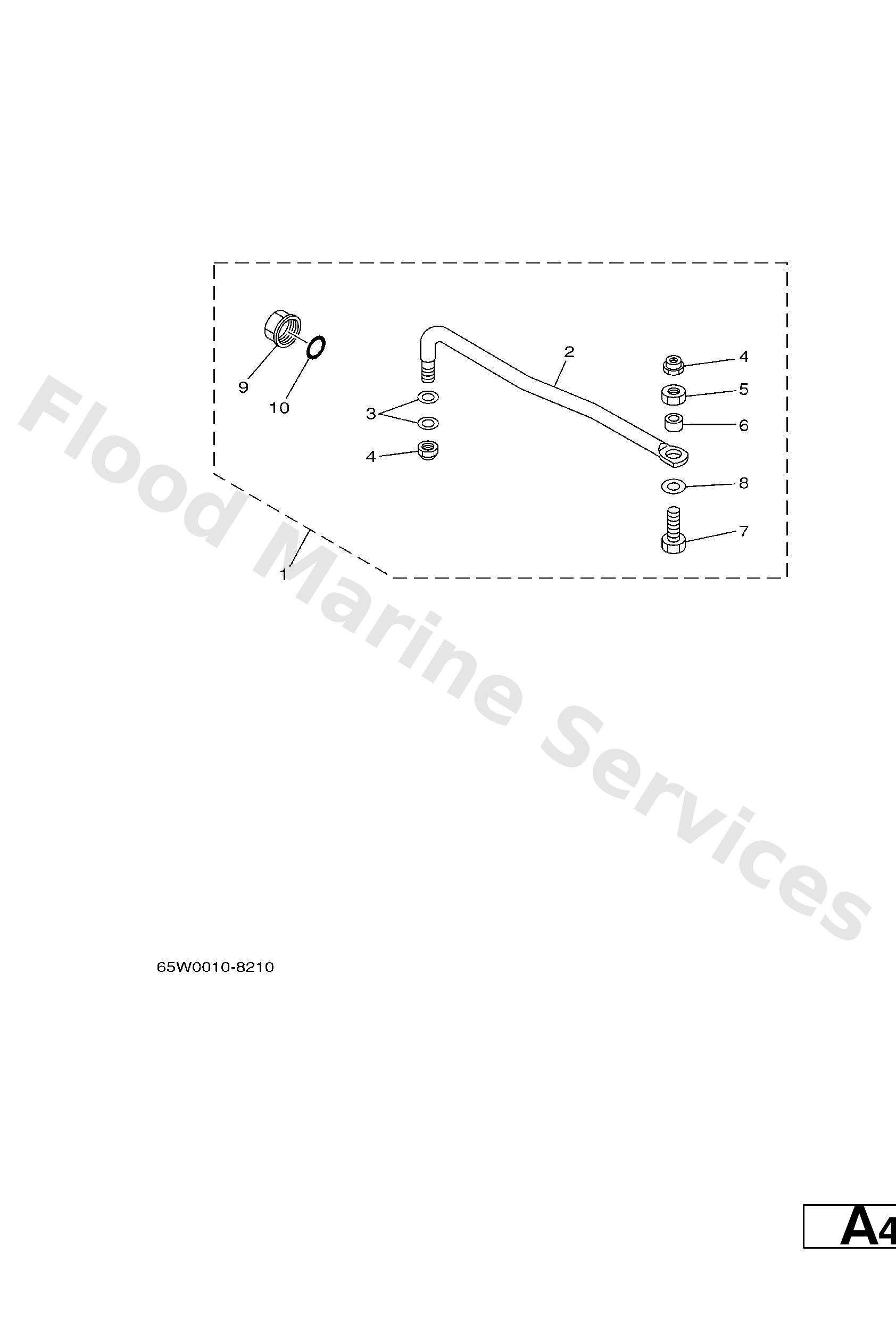

Diagram: STEERING GUIDE

Diagram

Parts List

Reference
Description
Price


1
65W−61350−00 AP
Steering guide attachment kit
Loading…

↗
2
65W−61351−00
Rod, steering link
Loading…

↗
3
90201−10M20
Washer, plate (663)
Loading…

↗
4
90185−09M01
Nut, nylon (663)
Loading…

↗
5
90170−09M03
Nut (689)
Loading…

↗
6
90387−10M42
Coller (688)
Loading…

↗
7
90101−09M01
Bolt(62x)
Loading…

↗
8
90201−10M63
Washer, plate
Loading…

↗
9
6E5−43145−01
Cap, clamp bracket
Loading…

↗
10
93210−16275
O-ring
Loading…

↗
