FT60JET (2025)
STEERING GUIDE

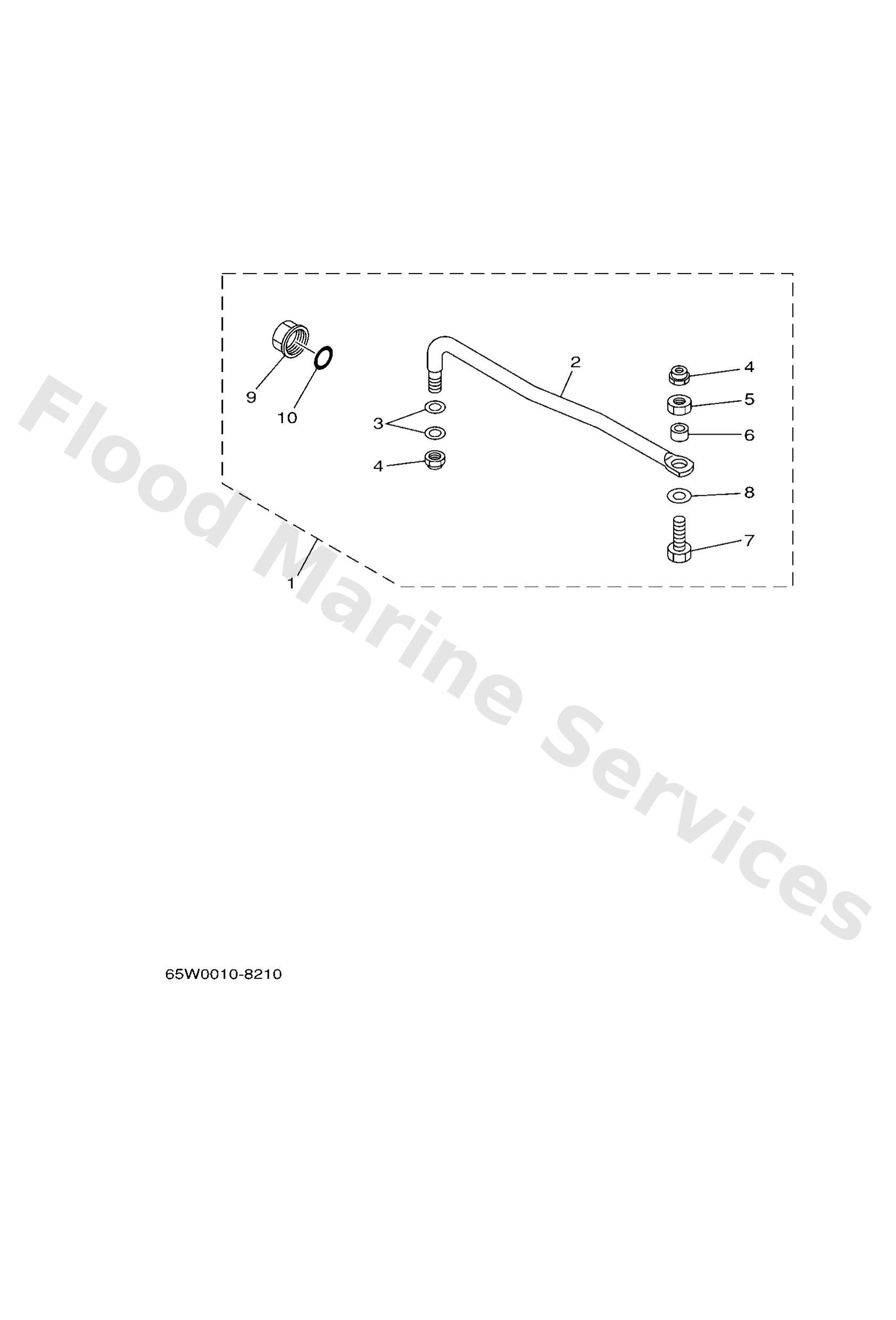

Diagram: STEERING GUIDE
Parts List
Reference
Description
Price
1
65W6135000
AP
Steering guide attachment kit
Loading…
↗
2
65W6135100
Rod, steering link
Loading…
↗
3
9020110M20
Washer, plate (663)
Loading…
↗
4
9018509M01
Nut, nylon (663)
Loading…
↗
5
9017009M03
Nut (689)
Loading…
↗
6
9038710M42
Coller (688)
Loading…
↗
7
9010109M01
Bolt(62x)
Loading…
↗
8
9020110081
Washer, plate
Loading…
↗
9
6E54314501
Cap, clamp bracket
Loading…
↗
10
9321016275
O-ring
Loading…
↗
