F150CB (2023)
STEERING GUIDE 2

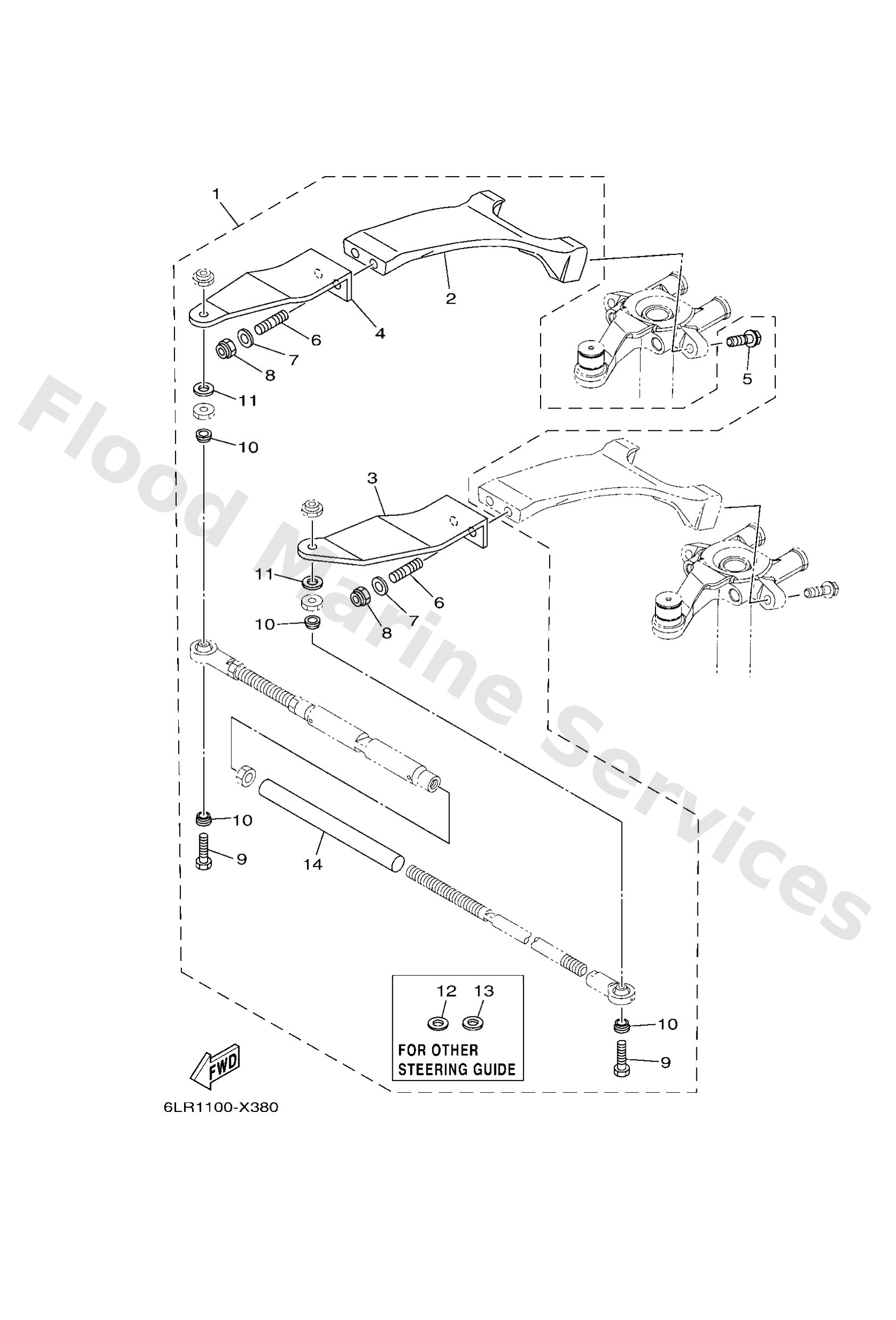

Diagram: STEERING GUIDE 2
Parts List
Reference
Description
Price
1
6LR61301008D
AP
Twin kit
Loading…
↗
2
6LP45851008D
Fork, steering
Loading…
↗
3
6LP4744600
Hook 1
Loading…
↗
4
6LR4744600
Hook 1
Loading…
↗
5
9011910040
Bolt, with washer
Loading…
↗
6
9011610063
Bolt, stud
Loading…
↗
7
9020110049
Washer, plate
Loading…
↗
8
9018510027
Nut, self-locking
Loading…
↗
9
9010110M39
Bolt, hexagon (663)
Loading…
↗
10
6LP4283400
Collar
Loading…
↗
11
9020110M04
Washer, plate(6g8)
Loading…
↗
12
9020110081
Washer, plate
Loading…
↗
14
9044615006
Hose
Loading…
↗
