Yamaha Outboard Parts - STEERING GUIDE 2 - Rigging - Remote Control (2008) | Flood Marine

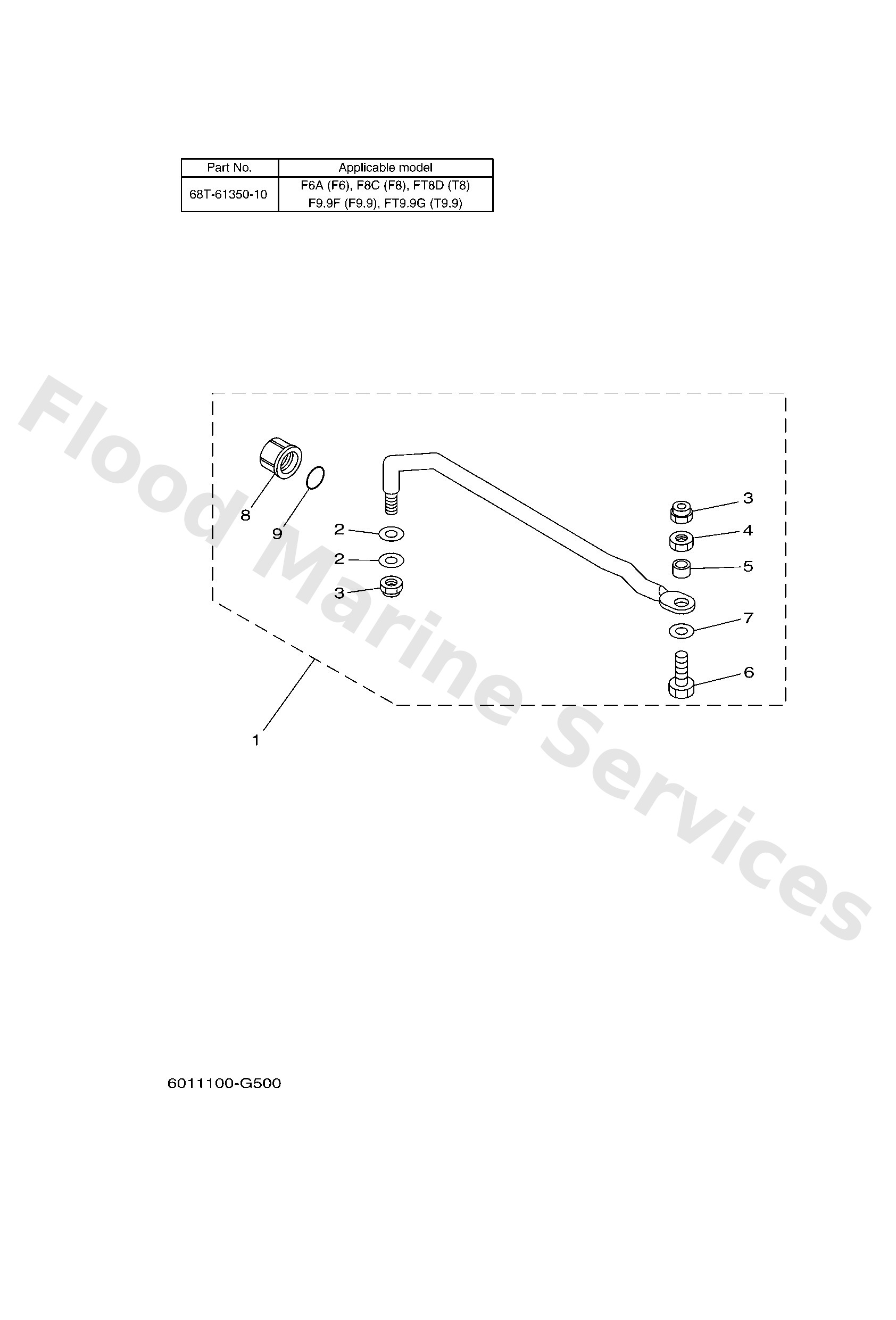

Diagram: STEERING GUIDE 2

Diagram

Parts List

Reference
Description
Price


1
68T6135010
Steering guide attachment kit
Loading…

↗
2
9020110M20
Washer, plate (663)
Loading…

↗
3
9018509M01
Nut, nylon (663)
Loading…

↗
4
9017009M03
Nut (689)
Loading…

↗
5
9038710M42
Coller (688)
Loading…

↗
6
6E56135500
Bolt
Loading…

↗
7
9020110M63
Washer, plate
Loading…

↗
8
6E54314501
Cap, clamp bracket
Loading…

↗
9
9321016275
O-ring
Loading…

↗
