Rigging - Remote Control (2011)
STEERING GUIDE 7

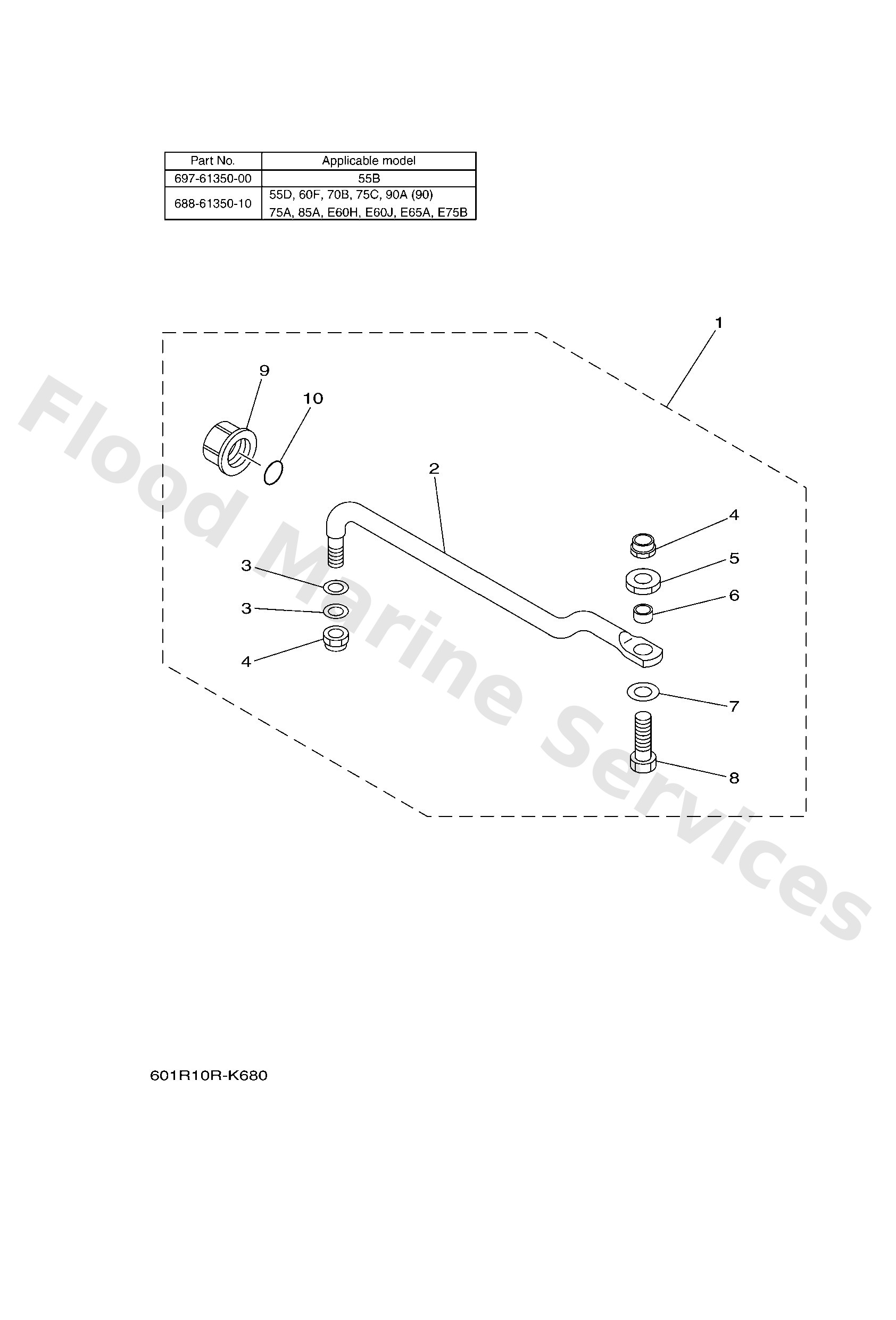

Diagram: STEERING GUIDE 7
Parts List
Reference
Description
Price
1
6976135000
UR
Steering guide attachment kit
Loading…
↗
1
6886135010
UR
Steering guide attachment kit
Loading…
↗
2
6976135100
FOR 697-61350-00
Rod, steering link
Loading…
↗
2
6886135110
FOR 688-61350-10
Rod, steering link
Loading…
↗
3
9020110M20
Washer, plate (663)
Loading…
↗
4
9018509M01
Nut, nylon (663)
Loading…
↗
5
9017009M03
Nut (689)
Loading…
↗
6
9038710M42
Coller (688)
Loading…
↗
7
9020110M63
Washer, plate
Loading…
↗
8
6E56135500
Bolt
Loading…
↗
9
6E54314501
Cap, clamp bracket
Loading…
↗
10
9321016275
O-ring
Loading…
↗
