Yamaha Outboard Parts - STEERING GUIDE ATTACHMENT 1 - FL300DET (2021) | Flood Marine

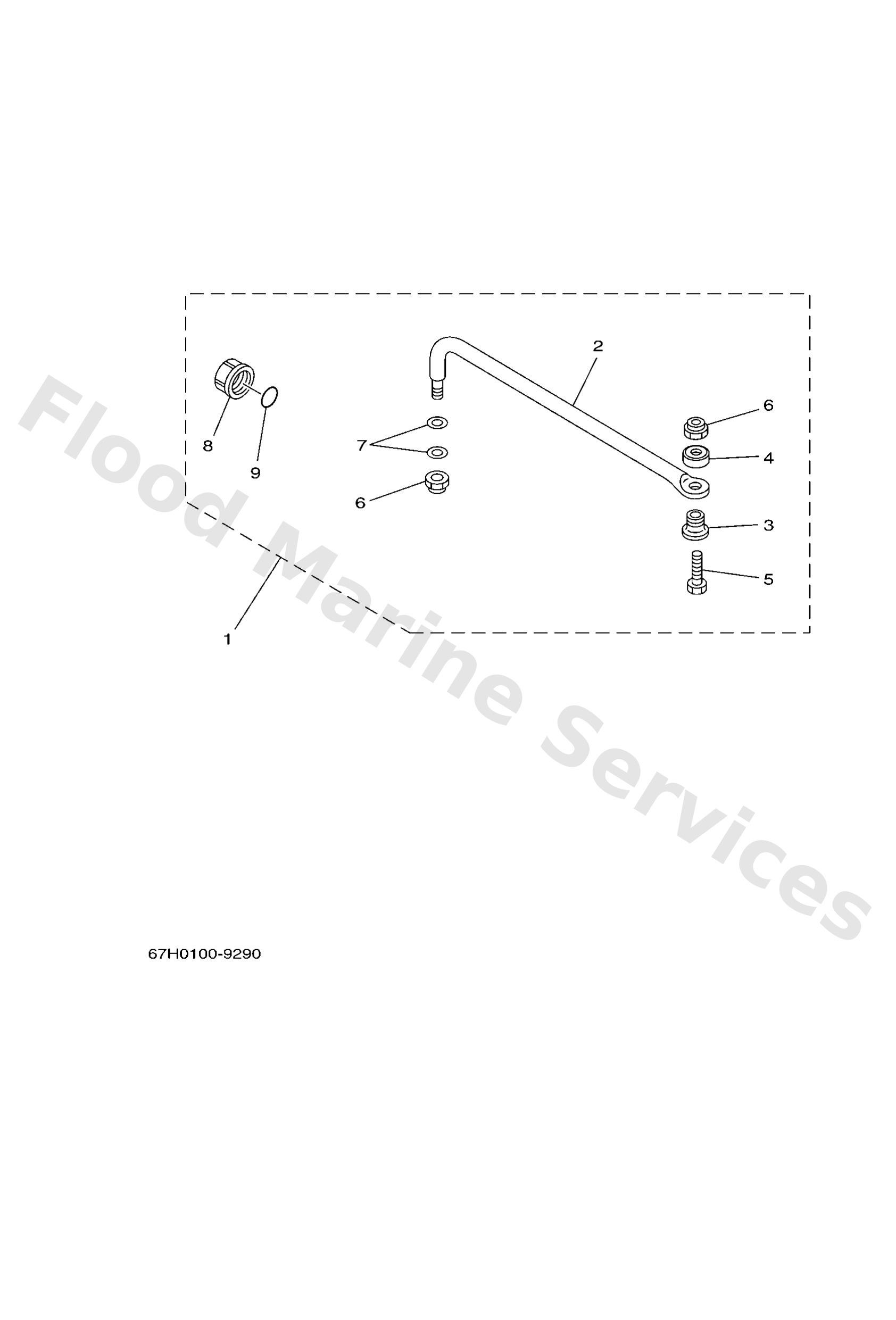

Diagram: STEERING GUIDE ATTACHMENT 1

Diagram

Parts List

Reference
Description
Price


1
6E56135002 AP
Steering guide attachment kit
Loading…

↗
2
6E56135101
Rod, steering link
Loading…

↗
3
9038710M61
Collar (6e5)
Loading…

↗
4
9056012M01
Spacer (6e5)
Loading…

↗
5
6E56135500
Bolt
Loading…

↗
6
9018509M01
Nut, nylon (663)
Loading…

↗
7
9020110M20
Washer, plate (663)
Loading…

↗
8
6E54314501
Cap, clamp bracket
Loading…

↗
9
9321016275
O-ring
Loading…

↗
