Yamaha Outboard Parts - STEERING GUIDE ATTACHMENT 1 - L250AETO (2003) | Flood Marine

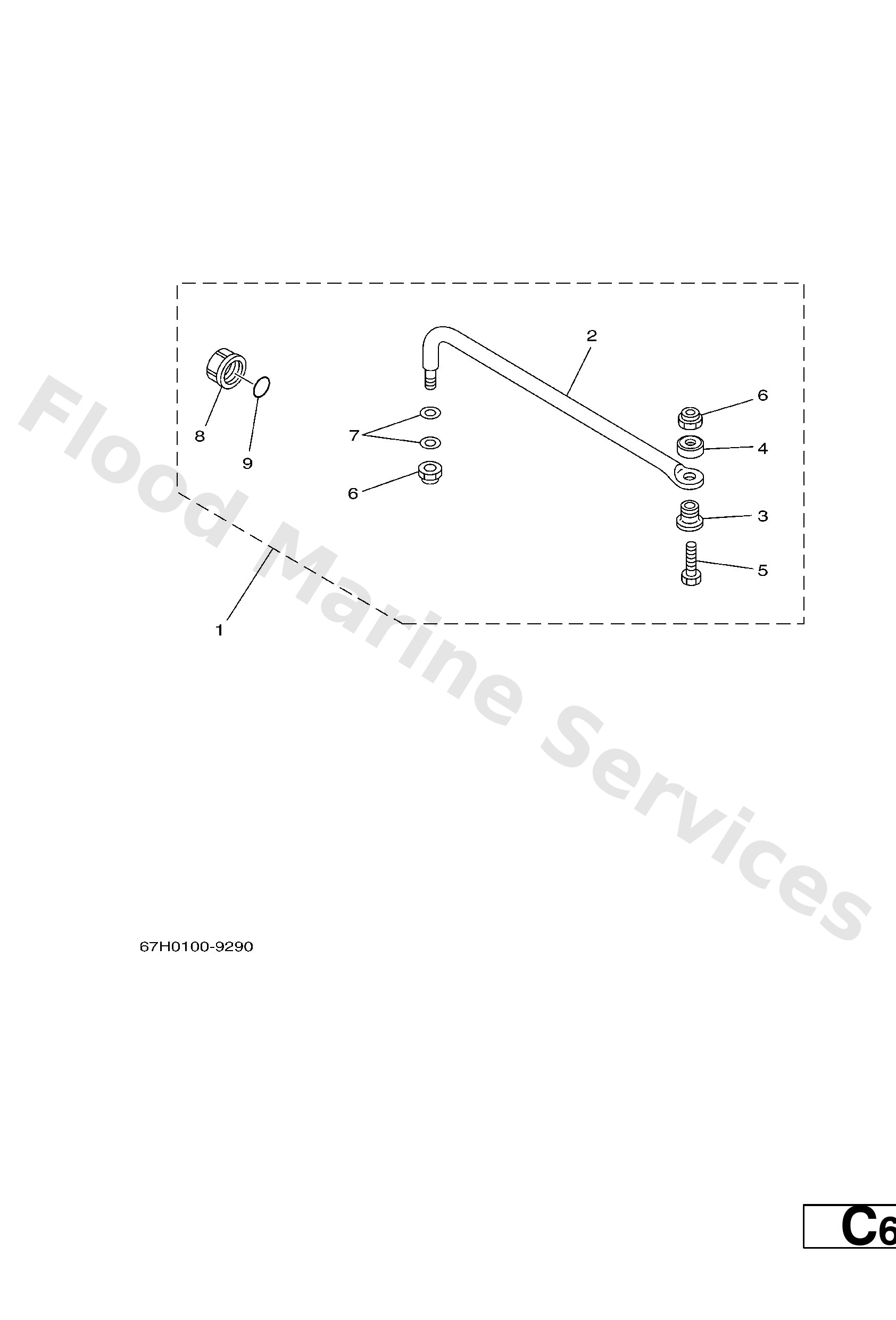

Diagram: STEERING GUIDE ATTACHMENT 1

Diagram

Parts List

Reference
Description
Price


1
6E5−61350−02 AP
Steering guide attachment kit
Loading…

↗
2
6E5−61351−01
Rod, steering link
Loading…

↗
3
90387−10M61
Collar (6e5)
Loading…

↗
4
90560−12M01
Spacer (6e5)
Loading…

↗
5
6E5−61355−00
Bolt
Loading…

↗
6
90185−09M01
Nut, nylon (663)
Loading…

↗
7
90201−10M20
Washer, plate (663)
Loading…

↗
8
6E5−43145−01
Cap, clamp bracket
Loading…

↗
9
93210−16275
O-ring
Loading…

↗
