Yamaha Outboard Parts - STEERING GUIDE ATTACHMENT 2 - 250BETO (2003) | Flood Marine

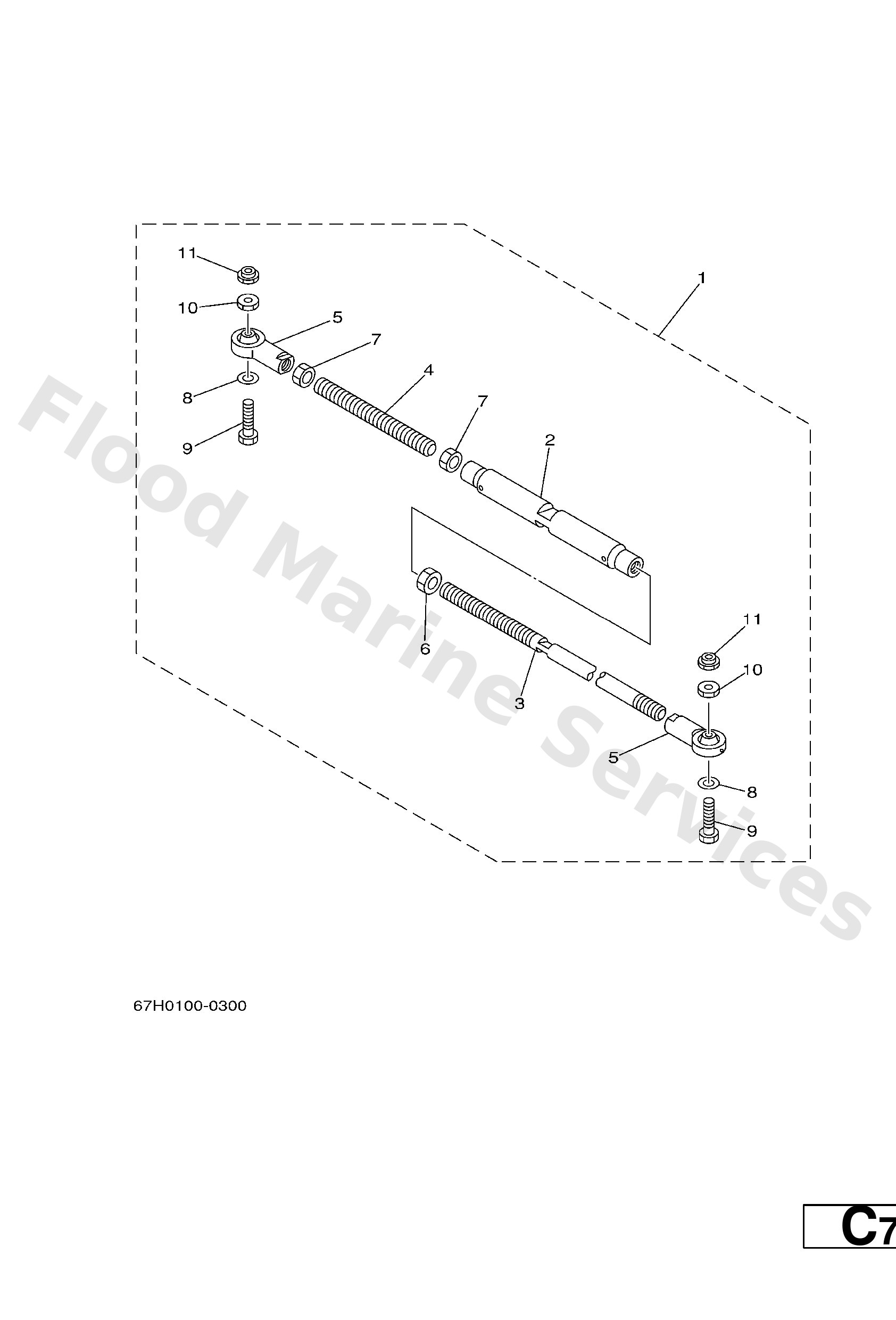

Diagram: STEERING GUIDE ATTACHMENT 2

Diagram

Parts List

Reference
Description
Price


1
6E5−61301−01 AP
Tie bar assembly (l:600-800mm)
Loading…

↗
2
6E5−61313−00
Adjuster
Loading…

↗
3
6E5−61311−11
Tie bar
Loading…

↗
4
6E5−61315−00
Tie bar, 2
Loading…

↗
5
6E5−61303−00
Steering axle comp.
Loading…

↗
6
90170−14M06
Nut (6e5)
Loading…

↗
7
95380−14700
Nut (6e5)
Loading…

↗
8
90201−10M76
Washer, plate (6e5)
Loading…

↗
9
90101−09M70
Bolt (6e5)
Loading…

↗
10
90170−09M05
Nut, hexagon (6e5)
Loading…

↗
11
90185−09M01
Nut, nylon (663)
Loading…

↗
