F115AET (2006)
STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2

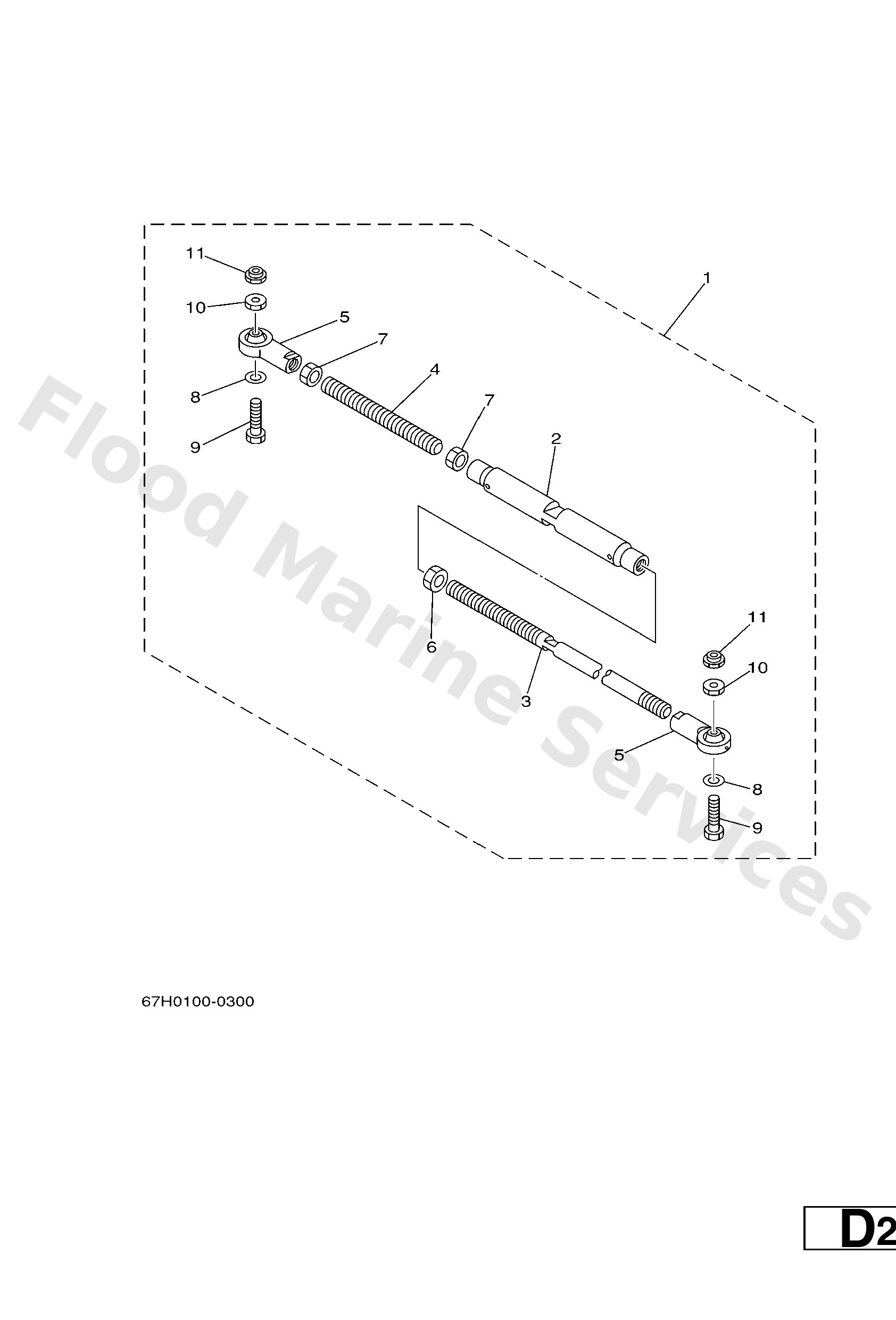

Diagram: STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2
Parts List
Reference
Description
Price
1
6E56130101
AP
Tie bar assembly (l:600-800mm)
Loading…
↗
2
6E56131300
Adjuster
Loading…
↗
3
6E56131111
Tie bar
Loading…
↗
4
6E56131500
Tie bar, 2
Loading…
↗
5
6E56130300
Steering axle comp.
Loading…
↗
6
9017014M06
Nut (6e5)
Loading…
↗
7
9538014700
Nut (6e5)
Loading…
↗
8
9020110M76
Washer, plate (6e5)
Loading…
↗
9
9010109M70
Bolt (6e5)
Loading…
↗
10
9017009M05
Nut, hexagon (6e5)
Loading…
↗
11
9018509M01
Nut, nylon (663)
Loading…
↗
