Yamaha Outboard Parts - STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2 - FL250DET (2011) | Flood Marine

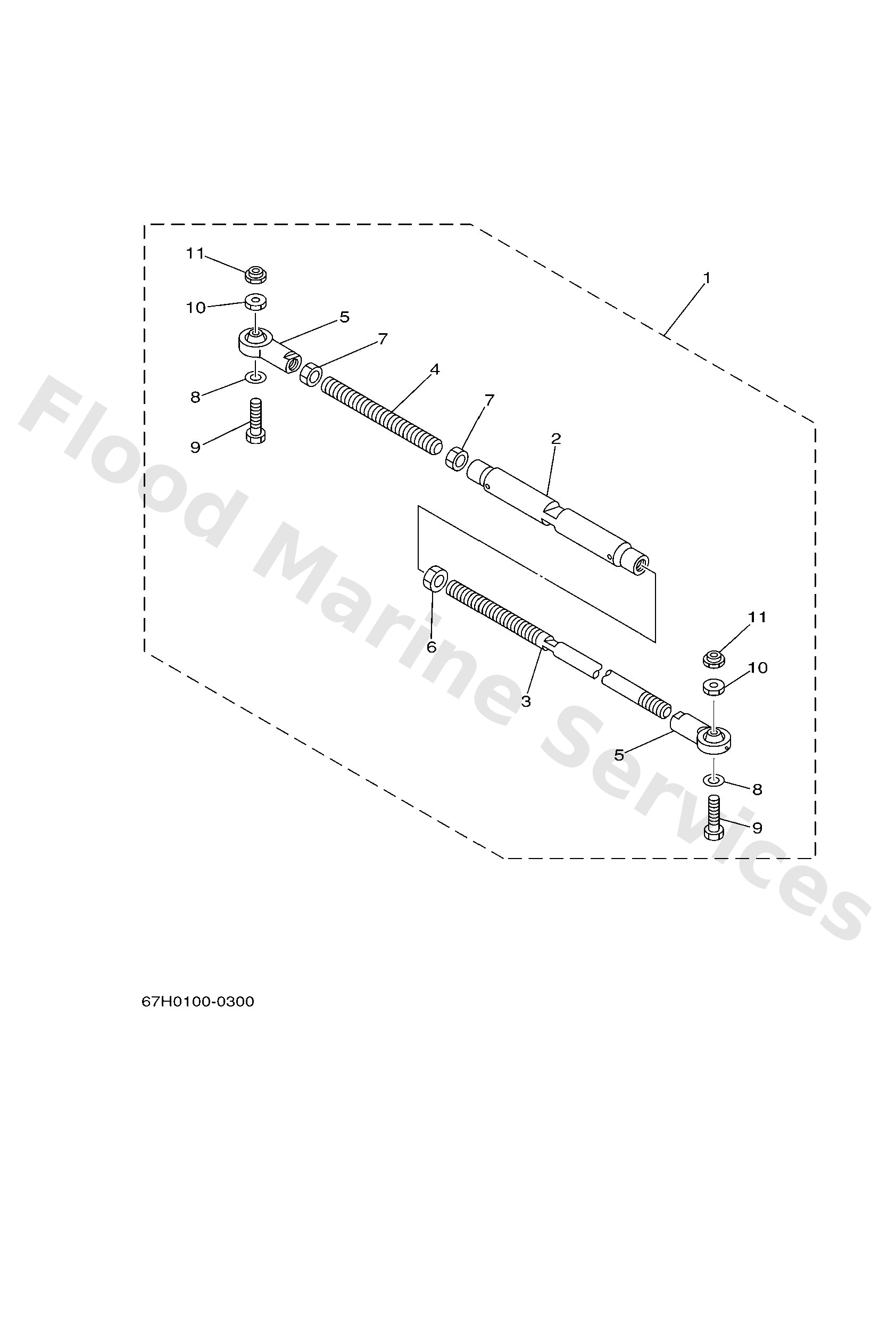

Diagram: STEERING GUIDE ATTACHMENT 2 DIRECTION GUIDE ACCESSOIRE 2

Diagram

Parts List

Reference
Description
Price


1
6E56130101 AP
Tie bar assembly (l:600-800mm)
Loading…

↗
2
6E56131300
Adjuster
Loading…

↗
3
6E56131111
Tie bar
Loading…

↗
4
6E56131500
Tie bar, 2
Loading…

↗
5
6E56130300
Steering axle comp.
Loading…

↗
6
9017014M06
Nut (6e5)
Loading…

↗
7
9538014700
Nut (6e5)
Loading…

↗
8
9020110M76
Washer, plate (6e5)
Loading…

↗
9
9010109M70
Bolt (6e5)
Loading…

↗
10
9017009M05
Nut, hexagon (6e5)
Loading…

↗
11
9018509M01
Nut, nylon (663)
Loading…

↗
