Yamaha Outboard Parts - STEERING HOOK 1 - Rigging - Remote Control (2011) | Flood Marine

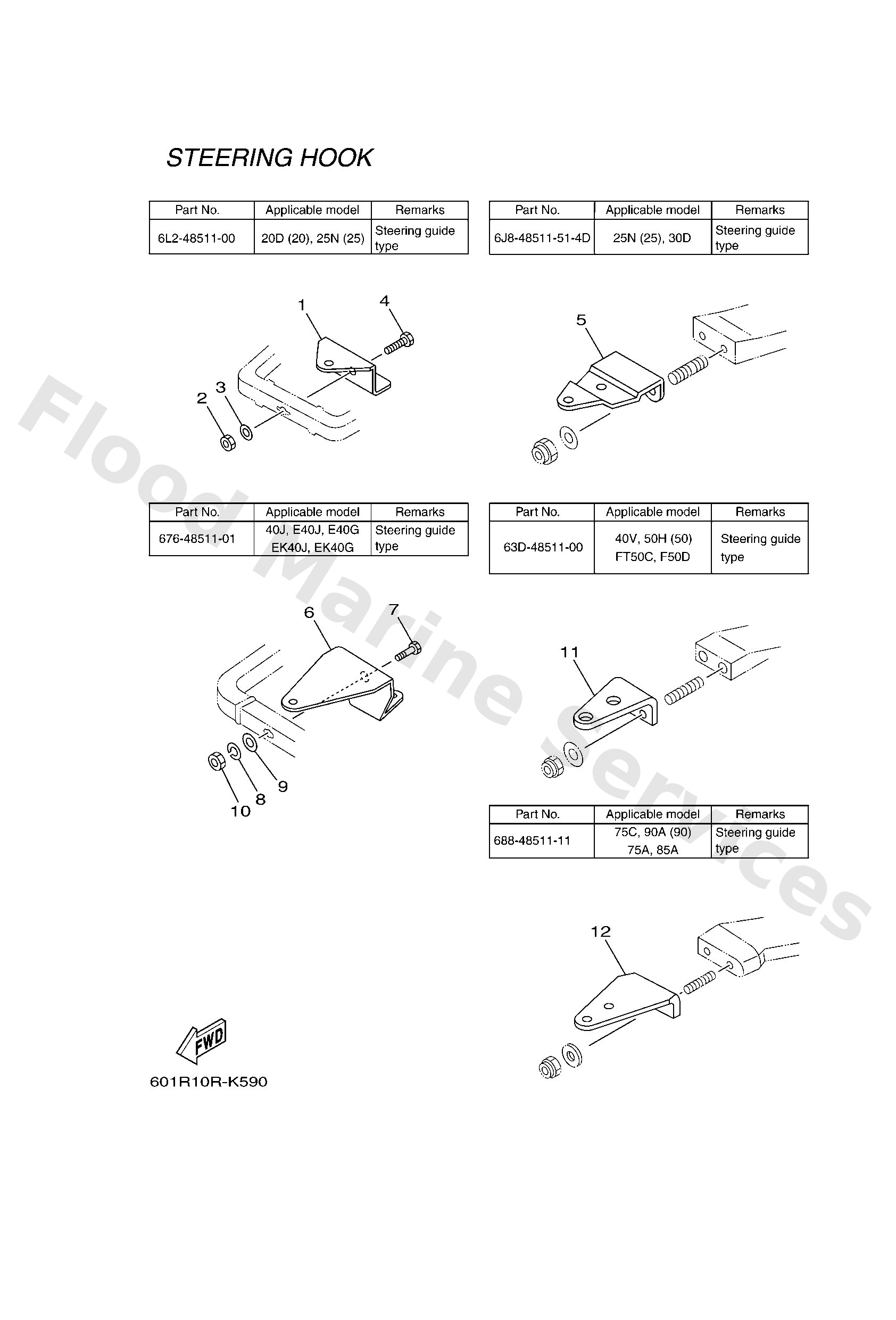

Diagram: STEERING HOOK 1

Diagram

Parts List

Reference
Description
Price


1
6L24851100 STEERING GUIDE
Hook, steering
Loading…

↗
2
9018510051
Nut, self-locking
Loading…

↗
3
9299010600
Washer, plate
Loading…

↗
4
9707510040
Bolt, hexagon deep recess
Loading…

↗
5
6J848511514D STEERING GUIDE
Hook, steering
Loading…

↗
6
6764851101 STEERING GUIDE
Hook, steering
Loading…

↗
8
9299010100
Ybs67-10 washer, spring
Loading…

↗
10
9538010600
Nut(624)
Loading…

↗
11
63D4851100 STEERING GUIDE
Hook, steering
Loading…

↗
12
6884851111 STEERING GUIDE
Hook, steering
Loading…

↗
