Rigging - Remote Control (2025)
STEERING HOOK 1

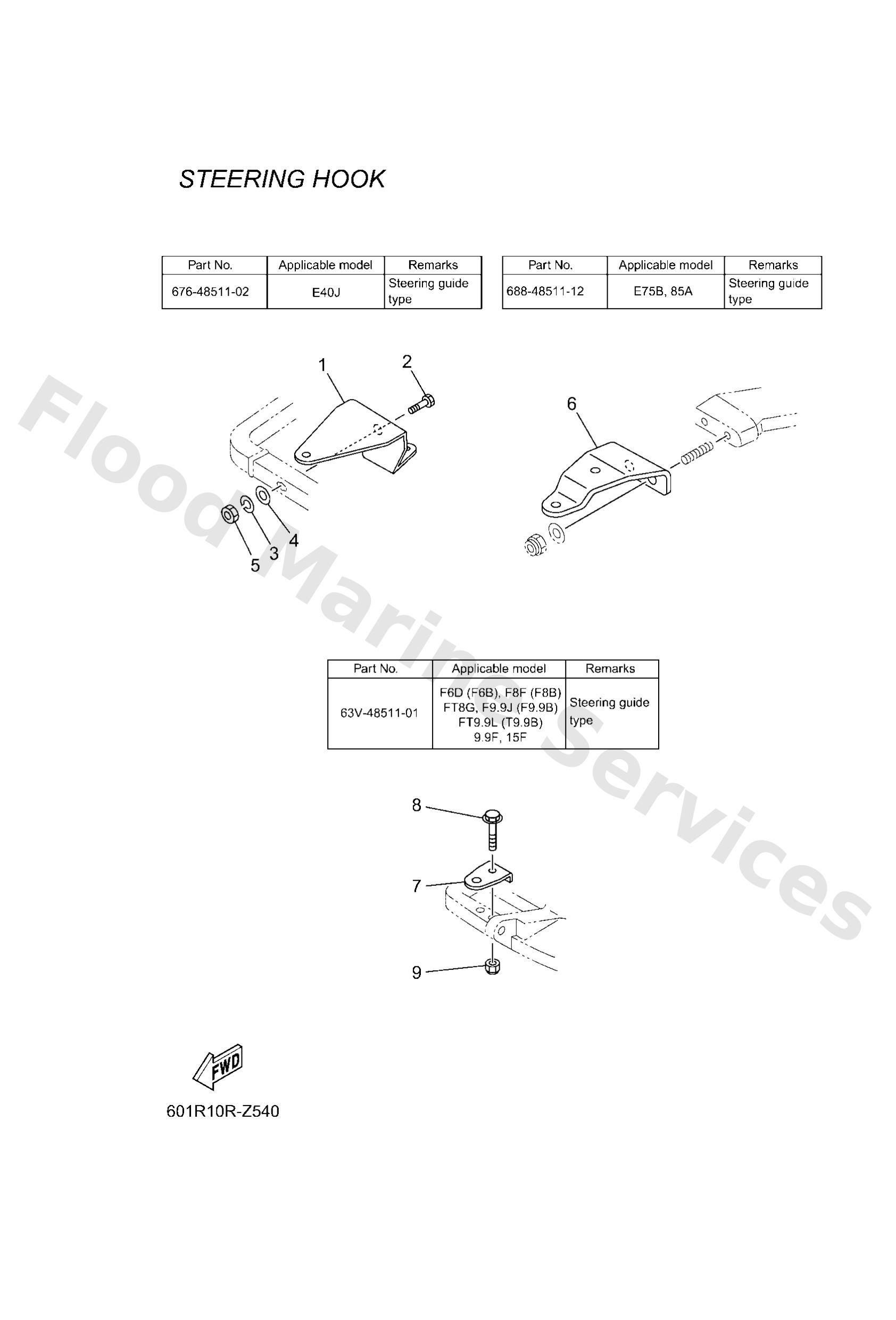

Diagram: STEERING HOOK 1
Parts List
Reference
Description
Price
1
6764851102
STEERING GUIDE
Hook, steering
Loading…
↗
2
97D7510040
Bolt, hexagon deep recess
Loading…
↗
3
9299010100
Ybs67-10 washer, spring
Loading…
↗
4
9299010600
Washer, plate
Loading…
↗
5
9538010600
Nut(624)
Loading…
↗
6
6884851112
STEERING GUIDE
Hook, steering
Loading…
↗
7
63V4851101
STEERING GUIDE
Hook, steering
Loading…
↗
8
97E7508535
Bolt, hexagon w/w deep recess
Loading…
↗
9
9018508057
Nut, nylon (6j8)
Loading…
↗
