Rigging - Remote Control (2011)
STEERING HOOK 3

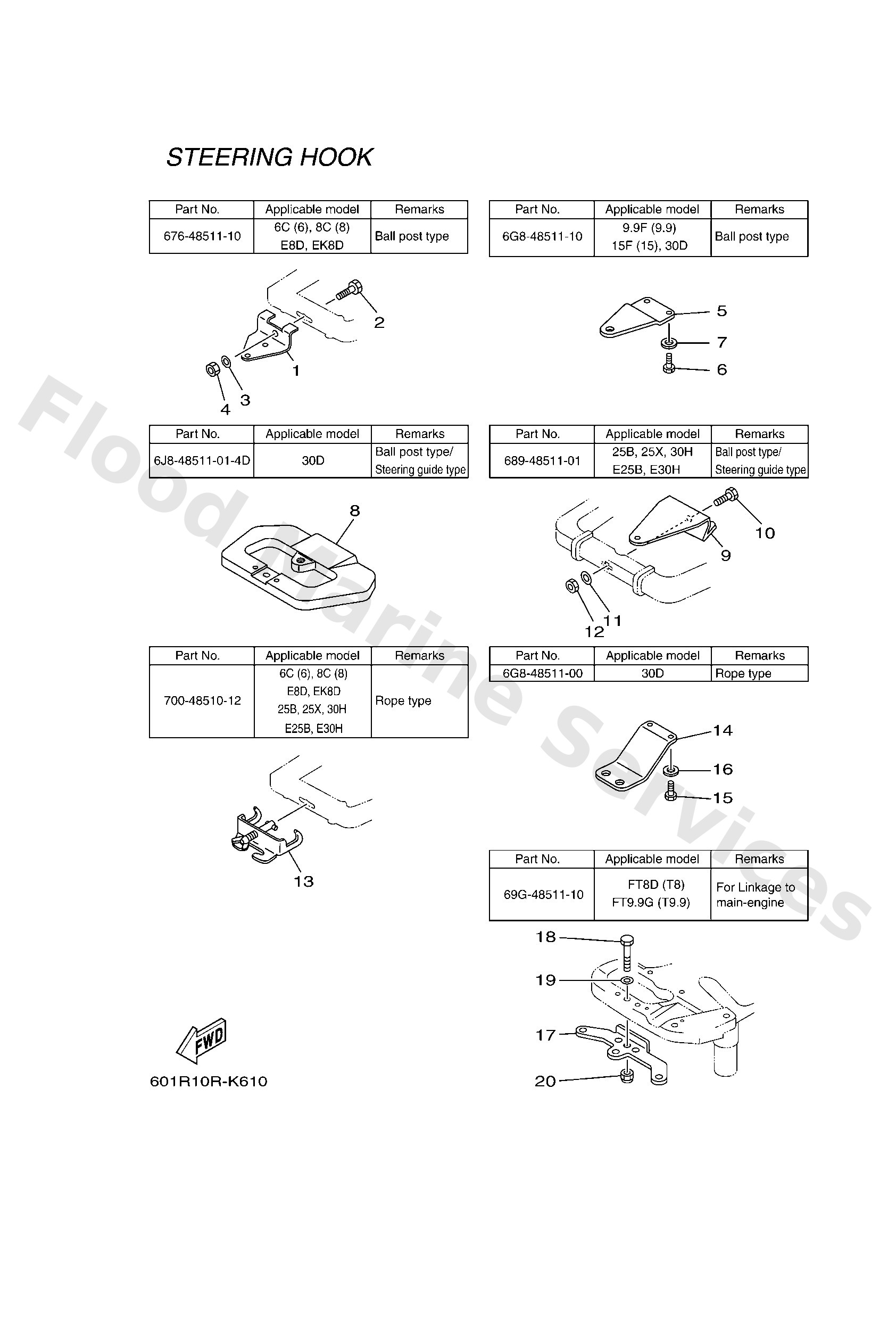

Diagram: STEERING HOOK 3
Parts List
Reference
Description
Price
1
6764851110
BALL POST TYPE
Hook, steering
Loading…
↗
2
9707510040
Bolt, hexagon deep recess
Loading…
↗
3
9299010600
Washer, plate
Loading…
↗
4
9018510051
Nut, self-locking
Loading…
↗
5
6G84851110
BALL POST TYPE
Hook, steering
Loading…
↗
6
9709506016
Bolt, hexagon deep recess
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6J848511014D
Hook, steering
Loading…
↗
9
6894851101
Hook, steering
Loading…
↗
13
7004851012
ROPE TYPE
Hook steering assembly
Loading…
↗
14
6G84851100
ROPE TYPE
Hook, steering
Loading…
↗
17
69G4851110
Hook, steering
Loading…
↗
18
9707508035
Bolt(70w)
Loading…
↗
19
9299508600
Washer, plain (663)
Loading…
↗
20
9018508057
Nut, nylon (6j8)
Loading…
↗
