F115AET (2010)
SWITCH & PANEL

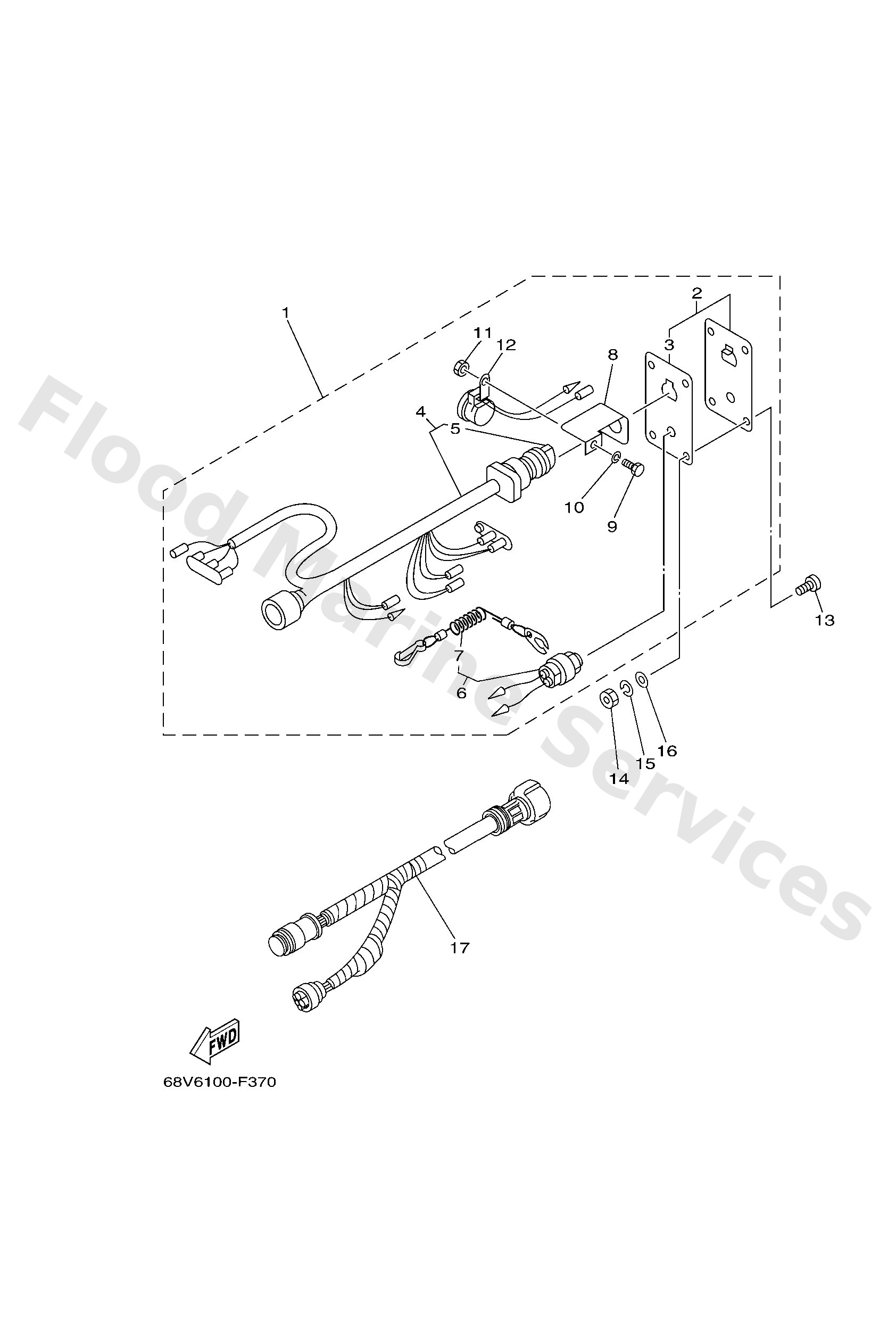

Diagram: SWITCH & PANEL
Parts List
Reference
Description
Price
1
6R58257005
AP FOR RUS
Panel switch assembly
Loading…
↗
2
7048257102
Panel, switch
Loading…
↗
3
6R58258801
Plate
Loading…
↗
4
6R58251002
Main switch assembly
Loading…
↗
5
6768257700
Cap, key
Loading…
↗
6
6888257501
Engine stop switch assembly
Loading…
↗
7
6828255600
Lanyard, stop switch
Loading…
↗
8
64D8258100
Stay, cord clamp
Loading…
↗
9
9730305012
Bolt, hexagon
Loading…
↗
15
9290305100
AP FOR RUS
Ybs67-5 washer, spring
Loading…
↗
11
9530305700
Nut (656)
Loading…
↗
12
6R58338300
Buzzer
Loading…
↗
13
9014905M05
AP FOR RUS
Screw(6k0)
Loading…
↗
14
9530305600
AP FOR RUS
Nut, hexagon (663)
Loading…
↗
16
9290305600
AP FOR RUS
Washer, plain (646)
Loading…
↗
17
6K18258A40
AP FOR RUS (10P)
Extension, wire harness
Loading…
↗
