FL225AET (2005)
SWITCH & PANEL

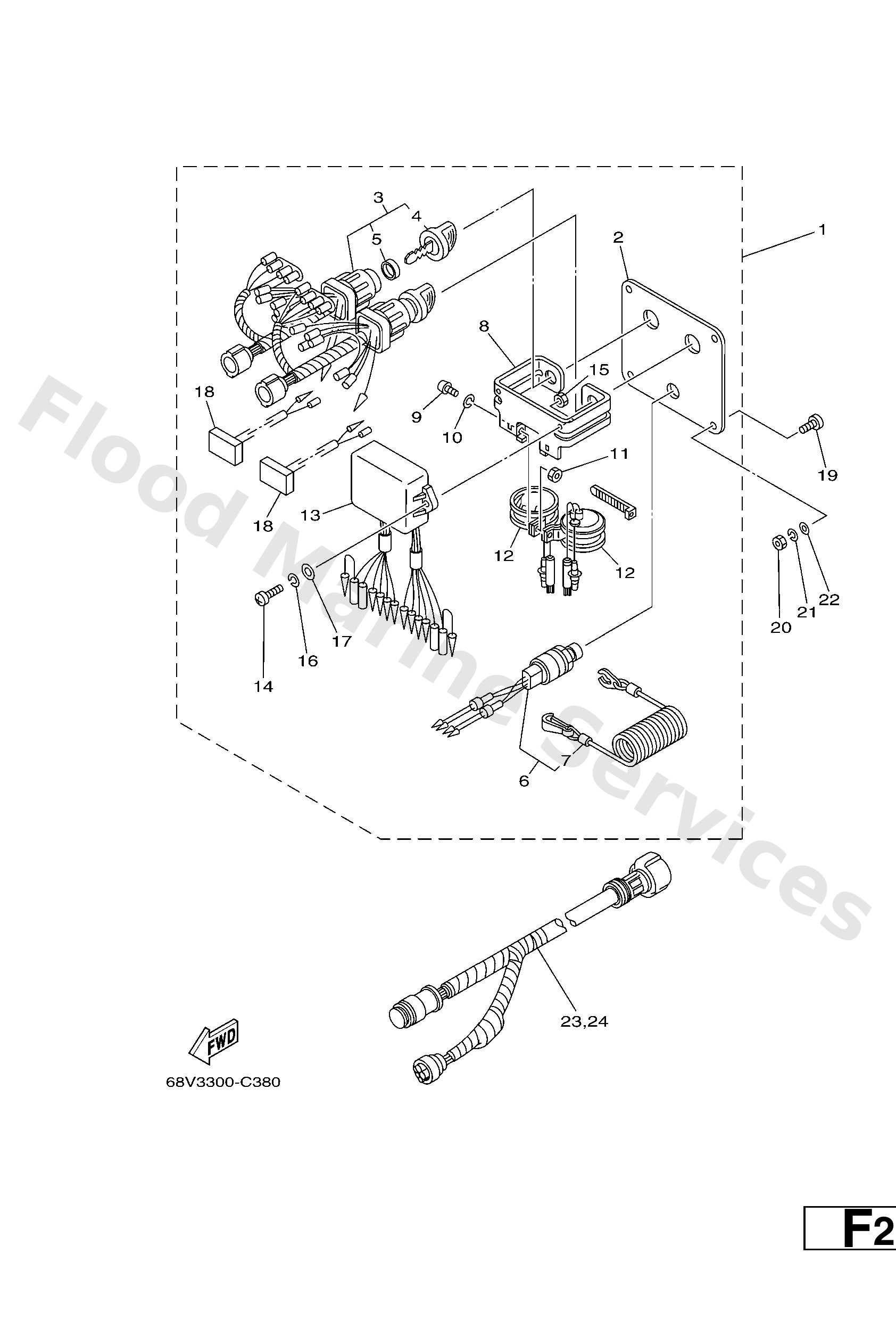

Diagram: SWITCH & PANEL
Parts List
Reference
Description
Price
1
6K18257008
AP
Panel switch assembly
Loading…
↗
2
6K18257102
Plate, panel switch
Loading…
↗
3
6K18251006
Main switch assembly
Loading…
↗
4
7038257700
Cap, key
Loading…
↗
5
6K18253200
Cap
Loading…
↗
6
6K18257500
Engine stop switch assembly
Loading…
↗
7
6828255600
Lanyard, stop switch
Loading…
↗
8
6K18361401
Bracket
Loading…
↗
9
9898005010
Screw, bind(6k1)
Loading…
↗
21
9299005100
AP
Ybs67-5 washer, spring
Loading…
↗
20
9538005600
AP
Nut, hexagon (663)
Loading…
↗
12
6888338311
Buzzer
Loading…
↗
13
6K18583001
Control unit assembly
Loading…
↗
14
9898006020
Screw, bind (j17)
Loading…
↗
15
9538006600
Nut(661)
Loading…
↗
16
9299006100
Washer(6a1)
Loading…
↗
17
9299006600
Washer, plain (646)
Loading…
↗
18
6K18198000
Diode assembly
Loading…
↗
19
9014905M05
AP
Screw(6k0)
Loading…
↗
22
9299005600
AP
Washer, plain (646)
Loading…
↗
23
6K18258A40
AP
Extension, wire harness
Loading…
↗
24
61B8258A01
AP
Extension, wire harness
Loading…
↗
