Rigging - Remote Control (2017)
SWITCH & PANEL 1

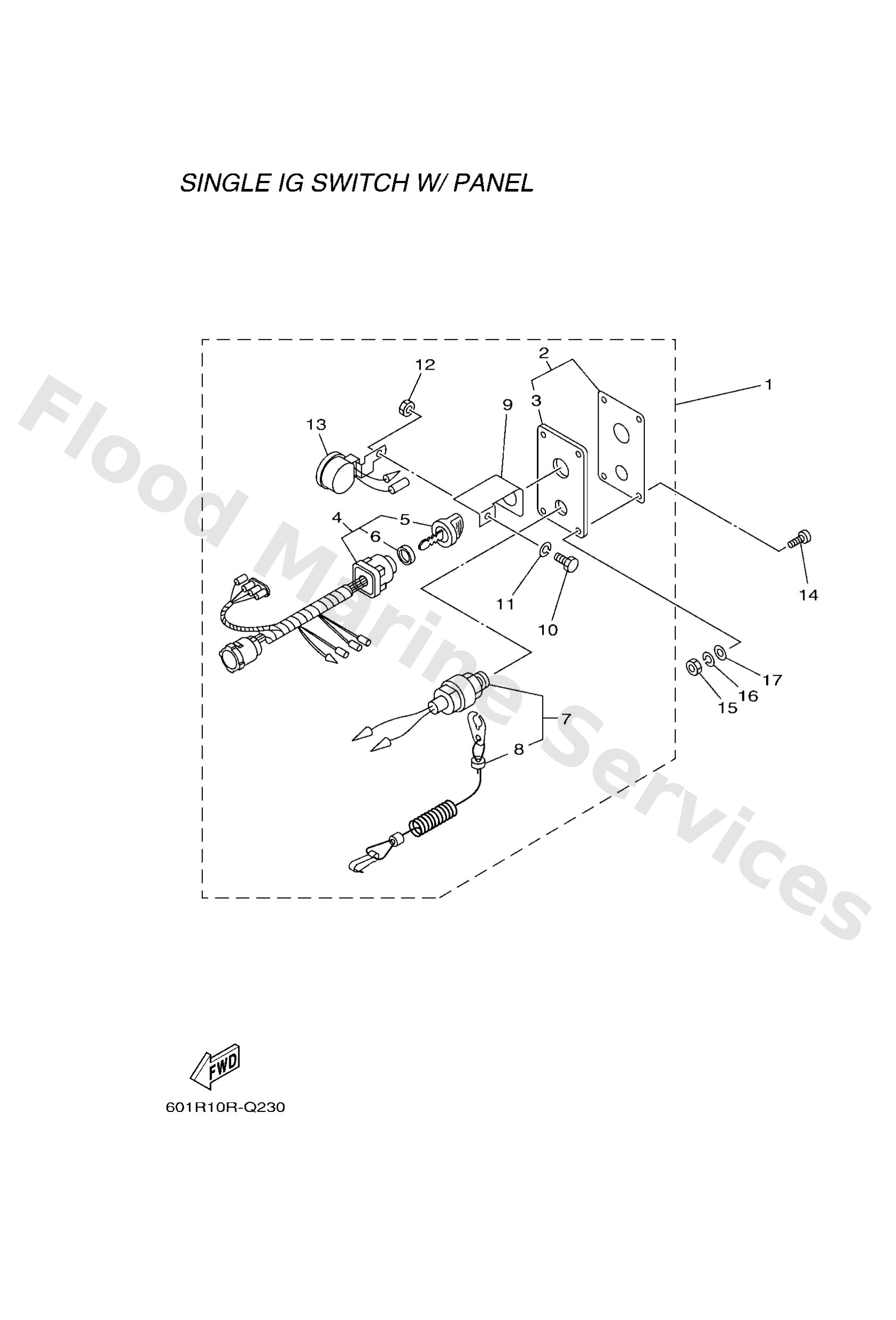

Diagram: SWITCH & PANEL 1
Parts List
Reference
Description
Price
1
7048257012
WITH CHOKE SW.
Panel switch assembly
Loading…
↗
2
7048257102
Panel, switch
Loading…
↗
3
6R58258801
Plate
Loading…
↗
4
704825100A
Main switch assembly
Loading…
↗
5
7038257700
Cap, key
Loading…
↗
6
6K18253200
Cap
Loading…
↗
7
6888257502
Engine stop switch assembly
Loading…
↗
8
6828255600
Lanyard, stop switch
Loading…
↗
9
64D8258100
Stay, cord clamp
Loading…
↗
10
9730305012
Bolt, hexagon
Loading…
↗
11
9290305100
Ybs67-5 washer, spring
Loading…
↗
12
9530305700
Nut (656)
Loading…
↗
13
6888338312
Buzzer
Loading…
↗
14
9014905M05
Screw(6k0)
Loading…
↗
15
9538005600
Nut, hexagon (663)
Loading…
↗
16
9299005100
Ybs67-5 washer, spring
Loading…
↗
17
9299005600
Washer, plain (646)
Loading…
↗
