Helm Master EX (2021)
SWITCH & PANEL 1 (EKS, SINGLE)

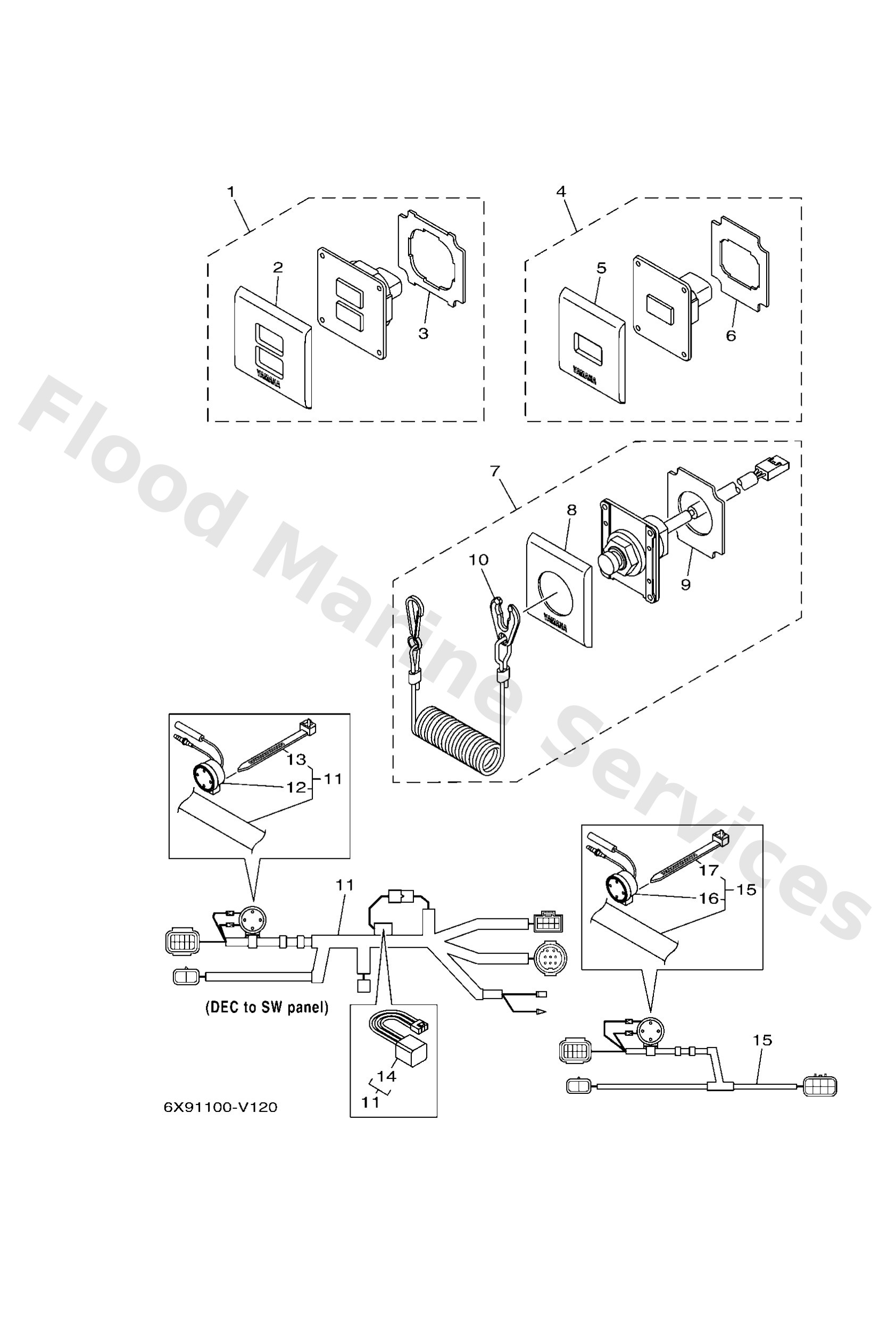

Diagram: SWITCH & PANEL 1 (EKS, SINGLE)
Parts List
Reference
Description
Price
1
6X98257000
MAIN STATION
Panel switch assembly
Loading…
↗
2
6X98257100
Panel, switch
Loading…
↗
3
6X92248000
Seal assembly
Loading…
↗
4
6X982570B0
2ND STATION
Power sw start/stop 2nd st
Loading…
↗
5
6X98257120
Panel, switch
Loading…
↗
6
6X92248020
Seal assembly
Loading…
↗
7
6X98257070
MAIN STATION & 2ND STATION
Panel switch assembly
Loading…
↗
8
6X98257170
Panel, switch
Loading…
↗
9
6X92248070
Seal assembly
Loading…
↗
10
6828255600
Lanyard, stop switch
Loading…
↗
11
6X98271621
MAIN STATION
Cord switch
Loading…
↗
12
7038338311
Buzzer
Loading…
↗
13
9046513M39
Clamp(6e8)
Loading…
↗
14
6X98195000
Relay assembly
Loading…
↗
15
6X98271660
2ND STATION
Cord switch
Loading…
↗
