Rigging - Remote Control (2010)
SWITCH & PANEL 11

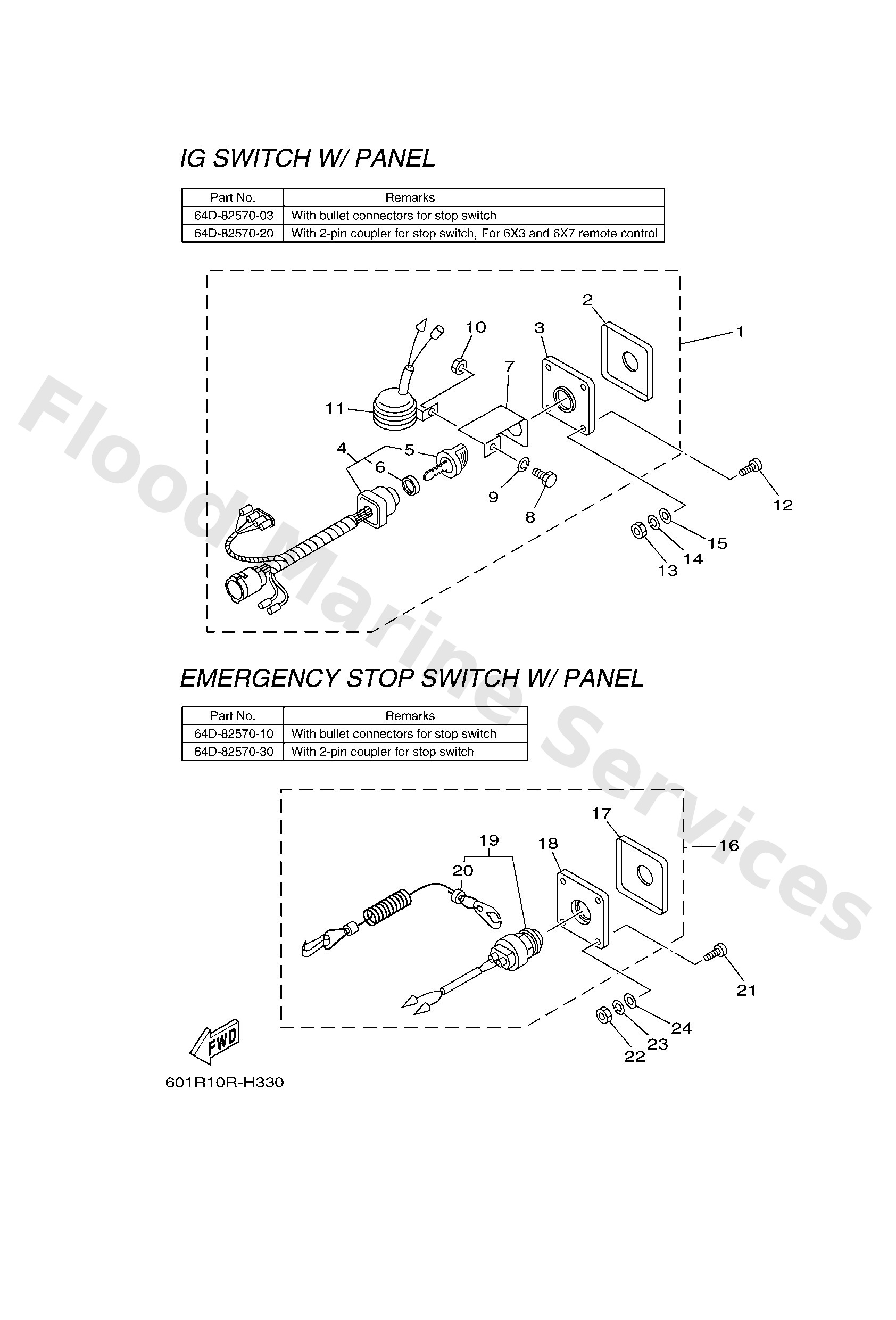

Diagram: SWITCH & PANEL 11
Parts List
Reference
Description
Price
1
64D8257020
UR
64d power switch main st
Loading…
↗
1
64D8257003
UR
Panel switch assembly
Loading…
↗
2
64D8257100
Panel, switch
Loading…
↗
3
64D8258800
Plate
Loading…
↗
4
64D8251003
Main switch assembly
Loading…
↗
5
7038257700
Cap, key
Loading…
↗
6
6K18253200
Cap
Loading…
↗
7
64D8258100
Stay, cord clamp
Loading…
↗
8
9730305012
Bolt, hexagon
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
9530305700
Nut (656)
Loading…
↗
11
6888338311
Buzzer
Loading…
↗
12
9014905M05
Screw(6k0)
Loading…
↗
13
9538005600
Nut, hexagon (663)
Loading…
↗
14
9299005100
Ybs67-5 washer, spring
Loading…
↗
15
9299005600
Washer, plain (646)
Loading…
↗
16
64D8257010
UR
Panel switch assembly
Loading…
↗
16
64D8257030
UR
Panel Switch assembly
Loading…
↗
17
64D8257110
Panel, Switch
Loading…
↗
18
64D8258810
Plate
Loading…
↗
19
64D8257500
FOR 64D-82570-10
Engine Stop Switch assembly
Loading…
↗
19
64D8257510
FOR 64D-82570-30
Engine Stop Switch assembly
Loading…
↗
20
6828255600
Lanyard, stop switch
Loading…
↗
