Rigging - Remote Control (2017)
SWITCH & PANEL 11

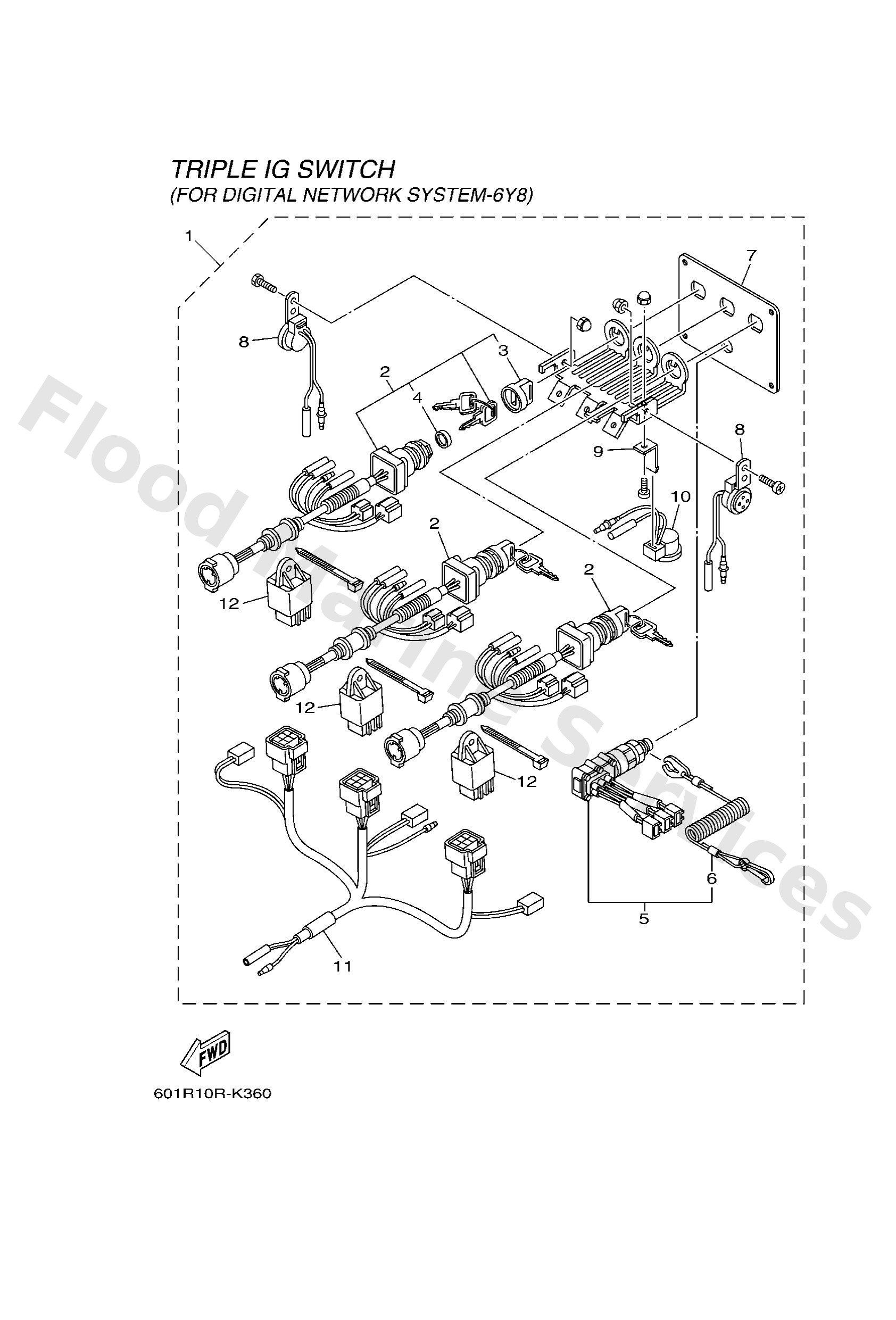

Diagram: SWITCH & PANEL 11
Parts List
Reference
Description
Price
1
6X58257002
& 2 STATION MAIN
Panel switch assembly
Loading…
↗
2
6X58251002
Main switch assembly
Loading…
↗
3
6768257701
Cap, key
Loading…
↗
4
7038253200
Cap
Loading…
↗
5
6X58257500
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
6X58257100
Panel, switch
Loading…
↗
8
6X58338300
Buzzer
Loading…
↗
9
6X58258100
Stay, cord clamp
Loading…
↗
10
6X48338300
Buzzer
Loading…
↗
11
6X58250700
Wire, lead
Loading…
↗
12
68V8195000
Relay assembly
Loading…
↗
