Rigging - Remote Control (2018)
SWITCH & PANEL 12

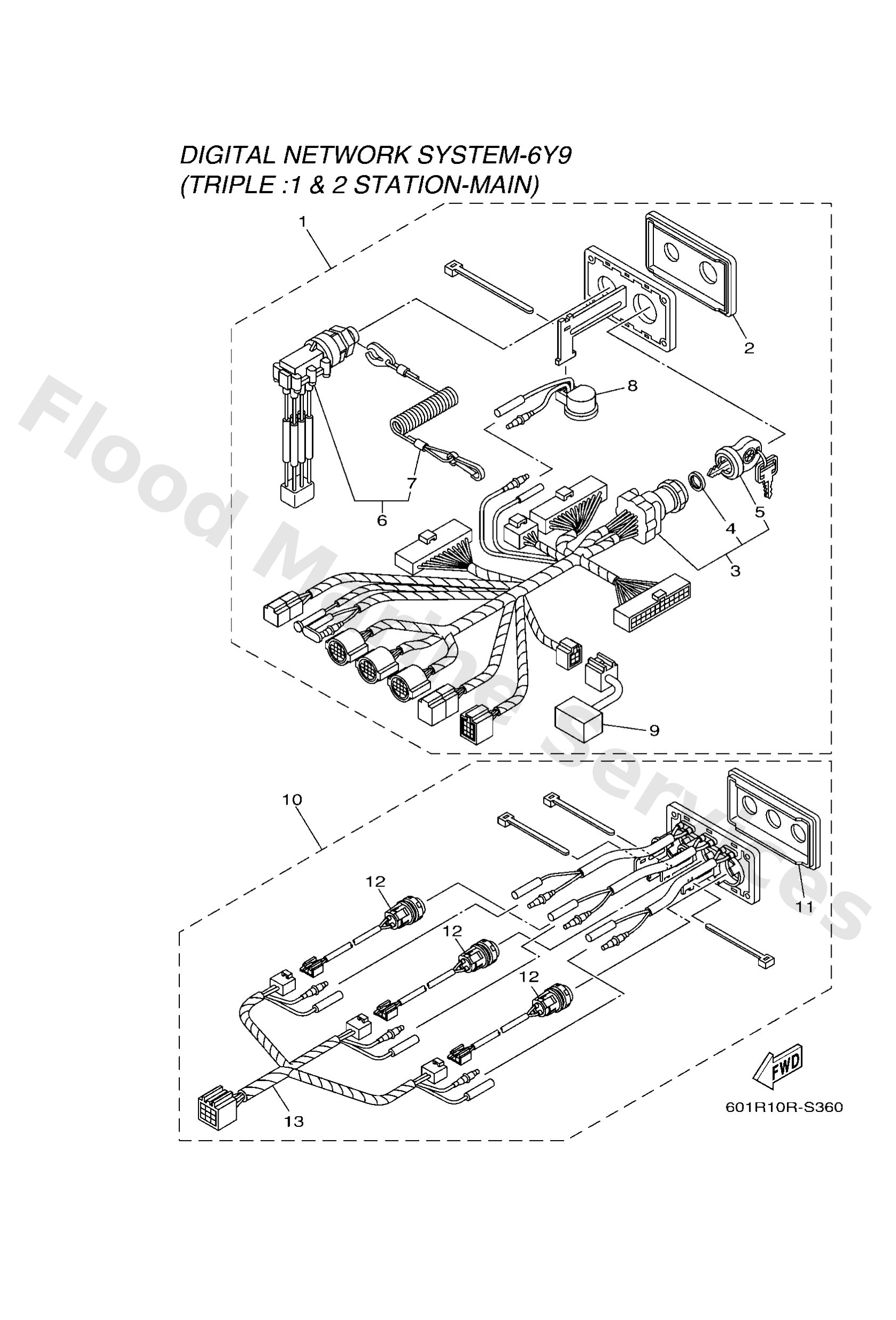

Diagram: SWITCH & PANEL 12
Parts List
Reference
Description
Price
1
6X68257050
& 2 STATION MAIN
Panel Switch assembly
Loading…
↗
2
6X68257110
Panel, switch
Loading…
↗
3
6X68251020
Main switch assembly
Loading…
↗
4
7038253200
Cap
Loading…
↗
5
6X68251109A9
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A8
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A7
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A6
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A5
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A4
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A3
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A1
UR
Key, main switch (6x6 m/switch
Loading…
↗
5
6X68251109A2
UR
Key, main switch (6x6 m/switch
Loading…
↗
6
6X68257510
Engine stop switch assembly
Loading…
↗
7
6828255600
Lanyard, stop switch
Loading…
↗
8
70383383A0
Buzzer
Loading…
↗
9
6X68198000
Diode assembly
Loading…
↗
10
6X68257070
& 2 STATION MAIN
Panel Switch assembly
Loading…
↗
11
6X68257130
Panel, switch
Loading…
↗
12
6X68259E20
Switch assembly
Loading…
↗
13
6X68271610
Cord switch
Loading…
↗
