Rigging - Remote Control (2014)
SWITCH & PANEL 15

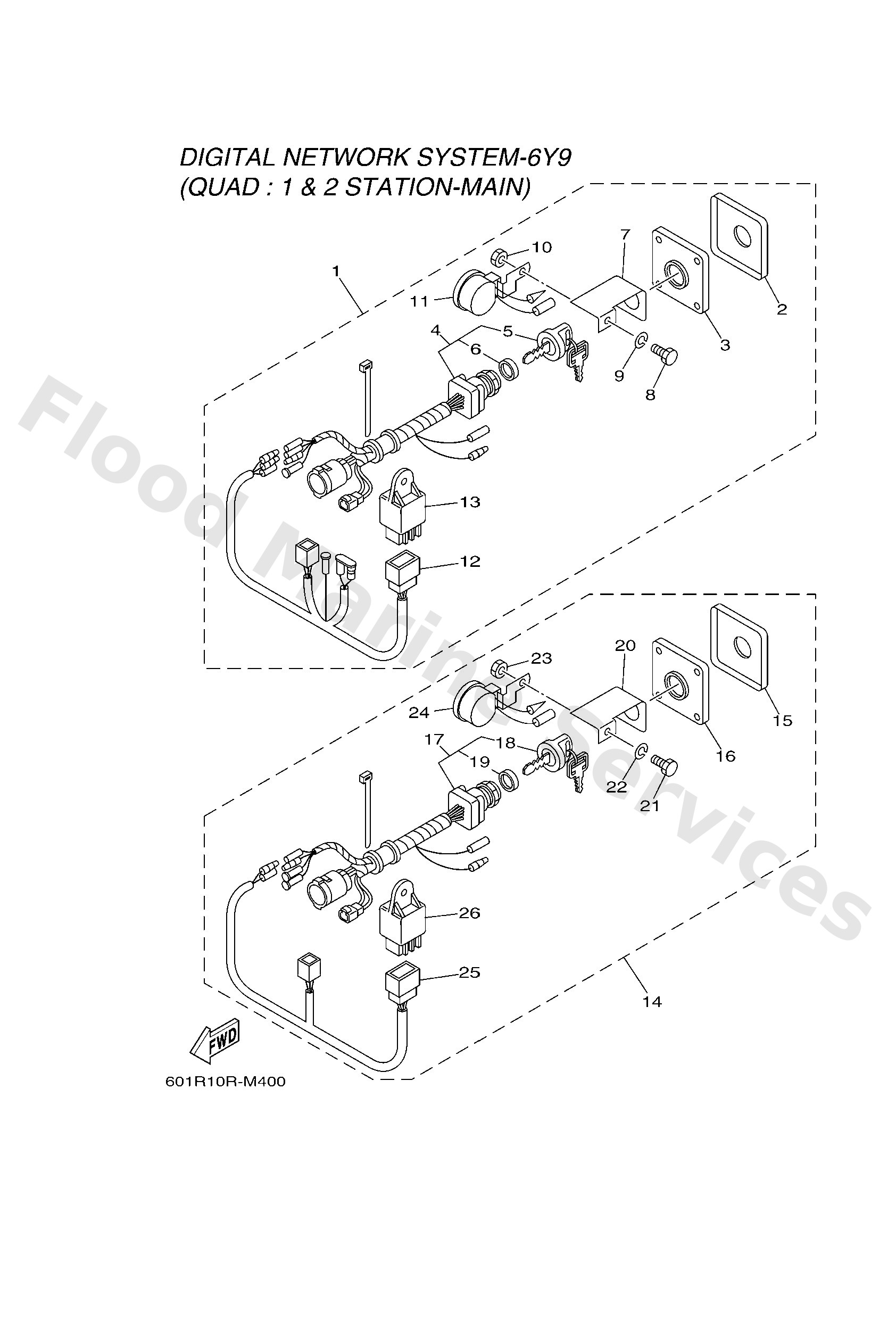

Diagram: SWITCH & PANEL 15
Parts List
Reference
Description
Price
1
6X682570R2
& 2 STATION MAIN
Panel switch assembly
Loading…
↗
2
64D8257100
Panel, switch
Loading…
↗
3
64D8258800
Plate
Loading…
↗
4
6X68251030
Main switch assembly
Loading…
↗
5
6768257701
Cap, key
Loading…
↗
6
7038253200
Cap
Loading…
↗
7
64D8258100
Stay, cord clamp
Loading…
↗
8
9709505012
Bolt, hexagon
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
9530305700
Nut (656)
Loading…
↗
11
6888338312
Buzzer
Loading…
↗
12
6X68250700
Wire, lead
Loading…
↗
13
68V8195000
Relay assembly
Loading…
↗
14
6X682570S2
& 2 STATION MAIN
Panel switch assembly
Loading…
↗
25
6X68250710
Wire, lead
Loading…
↗
