Rigging - Remote Control (2016)
SWITCH & PANEL 16

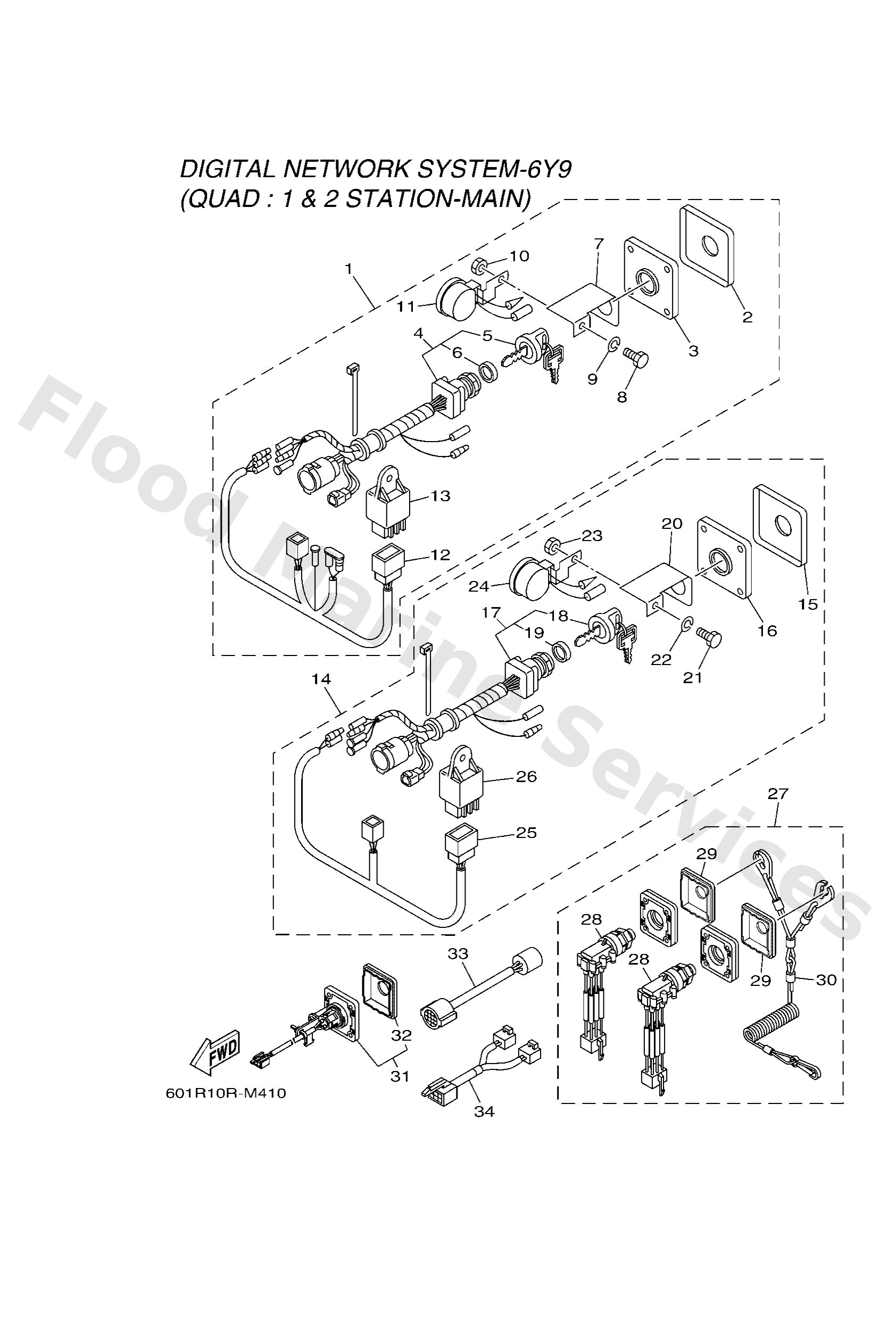

Diagram: SWITCH & PANEL 16
Parts List
Reference
Description
Price
1
6X682570T2
& 2 STATION MAIN
Panel switch assembly
Loading…
↗
2
64D8257100
Panel, switch
Loading…
↗
3
64D8258800
Plate
Loading…
↗
4
6X68251030
Main switch assembly
Loading…
↗
5
6768257701
Cap, key
Loading…
↗
6
7038253200
Cap
Loading…
↗
7
64D8258100
Stay, cord clamp
Loading…
↗
8
9709505012
Bolt, hexagon
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
9530305700
Nut (656)
Loading…
↗
11
6888338312
Buzzer
Loading…
↗
12
6X68250720
Wire, lead
Loading…
↗
13
68V8195000
Relay assembly
Loading…
↗
14
6X682570U2
& 2 STATION MAIN
Panel switch assembly
Loading…
↗
25
6X68250730
Wire, lead
Loading…
↗
27
6X682570V0
STATION MAIN & SUB
Panel switch assembly
Loading…
↗
28
6X68257530
Engine stop switch assembly
Loading…
↗
29
6X68257150
Panel, switch
Loading…
↗
30
6X68255600
Lanyard, stop switch
Loading…
↗
31
6X682570L0
STATION MAIN & SUB
Panel switch assembly
Loading…
↗
32
6X68257170
Panel, switch
Loading…
↗
33
6X68258AL0
Extension, wire harness
Loading…
↗
34
6X68258AU0
Extension, wire harness
Loading…
↗
