Rigging - Remote Control (2025)
SWITCH & PANEL 19

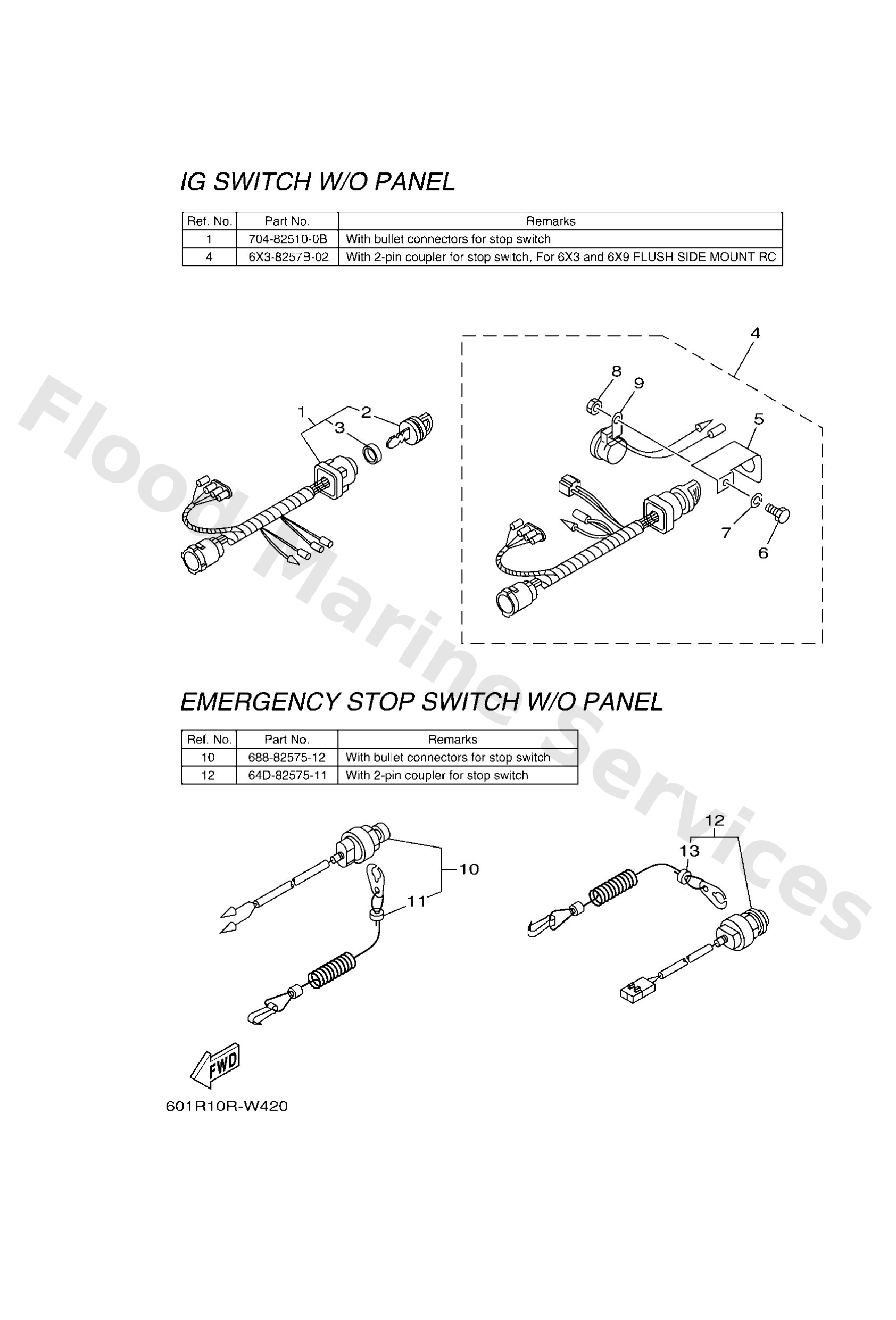

Diagram: SWITCH & PANEL 19
Parts List
Reference
Description
Price
1
704825100B
Main switch assembly
Loading…
↗
2
7038257700
Cap, key
Loading…
↗
3
6K18253200
Cap
Loading…
↗
4
6X38257B02
Panel switch comp.
Loading…
↗
5
64D8258100
Stay, cord clamp
Loading…
↗
6
9730305012
Bolt, hexagon
Loading…
↗
7
9290305100
Ybs67-5 washer, spring
Loading…
↗
8
9530305700
Nut (656)
Loading…
↗
9
6R58338300
Buzzer
Loading…
↗
10
6888257512
Engine stop switch assembly
Loading…
↗
11
6828255600
Lanyard, stop switch
Loading…
↗
12
64D8257511
Engine Stop Switch assembly
Loading…
↗
