Rigging - Remote Control (2021)
SWITCH & PANEL 2

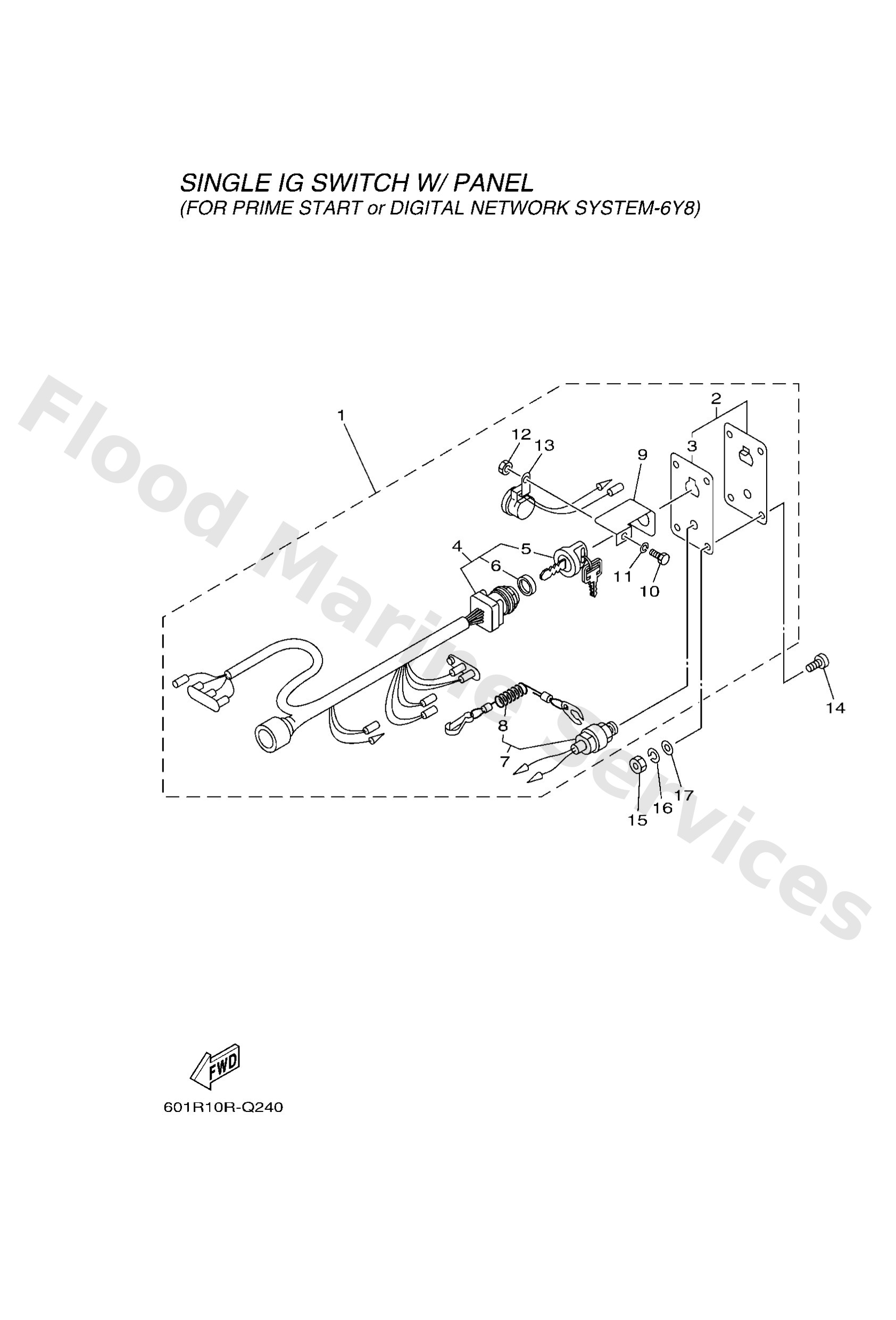

Diagram: SWITCH & PANEL 2
Parts List
Reference
Description
Price
1
6R5825700A
WITHOUT CHOKE SW.
Panel switch assembly
Loading…
↗
2
7048257102
Panel, switch
Loading…
↗
3
6R58258801
Plate
Loading…
↗
4
6R58251004
Main switch assembly
Loading…
↗
5
6768257701
Cap, key
Loading…
↗
6
7038253200
Cap
Loading…
↗
7
6888257502
Engine stop switch assembly
Loading…
↗
8
6828255600
Lanyard, stop switch
Loading…
↗
9
64D8258100
Stay, cord clamp
Loading…
↗
10
9730305012
Bolt, hexagon
Loading…
↗
11
9290305100
Ybs67-5 washer, spring
Loading…
↗
12
9530305700
Nut (656)
Loading…
↗
13
6R58338300
Buzzer
Loading…
↗
14
9014905M05
Screw(6k0)
Loading…
↗
15
9530305600
Nut, hexagon (663)
Loading…
↗
17
9290305600
Washer, plain (646)
Loading…
↗
