Helm Master EX (2021)
SWITCH & PANEL 2 (EKS, TWIN)

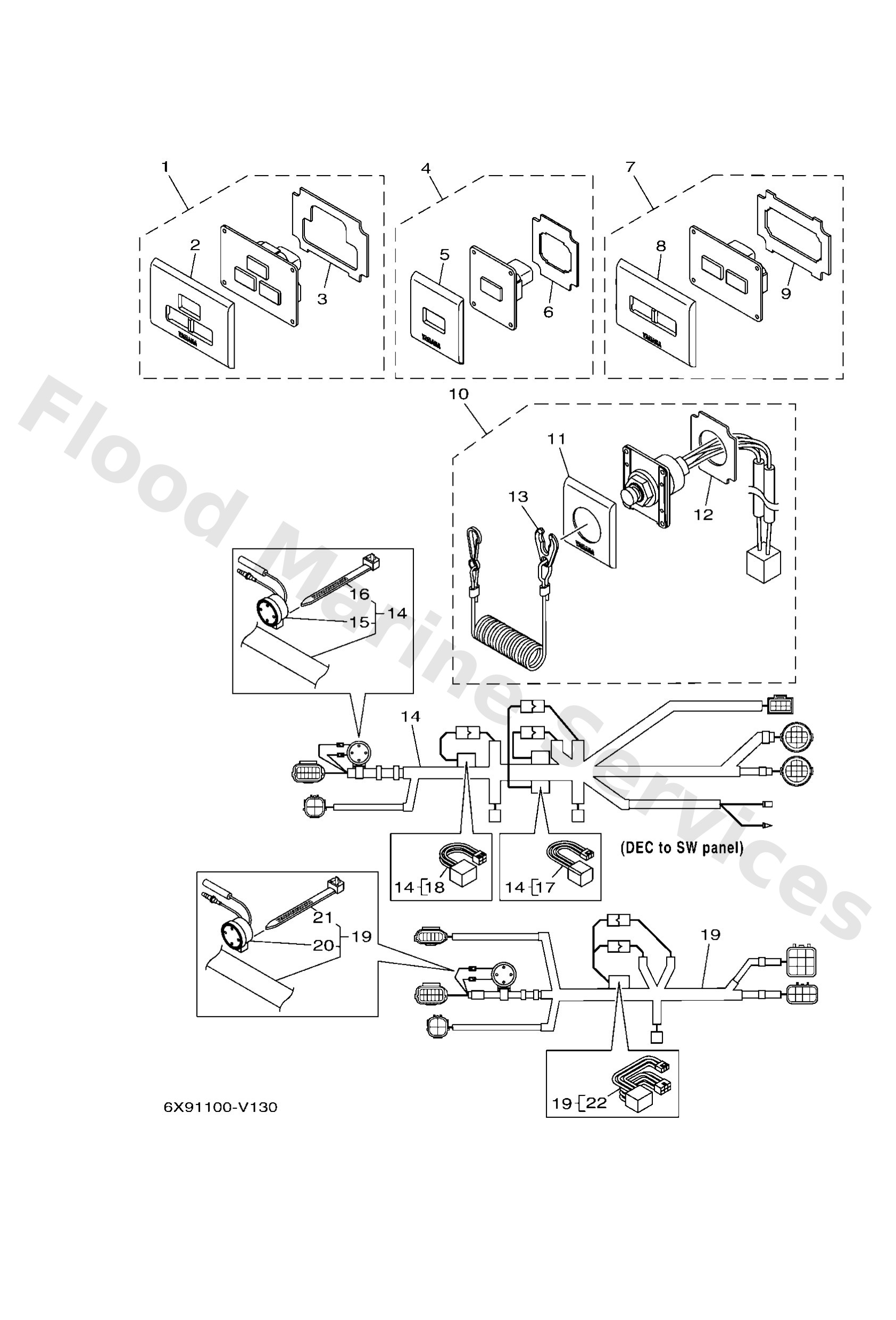

Diagram: SWITCH & PANEL 2 (EKS, TWIN)
Parts List
Reference
Description
Price
1
6X98257010
MAIN STATION
Panel switch assembly
Loading…
↗
2
6X98257110
Panel, switch
Loading…
↗
3
6X92248010
Seal assembly
Loading…
↗
4
6X982570B0
2ND STATION
Power sw start/stop 2nd st
Loading…
↗
5
6X98257120
Panel, switch
Loading…
↗
6
6X92248020
Seal assembly
Loading…
↗
7
6X98257030
2ND STATION
Twin panel p+s start stop
Loading…
↗
8
6X98257130
Panel, switch
Loading…
↗
9
6X92248030
Seal assembly
Loading…
↗
10
6X98257080
MAIN STATION & 2ND STATION
Panel switch assembly
Loading…
↗
11
6X98257170
Panel, switch
Loading…
↗
12
6X92248070
Seal assembly
Loading…
↗
13
6828255600
Lanyard, stop switch
Loading…
↗
14
6X98271631
MAIN STATION
Cord switch
Loading…
↗
15
7038338311
Buzzer
Loading…
↗
16
9046513M39
Clamp(6e8)
Loading…
↗
17
6X98195000
Relay assembly
Loading…
↗
18
6X68198000
Diode assembly
Loading…
↗
19
6X98271671
2ND STATION
Eks harness
Loading…
↗
22
6X68198010
Diode assembly
Loading…
↗
