Rigging - Remote Control (2020)
SWITCH & PANEL 3

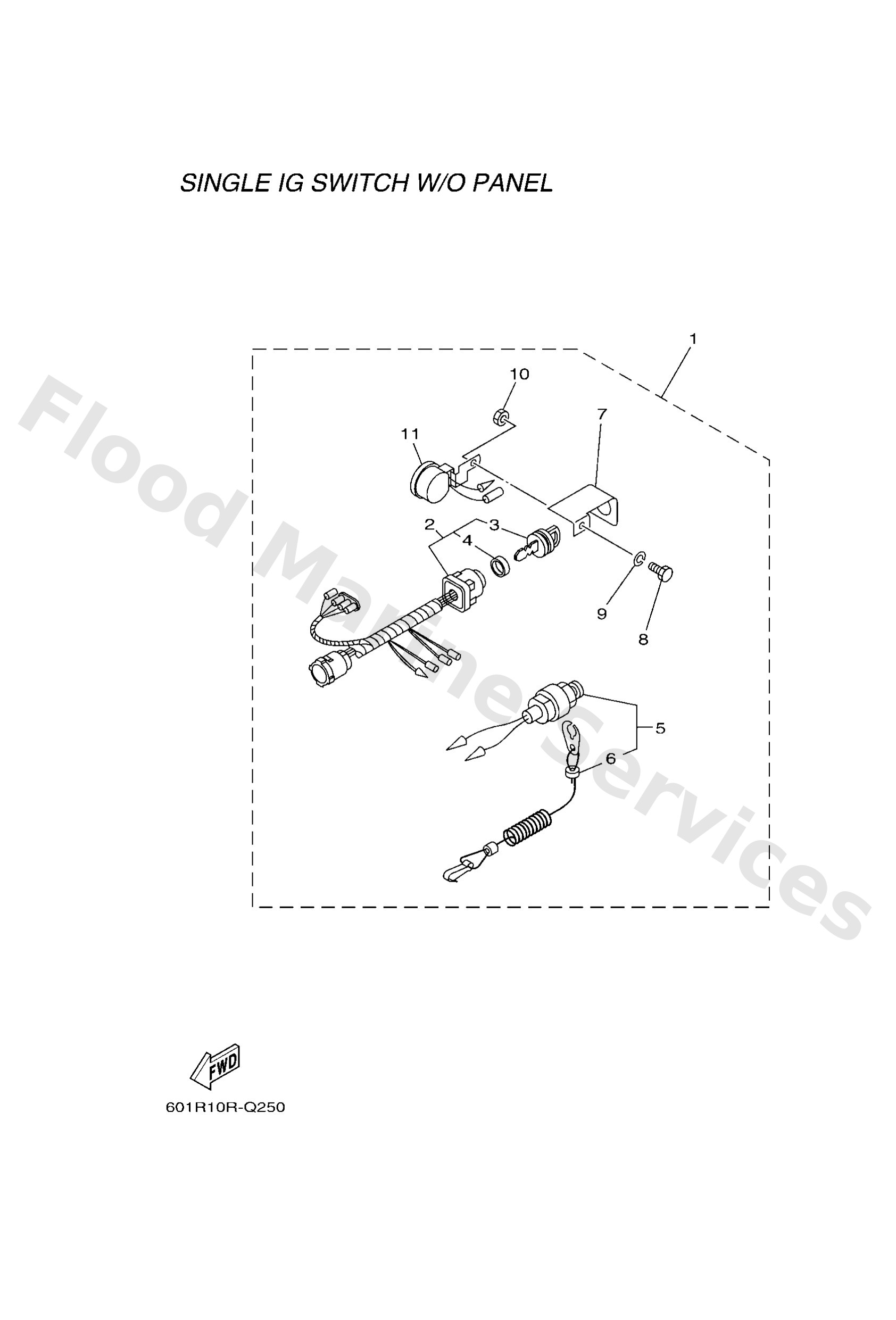

Diagram: SWITCH & PANEL 3
Parts List
Reference
Description
Price
1
7048257C03
WITH CHOKE SW.
-
Loading…
↗
2
704825100A
Main switch assembly
Loading…
↗
3
7038257700
Cap, key
Loading…
↗
4
6K18253200
Cap
Loading…
↗
5
6888257502
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
64D8258100
Stay, cord clamp
Loading…
↗
8
9730305012
Bolt, hexagon
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
9530305700
Nut (656)
Loading…
↗
11
6888338312
Buzzer
Loading…
↗
