Rigging - Remote Control (2010)
SWITCH & PANEL 4

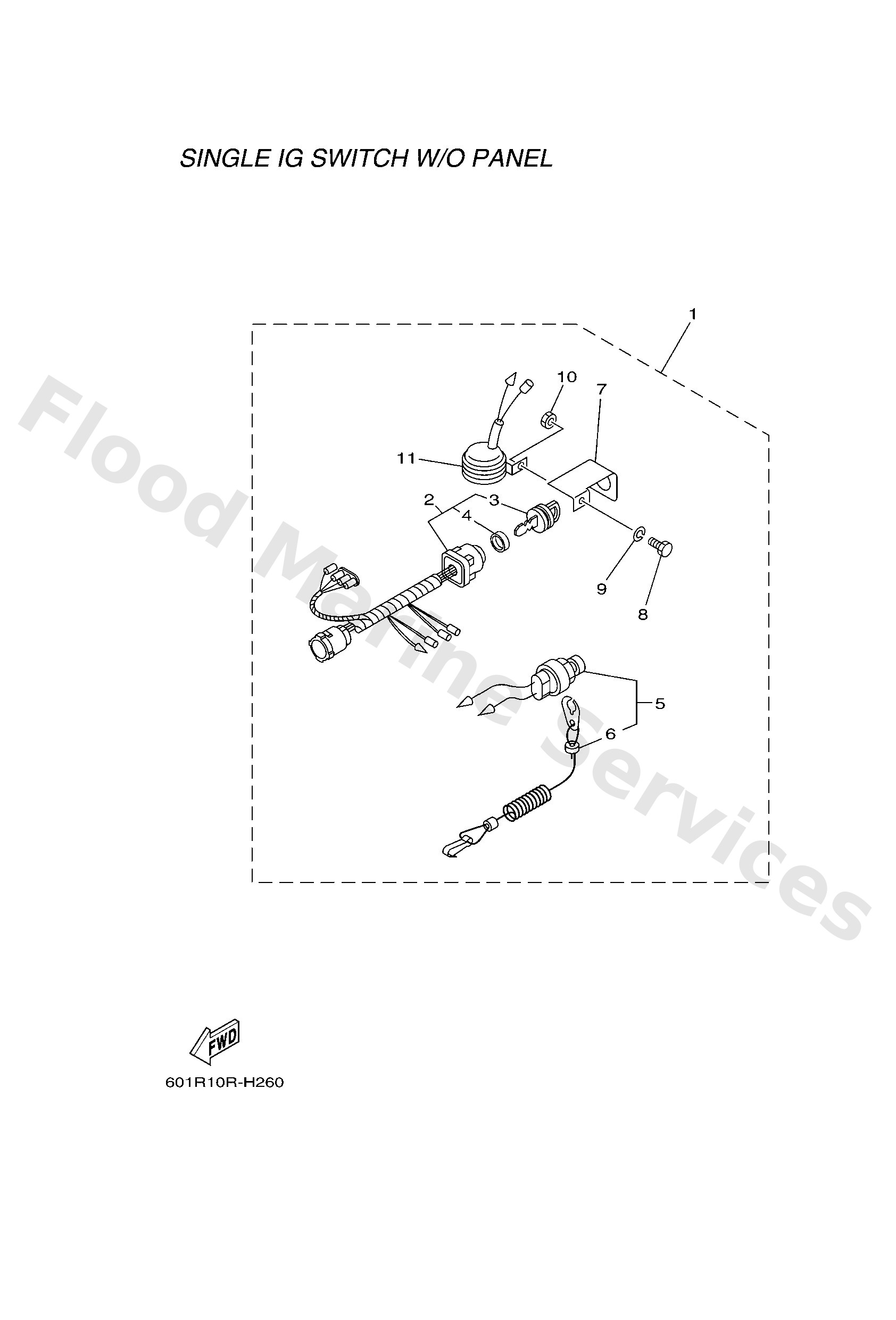

Diagram: SWITCH & PANEL 4
Parts List
Reference
Description
Price
1
7048257C00
WITH CHOKE SW.
Panel switch comp. 2
Loading…
↗
2
7048251007
Main switch assembly
Loading…
↗
3
7038257700
Cap, key
Loading…
↗
4
6K18253200
Cap
Loading…
↗
5
6888257501
Engine stop switch assembly
Loading…
↗
6
6828255600
Lanyard, stop switch
Loading…
↗
7
64D8258100
Stay, cord clamp
Loading…
↗
8
9730305012
Bolt, hexagon
Loading…
↗
9
9290305100
Ybs67-5 washer, spring
Loading…
↗
10
9530305700
Nut (656)
Loading…
↗
11
6888338311
Buzzer
Loading…
↗
