Helm Master EX (2021)
SWITCH & PANEL 6 (EKS,KEY/REC)

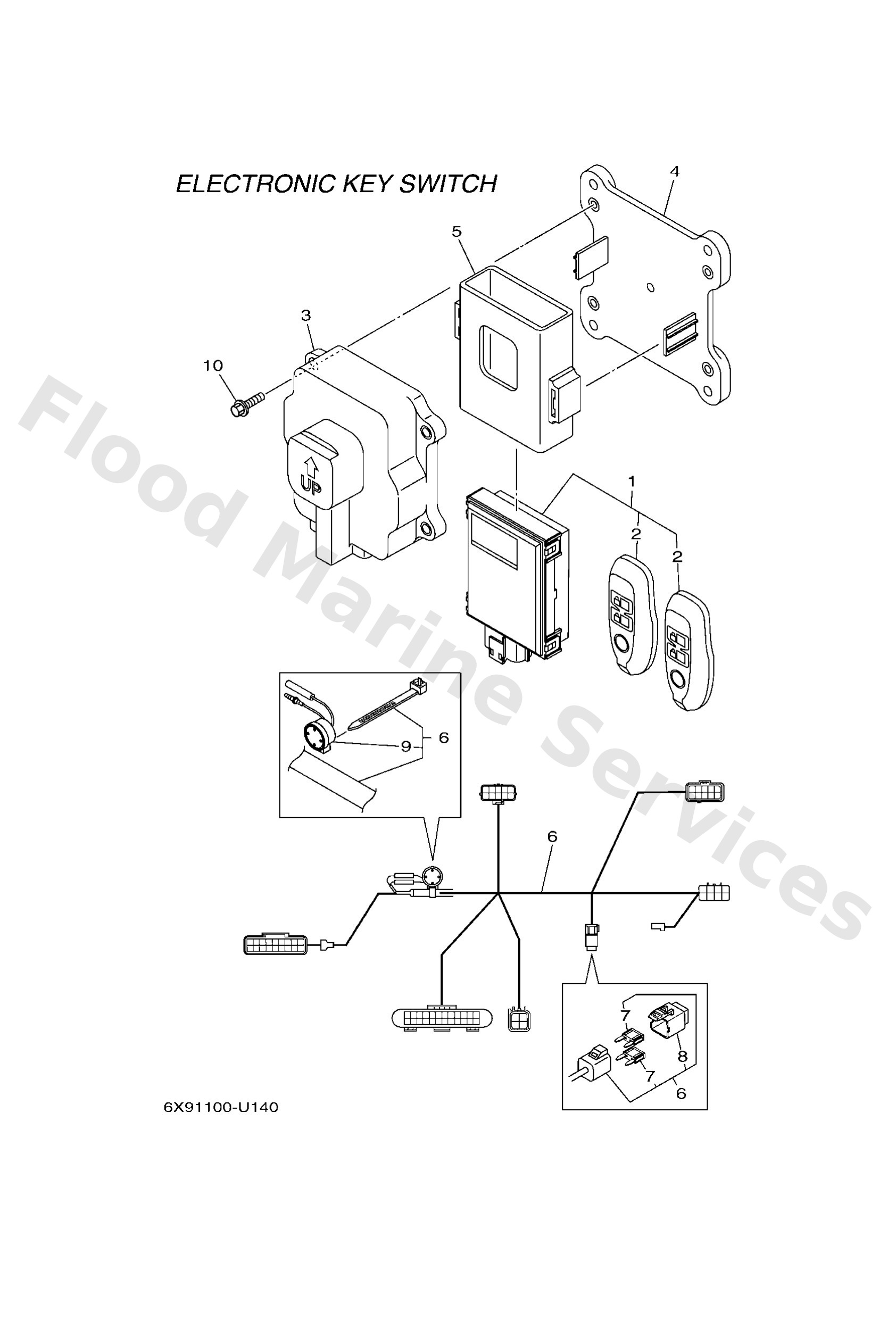

Diagram: SWITCH & PANEL 6 (EKS,KEY/REC)
Parts List
Reference
Description
Price
1
6X98626002
UR RADIO FREQUENCY 433MHz
Remote Control Unit assembly
Loading…
↗
1
6X98626012
UR RADIO FREQUENCY 315MHz
Remote control unit assembly
Loading…
↗
2
6X98626100
FOR 6X9-86260-02
Xmtr. comp.
Loading…
↗
2
6X98626110
FOR 6X9-86260-12
Xmtr. Comp.
Loading…
↗
3
6X98626700
Case complete 1
Loading…
↗
4
6X98194800
Bracket
Loading…
↗
5
6X98554601
Band
Loading…
↗
6
6X98250901
Wire, sub lead
Loading…
↗
7
5JJ8215190
Fuse (5a)
Loading…
↗
8
69J8215B00
Cap (brown)
Loading…
↗
9
7038338311
Buzzer
Loading…
↗
10
9588006016
Bolt, flange(jl8)
Loading…
↗
