25BMH (2002)
SWITCH. PANEL

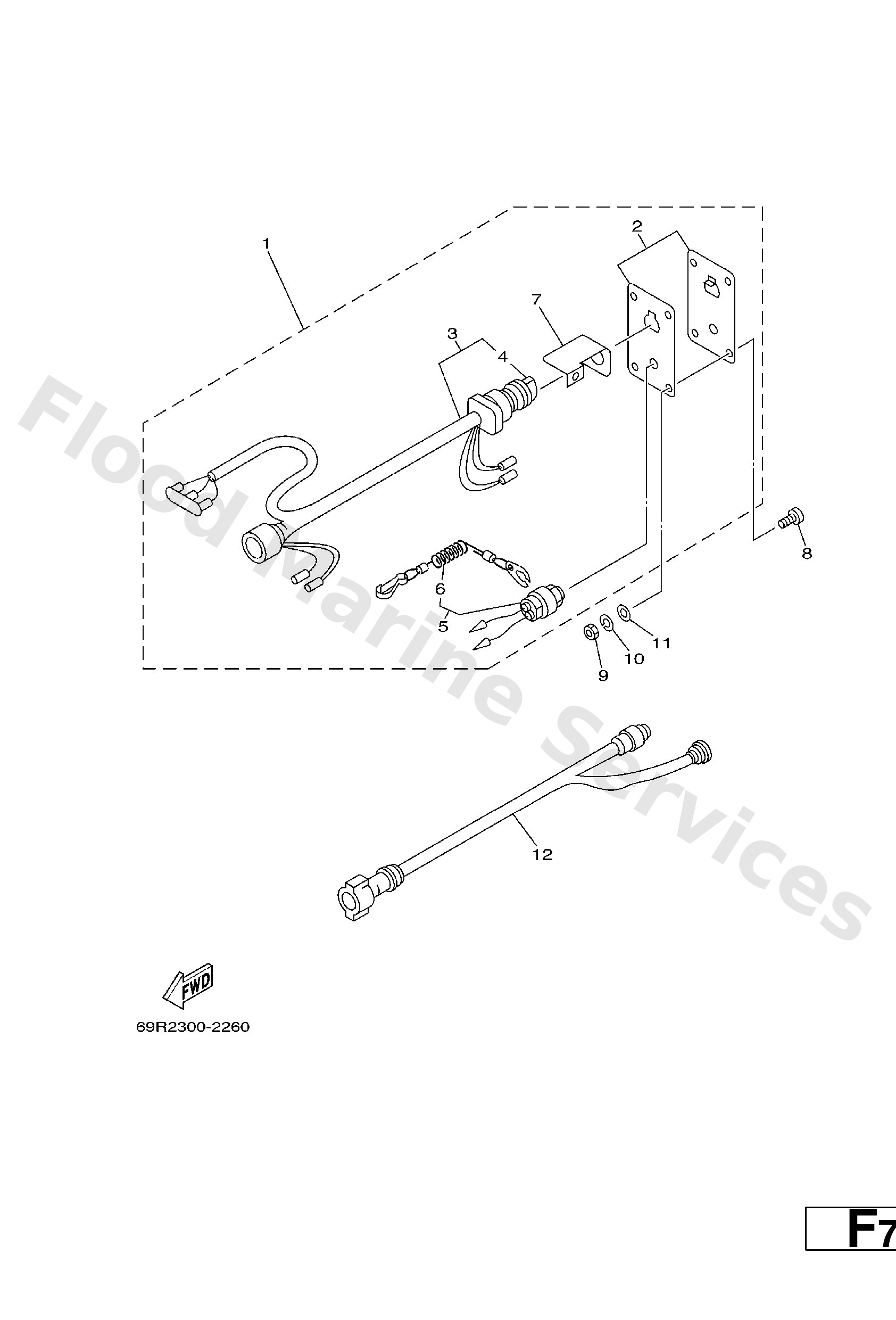

Diagram: SWITCH. PANEL
Parts List
Reference
Description
Price
1
689825701A
AP
Panel switch assembly
Loading…
↗
2
7048257101
Panel, switch
Loading…
↗
3
6898251004
Main switch assembly
Loading…
↗
4
703--82577--00
Cap, key
Loading…
↗
5
688--82575--01
Engine stop switch assembly
Loading…
↗
6
682--82556--00
Lanyard, stop switch
Loading…
↗
7
64D--82581--00
Stay, cord clamp
Loading…
↗
8
90149--05M05
AP
Screw(6k0)
Loading…
↗
9
95380--05600
AP
Nut, hexagon (663)
Loading…
↗
10
92990--05100
AP
Ybs67-5 washer, spring
Loading…
↗
11
92990--05600
AP
Washer, plain (646)
Loading…
↗
12
688--82586--50
AP L)5M(7P)
Extension, wire harness
Loading…
↗
