F50AEHT (2002)
SWITCH. PANEL

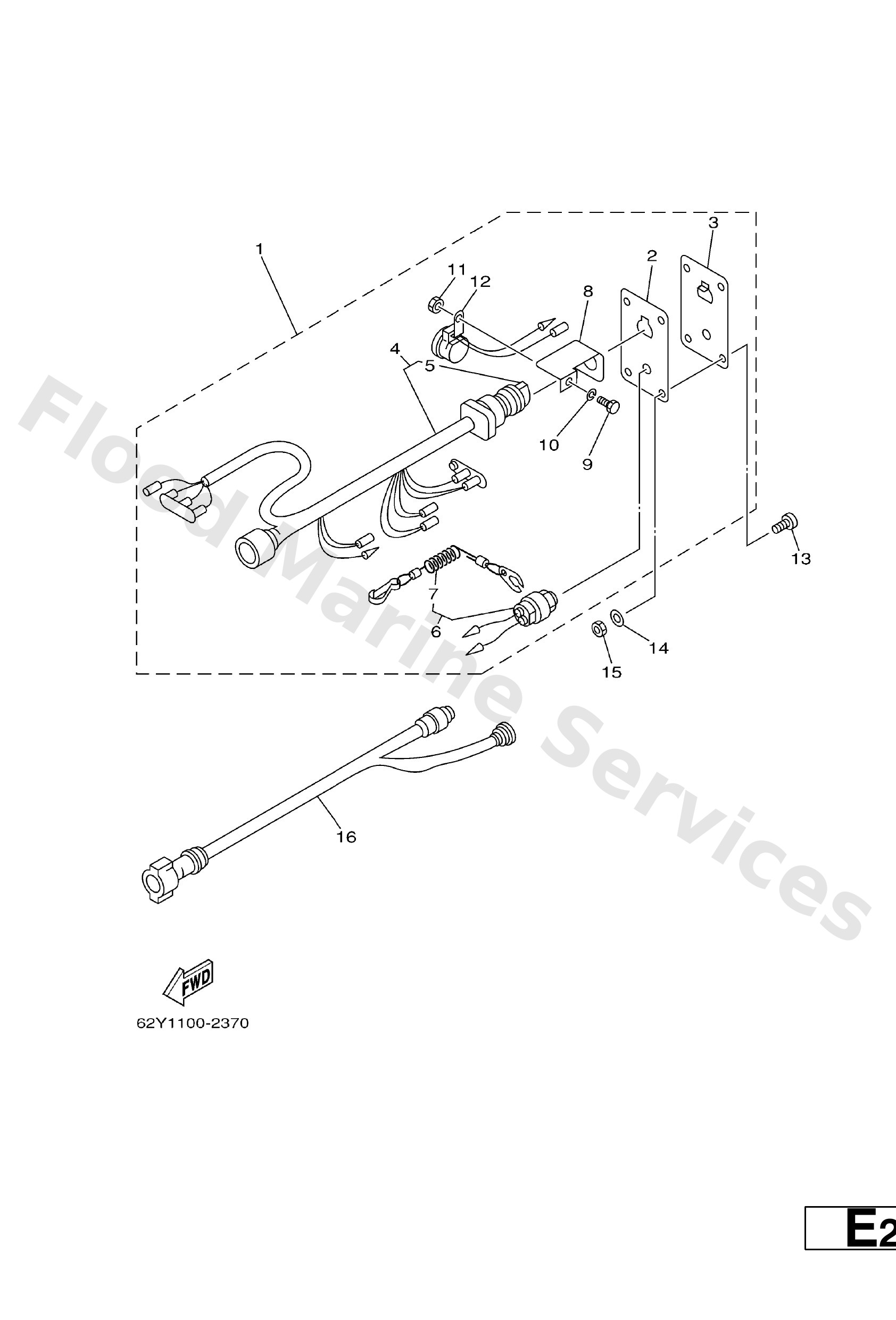

Diagram: SWITCH. PANEL
Parts List
Reference
Description
Price
1
6R58257004
AP
Panel switch assembly
Loading…
↗
2
6R58258801
Plate
Loading…
↗
3
6R58257101
Panel, switch
Loading…
↗
4
6R58251002
Main switch assembly
Loading…
↗
5
6768257700
Cap, key
Loading…
↗
6
6888257501
Engine stop switch assembly
Loading…
↗
7
6828255600
Lanyard, stop switch
Loading…
↗
8
64D8258100
Stay, cord clamp
Loading…
↗
9
9730305012
Bolt, hexagon
Loading…
↗
10
9290305100
Ybs67-5 washer, spring
Loading…
↗
11
9530305700
Nut (656)
Loading…
↗
12
6R58338300
Buzzer
Loading…
↗
13
9014905M05
AP
Screw(6k0)
Loading…
↗
14
9299005200
AP
Ybs66-5 washer, plain
Loading…
↗
15
9538005600
AP
Nut, hexagon (663)
Loading…
↗
16
6888258A50
AP
10p main harness mec 5m (16ft)
Loading…
↗
