Yamaha Outboard Parts - SWITCH. PANEL - FT50CEHD (2003) | Flood Marine

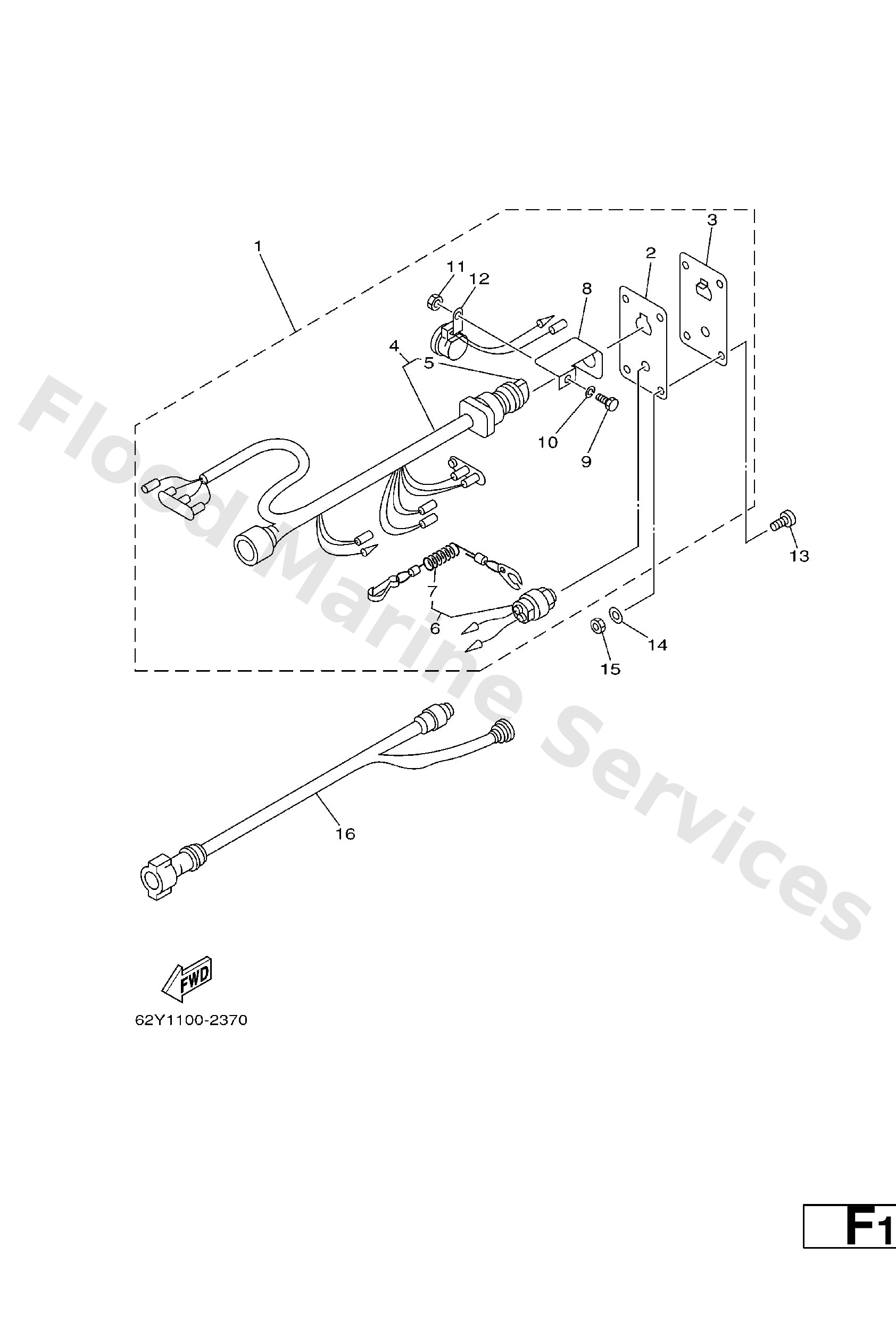

Diagram: SWITCH. PANEL

Diagram

Parts List

Reference
Description
Price


1
6R5−82570−04 AP FOR CARIB
Panel switch assembly
Loading…

↗
2
6R5−82588−01
Plate
Loading…

↗
3
6R5−82571−01
Panel, switch
Loading…

↗
4
6R5−82510−02
Main switch assembly
Loading…

↗
5
676−82577−00
Cap, key
Loading…

↗
6
688−82575−01
Engine stop switch assembly
Loading…

↗
7
682−82556−00
Lanyard, stop switch
Loading…

↗
8
64D−82581−00
Stay, cord clamp
Loading…

↗
9
97303−05012
Bolt, hexagon
Loading…

↗
10
92903−05100
Ybs67-5 washer, spring
Loading…

↗
11
95303−05700
Nut (656)
Loading…

↗
12
6R5−83383−00
Buzzer
Loading…

↗
13
90149−05M05 AP FOR CARIB
Screw(6k0)
Loading…

↗
14
92990−05200 AP FOR CARIB
Ybs66-5 washer, plain
Loading…

↗
15
95380−05600 AP FOR CARIB
Nut, hexagon (663)
Loading…

↗
16
688−8258A−50 AP FOR CARIB
10p main harness mec 5m (16ft)
Loading…

↗
