L250BETO (2003)
SWITCH. PANEL

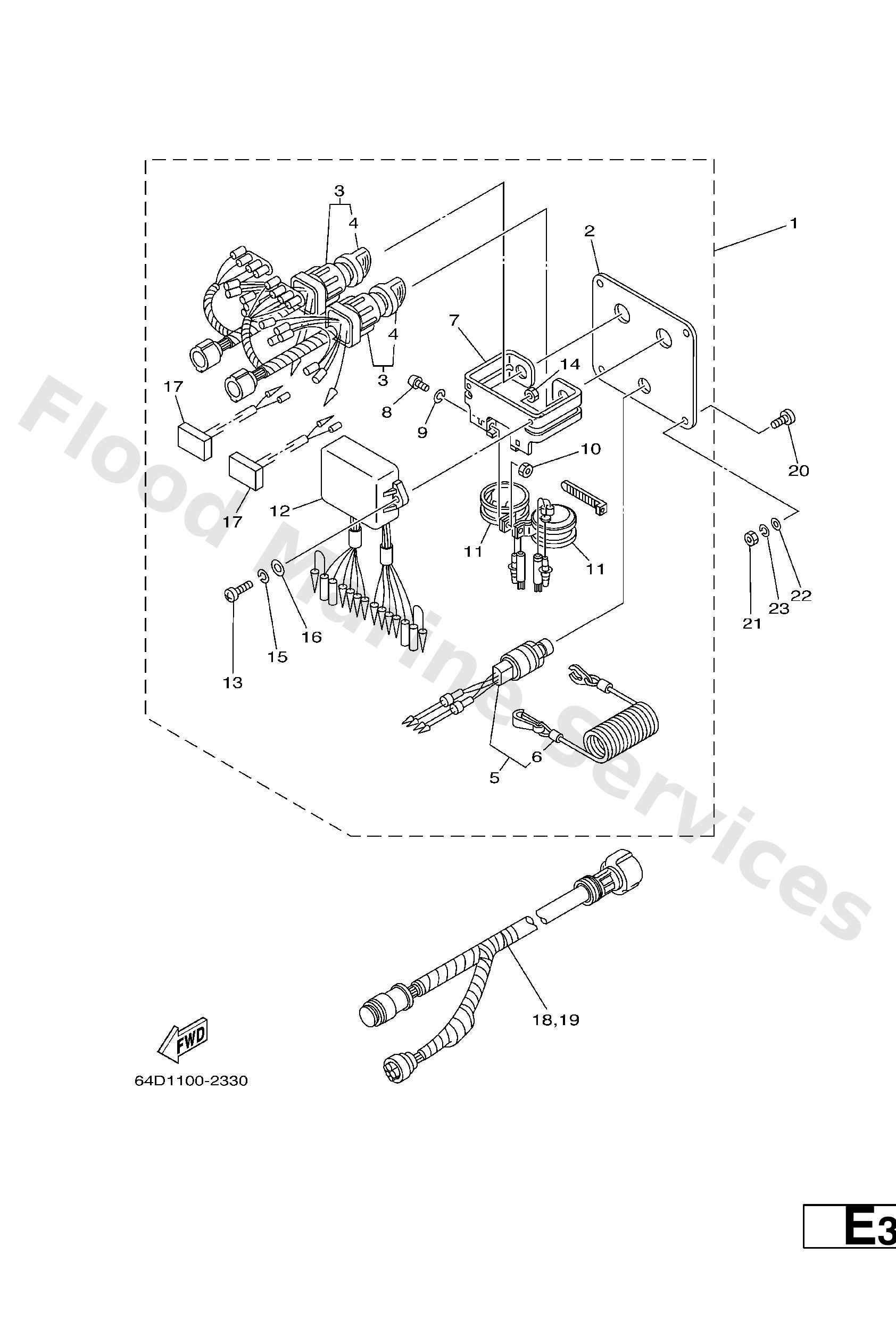

Diagram: SWITCH. PANEL
Parts List
Reference
Description
Price
1
6K1−82570−07
AP
Panel switch assembly
Loading…
↗
2
6K1−82571−01
Plate, panel switch
Loading…
↗
3
6K1−82510−06
Main switch assembly
Loading…
↗
4
703−82577−00
Cap, key
Loading…
↗
5
6K1−82575−00
Engine stop switch assembly
Loading…
↗
6
682−82556−00
Lanyard, stop switch
Loading…
↗
7
6K1−83614−01
Bracket
Loading…
↗
8
98980−05010
Screw, bind(6k1)
Loading…
↗
23
92990−05100
AP
Ybs67-5 washer, spring
Loading…
↗
21
95380−05600
AP
Nut, hexagon (663)
Loading…
↗
11
688−83383−11
Buzzer
Loading…
↗
12
6K1−85830−01
Control unit assembly
Loading…
↗
13
98980−06020
Screw, bind (j17)
Loading…
↗
14
95380−06600
Nut(661)
Loading…
↗
15
92990−06100
Washer(6a1)
Loading…
↗
16
92990−06600
Washer, plain (646)
Loading…
↗
17
6K1−81980−00
Diode assembly
Loading…
↗
18
6K1−8258A−40
AP
Extension, wire harness
Loading…
↗
19
61B−8258A−01
AP
Extension, wire harness
Loading…
↗
20
90149−05M05
AP
Screw(6k0)
Loading…
↗
22
92990−05600
AP
Washer, plain (646)
Loading…
↗
