Z175GETO (2002)
SWITCH. PANEL

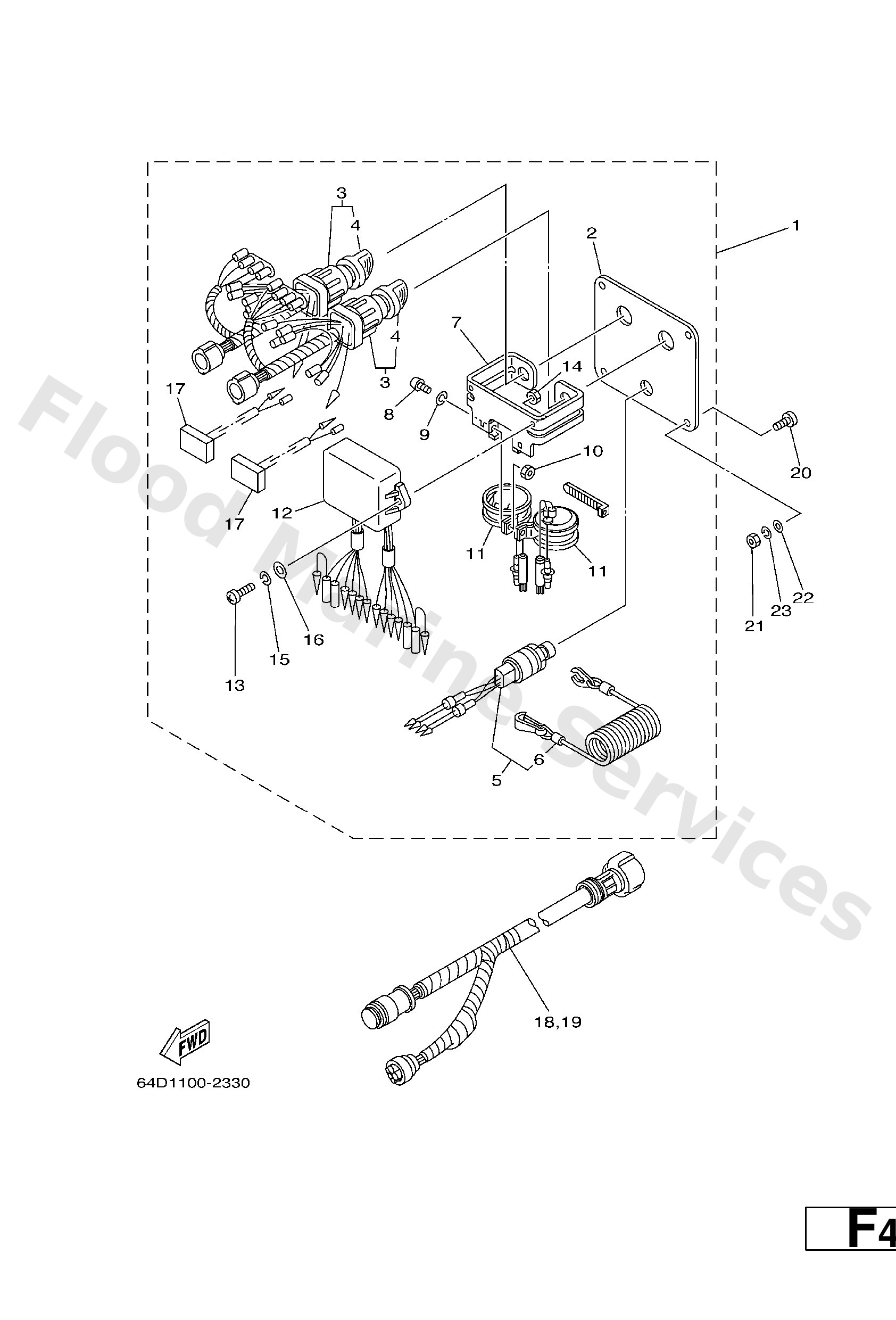

Diagram: SWITCH. PANEL
Parts List
Reference
Description
Price
1
6K1--82570--07
AP
Panel switch assembly
Loading…
↗
2
6K1--82571--01
Plate, panel switch
Loading…
↗
3
6K1--82510--06
Main switch assembly
Loading…
↗
4
703--82577--00
Cap, key
Loading…
↗
5
6K1--82575--00
Engine stop switch assembly
Loading…
↗
6
682--82556--00
Lanyard, stop switch
Loading…
↗
7
6K1--83614--01
Bracket
Loading…
↗
8
98980--05010
Screw, bind(6k1)
Loading…
↗
23
92990--05100
AP
Ybs67-5 washer, spring
Loading…
↗
21
95380--05600
AP
Nut, hexagon (663)
Loading…
↗
11
688--83383--11
Buzzer
Loading…
↗
12
6K1--85830--01
Control unit assembly
Loading…
↗
13
98980--06020
Screw, bind (j17)
Loading…
↗
14
95380--06600
Nut(661)
Loading…
↗
15
92990--06100
Washer(6a1)
Loading…
↗
16
92990--06600
Washer, plain (646)
Loading…
↗
17
6K1--81980--00
Diode assembly
Loading…
↗
18
6K1--8258A--40
AP
Extension, wire harness
Loading…
↗
19
61B--8258A--01
AP
Extension, wire harness
Loading…
↗
20
90149--05M05
AP
Screw(6k0)
Loading…
↗
22
92990--05600
AP
Washer, plain (646)
Loading…
↗
